Danfoss VLT HVAC Drive FC 102 - Page 90

130BF374.10
287 (11.3)
253 (10.0)
0.0
0.0
339 (13.4)
308 (12.1)
466 (18.3)
44 (1.8)
244 (9.6)
180 (7.1)
287 (11.3)
0.0
339 (13.4) 466 (18.3)
1
2
3
1 Brake terminals 3 Ground bar
2 Motor terminals – –

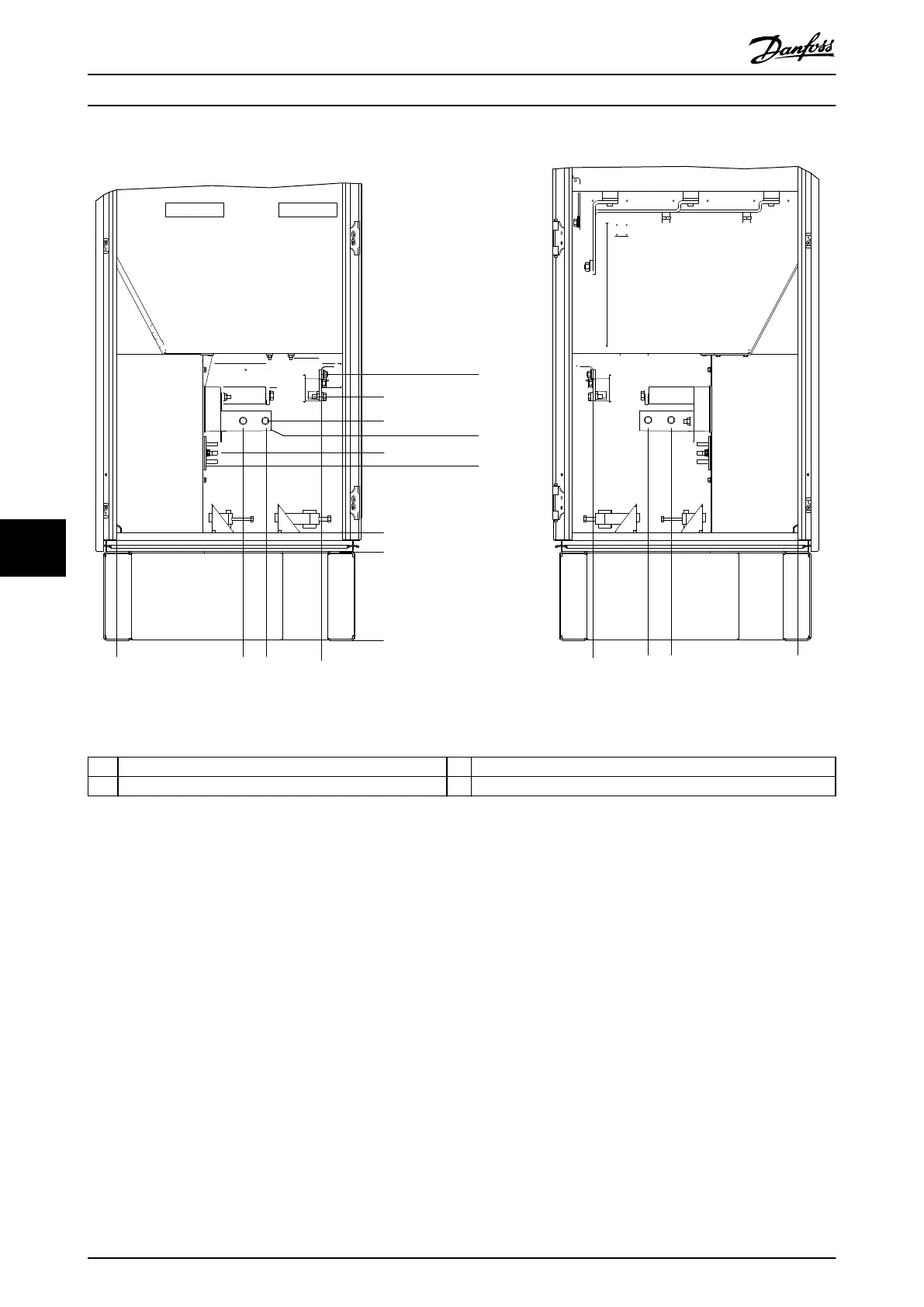

Illustration 8.24 Terminal Dimensions for F1/F3 Inverter Cabinet, Side View
