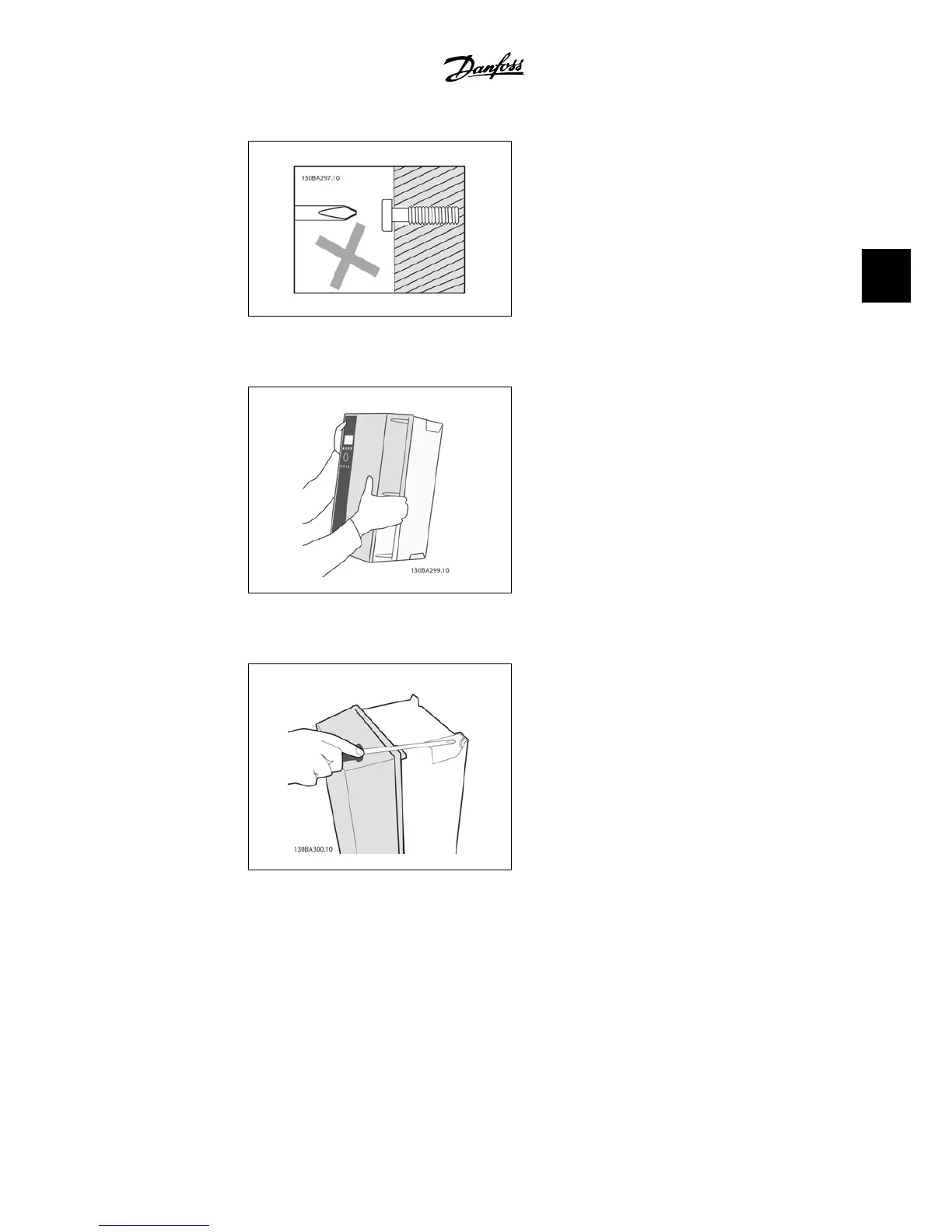

Illustration 3.12: Incorrect mounting of screws
Step 2B: Do not tighten screws completely.
Illustration 3.13: Mounting of unit.
Step 3: Lift the unit onto the screws.
Illustration 3.14: Tightening of screws
Step 4: Tighten the screws completely.
VLT
®
HVAC Drive Instruction Manual 3. Mechanical installation
MG.11.A4.22 - VLT
®
is a registered Danfoss trademark
23
