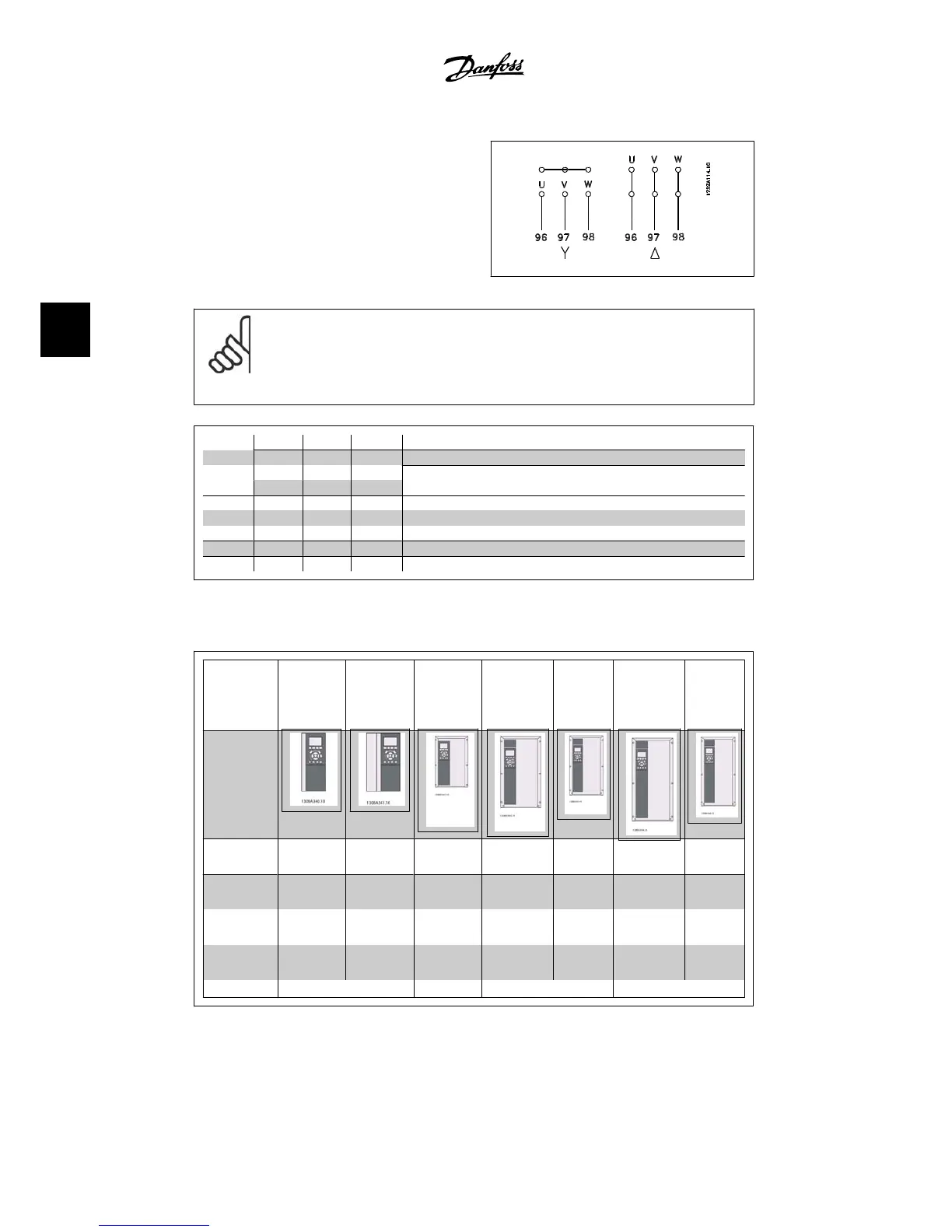

Danfoss VLT HVAC Drive - 4.1.10. Motor wiring overview

All types of three-phase asynchronous stand-
ard motors can be connected to the adjustable
frequency drive. Normally, small motors are
star-connected (230/400 V, D/Y). Large mo-
tors are delta-connected (400/690 V, D/Y).
Refer to the motor name plate for the correct
connection mode and voltage.
Illustration 4.10: Terminals for motor connection
NOTE
In motors without phase insulation paper or other insulation reinforcement suitable
for operation with a voltage supply (such as an adjustable frequency drive), fit a
sine-wave filter on the output of the adjustable frequency drive. (Motors that comply
with IEC 60034-17 do not require a sine-wave filter).
No. 96 97 98 Motor voltage 0-100% of line voltage.
U V W 3 cables out of motor
U1 V1 W1
6 cables out of motor, Delta-connected
W2 U2 V2
U1 V1 W1 6 cables out of motor, Star-connected
U2, V2, W2 to be interconnected separately
(optional terminal block)
No. 99 Ground connection
PE
Table 4.6: 3 and 6 cable motor connection.
4.1.10. Motor wiring overview
Enclo-
sure:
A2
(IP 20/IP
21)
A3
(IP 20/IP
21)
A5
(IP 55/IP
66)
B1
(IP 21/IP
55/
IP 66)
B2
(IP 21/IP
55/
IP 66)
C1
(IP 21/IP
55/
IP 66)
C2
(IP 21/IP
55/
IP 66)
Motor
size:
200-240 V
1.1-3.0
kW
3.7
kW
1.1-3.7
kW
5.5-11
kW
15
kW
18.5-30
kW
37-45
kW
380-480 V
1.1-4.0
kW
5.5-7.5
kW
1.1-7.5
kW
11-18.5
kW
22-30
kW
37-55
kW
75-90
kW
525-600 V
2.2-4.0
kW
5.5-7.5
kW
Goto: 4.1.11 4.1.12 4.1.13 4.1.14
Table 4.7: Motor wiring table.
