6.1.5. Parameter Selection
In main menu mode, the parameters are divi-
ded into groups. Select a parameter group
using the navigation keys.
The following parameter groups are accessi-
ble:
Group no. Parameter group:
0 Operation/Display
1Load/Motor
2 Brakes
3 References/Ramps
4 Limits/Warnings
5Digital In/Out
6 Analog In/Out
8 Comm. and Options
9 Profibus
10 CAN ser. com. bus
11 LonWorks
13 Smart Logic
14 Special Functions
15 Drive Information
16 Data Readouts
18 Data Readouts 2
20 Drive Closed-loop
21 Ext. Closed-loop
22 Application Functions
23 Time-based Functions
25 Cascade Controller
26 Analog I/O Option MCB 109
Table 6.4: Parameter groups.
After selecting a parameter group, choose a
parameter using the navigation keys.
The middle section on the GLCP display shows
the parameter number and name, as well as
the selected parameter value.
1

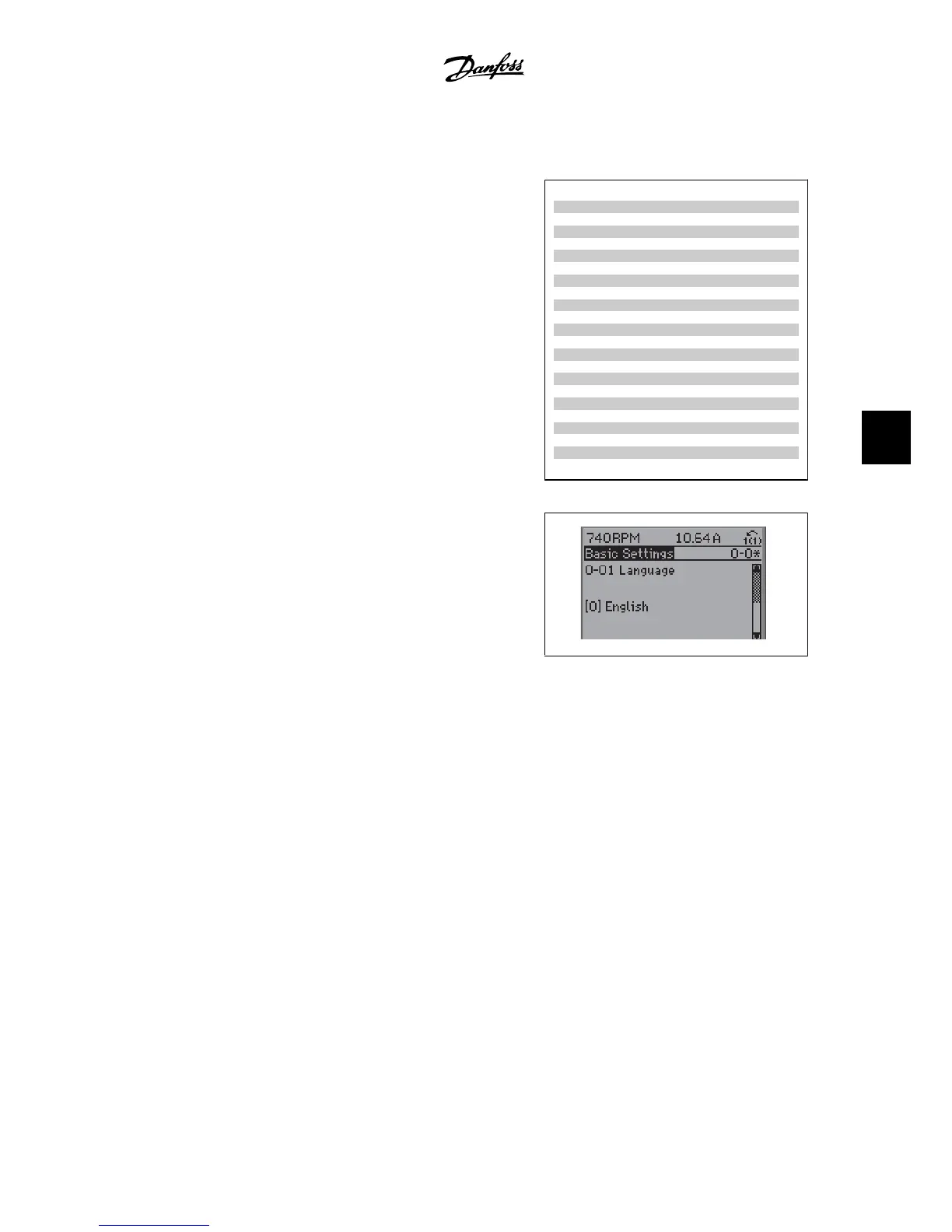

Illustration 6.10: Display example.
6.1.6. Changing Data
1. Press the [Quick Menu] or [Main Menu] key.
2. Use the [ ] and [ ] keys to find the parameter group to edit.▲▼
3. Use the [ ] and [ ] keys to find the parameter to edit.▲▼
4. Press the [OK] key.
5. Use the [ ] and [ ] keys to select the correct parameter setting. Or, to move to digits▲▼
within a number, use the keys. The cursor indicates the selected digit to be changed.
The [ ] key increases the value, the [ ] key decreases the value.▲▼
6. Press the [Cancel] key to disregard the change, or press the [OK] key to accept the
change and enter the new setting.
VLT
®
HVAC Drive Instruction Manual
6. How to program the adjustable frequency
drive
MG.11.A4.22 - VLT
®
is a registered Danfoss trademark
97
