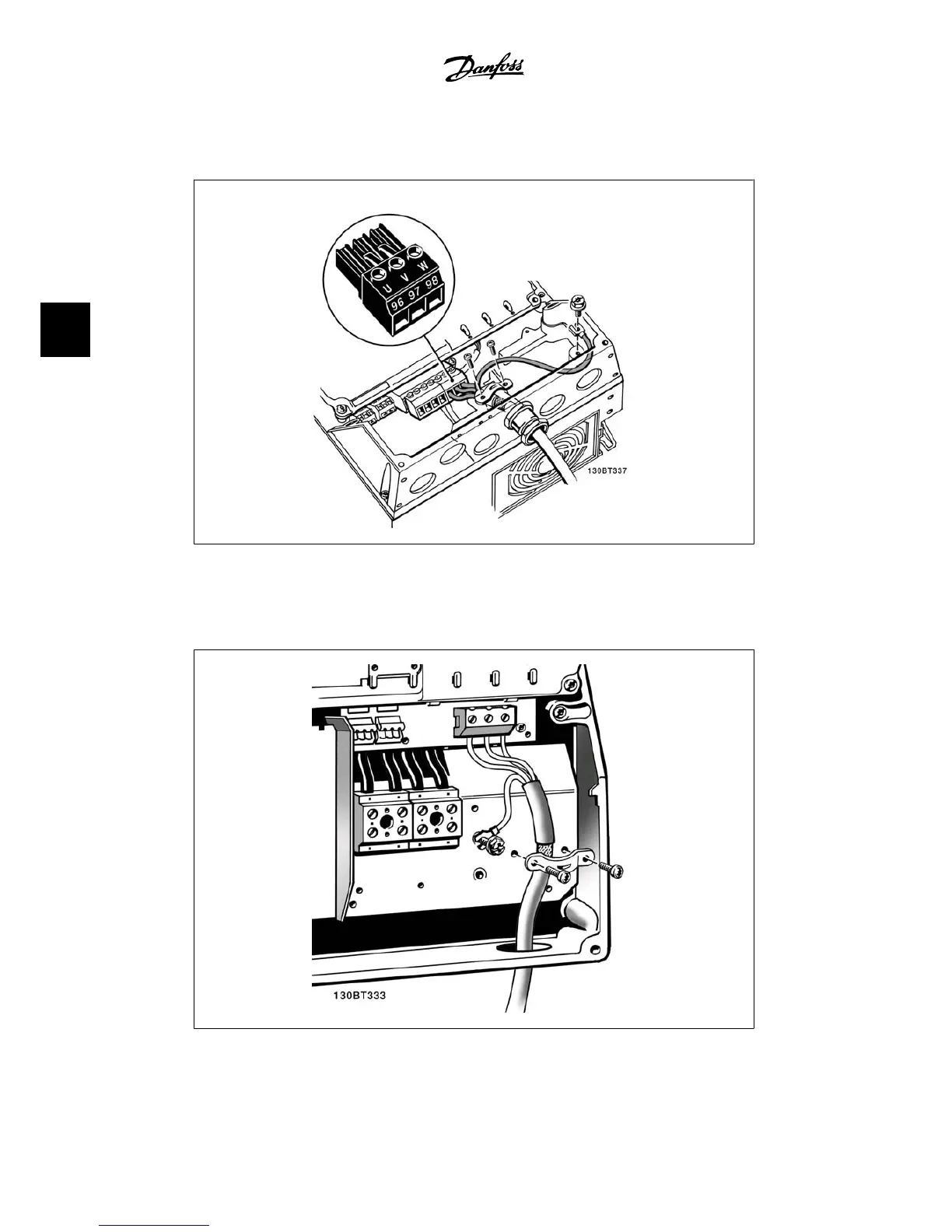

4.1.12. Motor connection for A5
Illustration 4.13: First, terminate the motor ground, then insert the motor u, v and w wires in the terminal
and tighten them. Please ensure that the outer insulation of the motor cable is removed under the EMC
clamp.
4.1.13. Motor connection for B1 and B2
Illustration 4.14: First terminate the motor ground, then place motor U, V and W wires in the terminal and
tighten them. Please ensure that the outer insulation of the motor cable is removed under the EMC clamp.
4. Electrical installation VLT
®
HVAC Drive Instruction Manual
38
MG.11.A4.22 - VLT
®
is a registered Danfoss trademark
4
