4.1.16. Access to Control Terminals
All terminals to the control cables are located
underneath the terminal cover on the front of
the adjustable frequency drive. Remove the
terminal cover with a screwdriver.

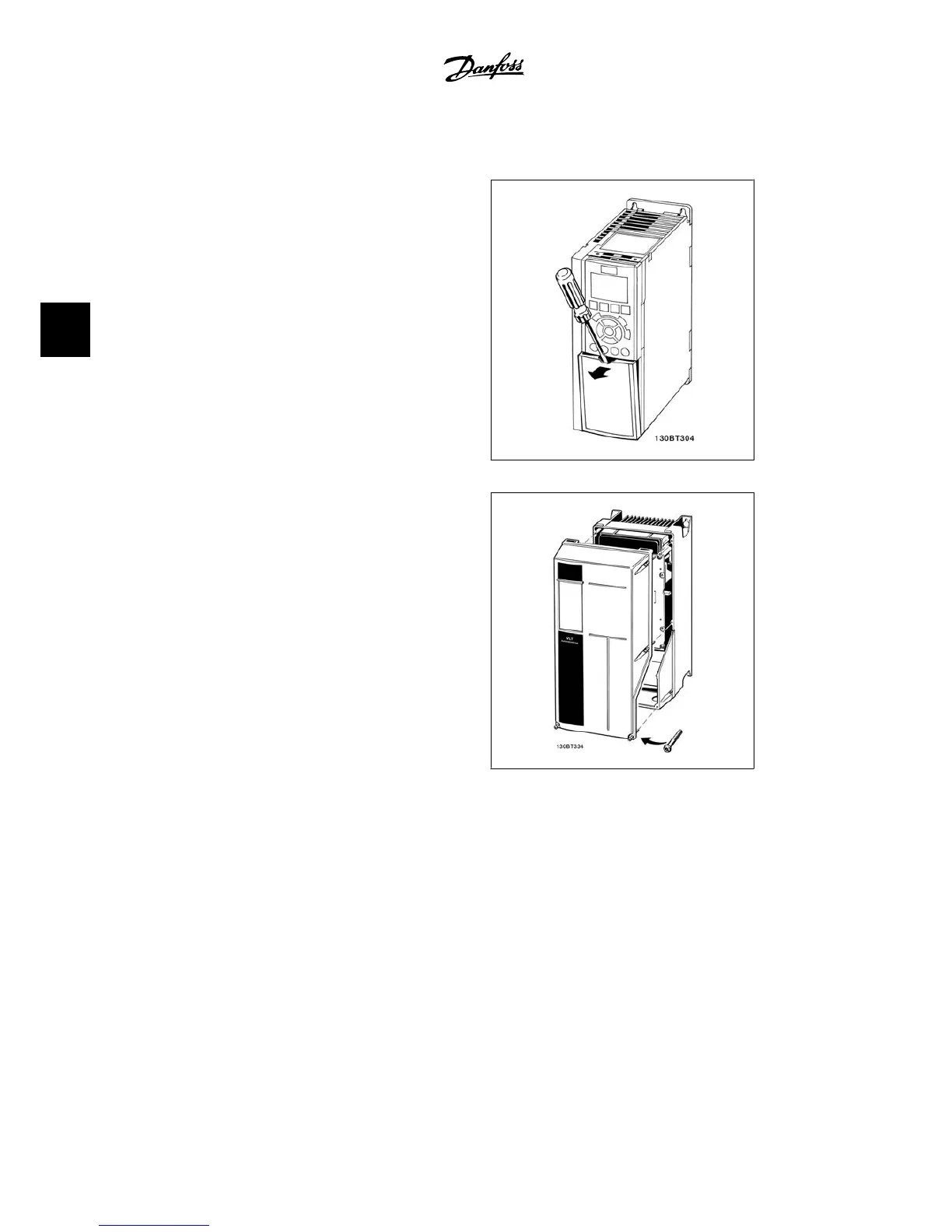

Illustration 4.16: A2 and A3 enclosures
Remove front cover to access control termi-
nals. When replacing the front cover, ensure
proper fastening by applying a torque of 2
Nm.
Illustration 4.17: A5, B1, B2, C1 and C2 enclosures
