[Main Menu]
is used for programming all parameters.
The main menu parameters can be accessed immediately unless a password has been created via
par. 0-60, 0-61, 0-65 or 0-66. For the majority of HVAC applications, it is not necessary to access
the main menu parameters; instead, the quick menu, quick set-up and function set-up provide
the simplest and quickest access to the typical required parameters.
It is possible to switch directly between Main Menu mode and Quick Menu mode.
Parameter shortcuts can be carried out by holding down the [Main Menu] key for 3 seconds.
The parameter shortcut allows direct access to any parameter.
[Alarm Log]
displays an Alarm list of the last five alarms (numbered A1-A5). For additional details on a par-
ticular alarm, use the arrow keys to navigate to the alarm number and press [OK]. Information is
displayed about the condition of the adjustable frequency drive before it enters Alarm mode.

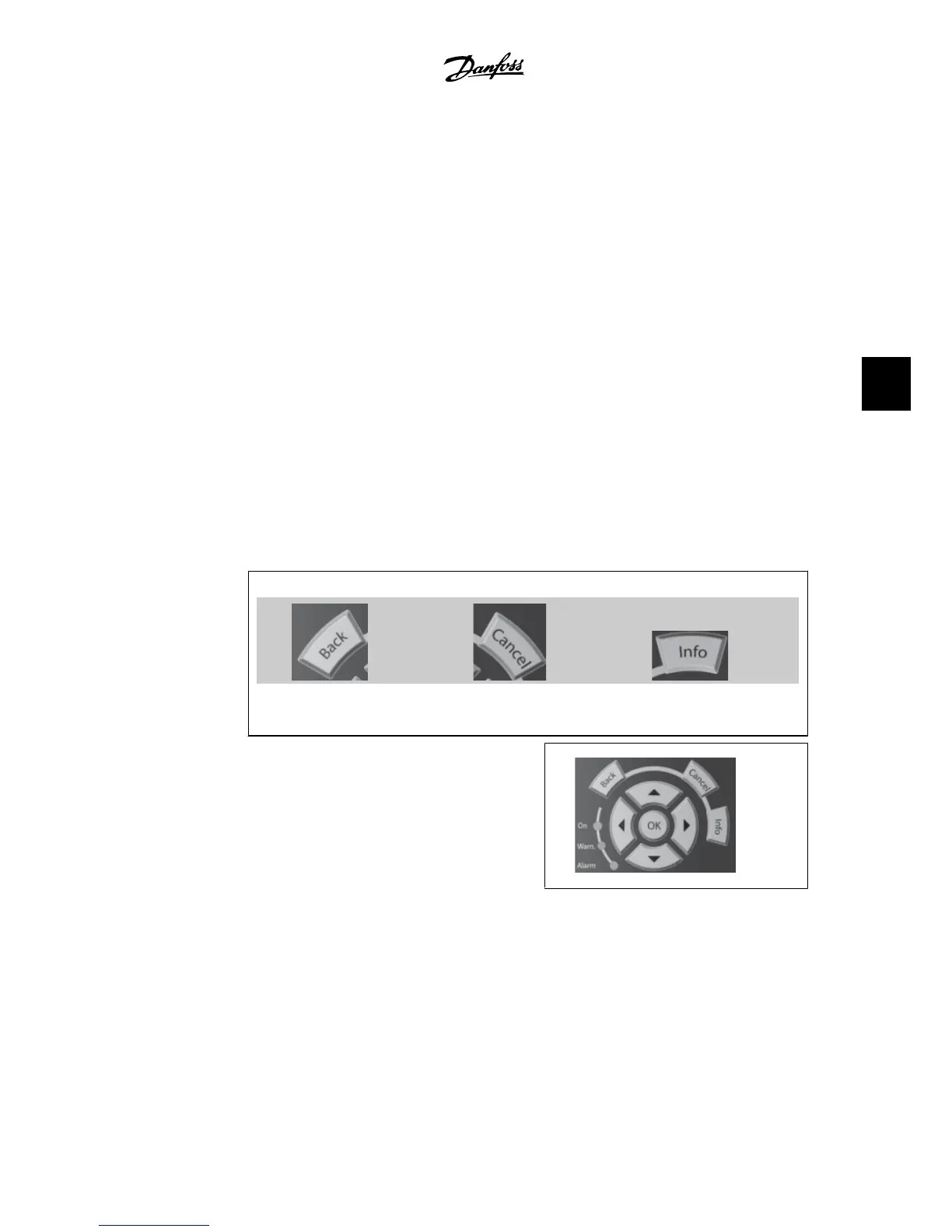

[Back]
reverts to the previous step or layer in the
navigation structure.
[Cancel]
the last change or command will be canceled
as long as the display has not been changed.
[Info]
displays information about a command, pa-
rameter, or function in any display window.
[Info] provides detailed information when
needed.
Exit Info mode by pressing either [Info],
[Back], or [Cancel].
Navigation Keys
The four navigation arrows are used to navi-
gate between the different choices available
in [Quick Menu], [Main Menu] and
[Alarm Log]. Use the keys to move the cur-
sor.
[OK] is used for choosing a parameter
marked by the cursor and for allowing a pa-
rameter change.
130BT117.1
