Danfoss VLT HVAC Drive - 6.1.3. Function Set-ups

3-11 Jog Speed [Hz]
Value:
0 - 1,000 Hz
Size related
Function:
The jog speed is a fixed output speed at which
the adjustable frequency drive is running
when the jog function is activated.
See also par. 3-80.
6.1.3. Function Set-ups
The function set-up provides quick and easy access to all the parameters required for the majority
of water and wastewater applications including variable torque, constant torque, pumps, dosing
pumps, well pumps, booster pumps, mixer pumps, aeration blowers and other pump and fan
applications. Among other features, it also includes parameters for selecting which variables to
display on the LCP, digital preset speeds, scaling of analog references, closed-loop single zone
and multi-zone applications, and specific functions related to fans, pumps and compressors.

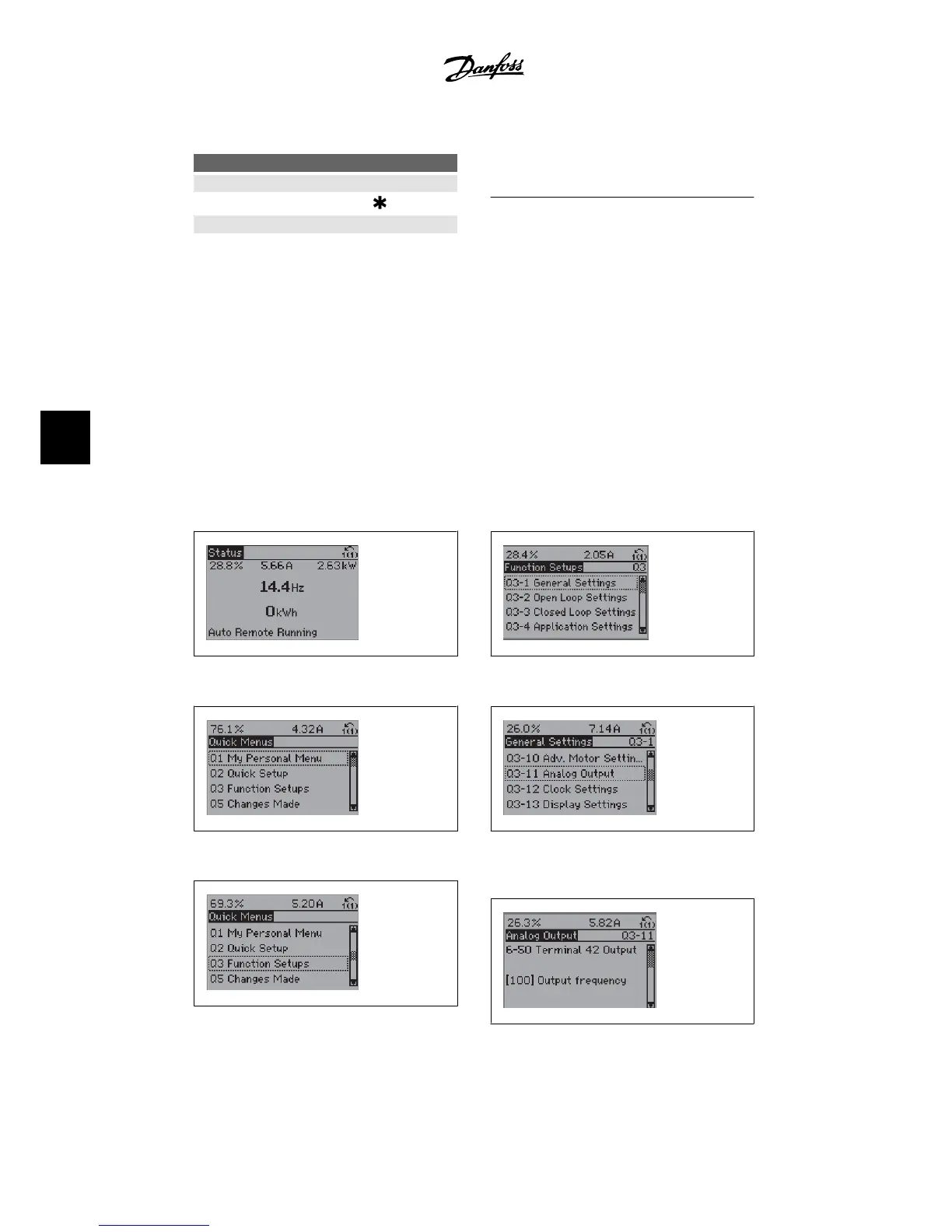

How to access Function Set-up - exam-
ple
130BT110.1
0
Illustration 6.2: Step 1: Turn on the adjustable
frequency drive (open LED lights)
130BT111.1
0
Illustration 6.3: Step 2: Press the [Quick Menus]
button (quick menu choices appear).
130BT112.1
0
Illustration 6.4: Step 3: Use the up/down naviga-
tion keys to scroll down to Function Set-ups. Press
[OK].
130BT113.1
0
Illustration 6.5: Step 4: Function Set-ups choices
appear. Choose 03-1
General Settings . Press [OK].
130BT114.1
0
Illustration 6.6: Step 5: Use the up/down naviga-
tion keys to scroll down to 03-11
Analog Outputs
(e.g.). Press [OK].
130BT115.1
0
Illustration 6.7: Step 6: Choose parameter 6-50
Terminal 42 Output . Press [OK].
6. How to program the adjustable frequency
drive
VLT
®
HVAC Drive Instruction Manual
68 MG.11.A4.22 - VLT
®
is a registered Danfoss trademark
6
