3.1.4 Topology
The MCA 121 features a build-in Ethernet-switch, thus having two Ethernet RJ-45 connectors. This enables the possibility for connecting several EtherNet/
IP options in a line topology as an alternative to the typical star-topology.
The two ports are equal, in the sense that they are transparent for the option. If only one connector is used, either port can be used.
AutomationDri ve
VLT
AutomationDri ve
VLT
AutomationDri ve
VLT
AutomationDri ve
VLT
Automati onDrive
VLT
Autom ationDr ive
VLT
AutomationDri ve
VLT
Automati onDrive
VLT
130BA903.10

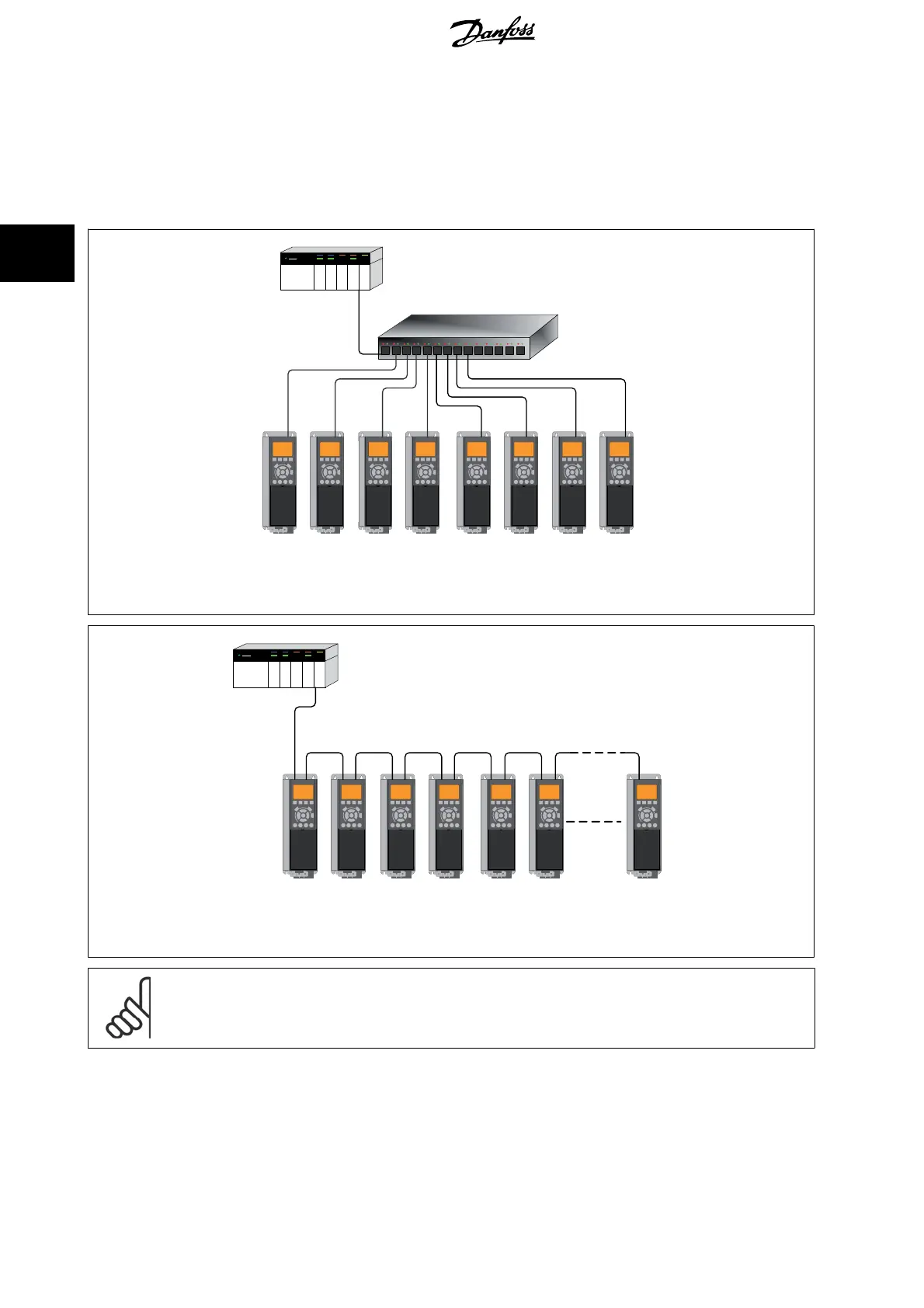

Illustration 3.2: Star topology
AutomationDri ve
VLT
AutomationDri ve
VLT
AutomationDrive
VLT
AutomationDri ve
VLT
AutomationDri ve
VLT
AutomationDri ve
VLT
Automati onDriv e
VLT
130BA904.10
Illustration 3.3: Line topology
NB!
For line topology please refer to section: “Recommended design rules” In a line topology all drives must be powered, either by mains
or by their 24 V DC option cards, for the build-in switch to work.
