Danfoss VLT PROFINET MCA 120 User Manual

10 Troubleshooting

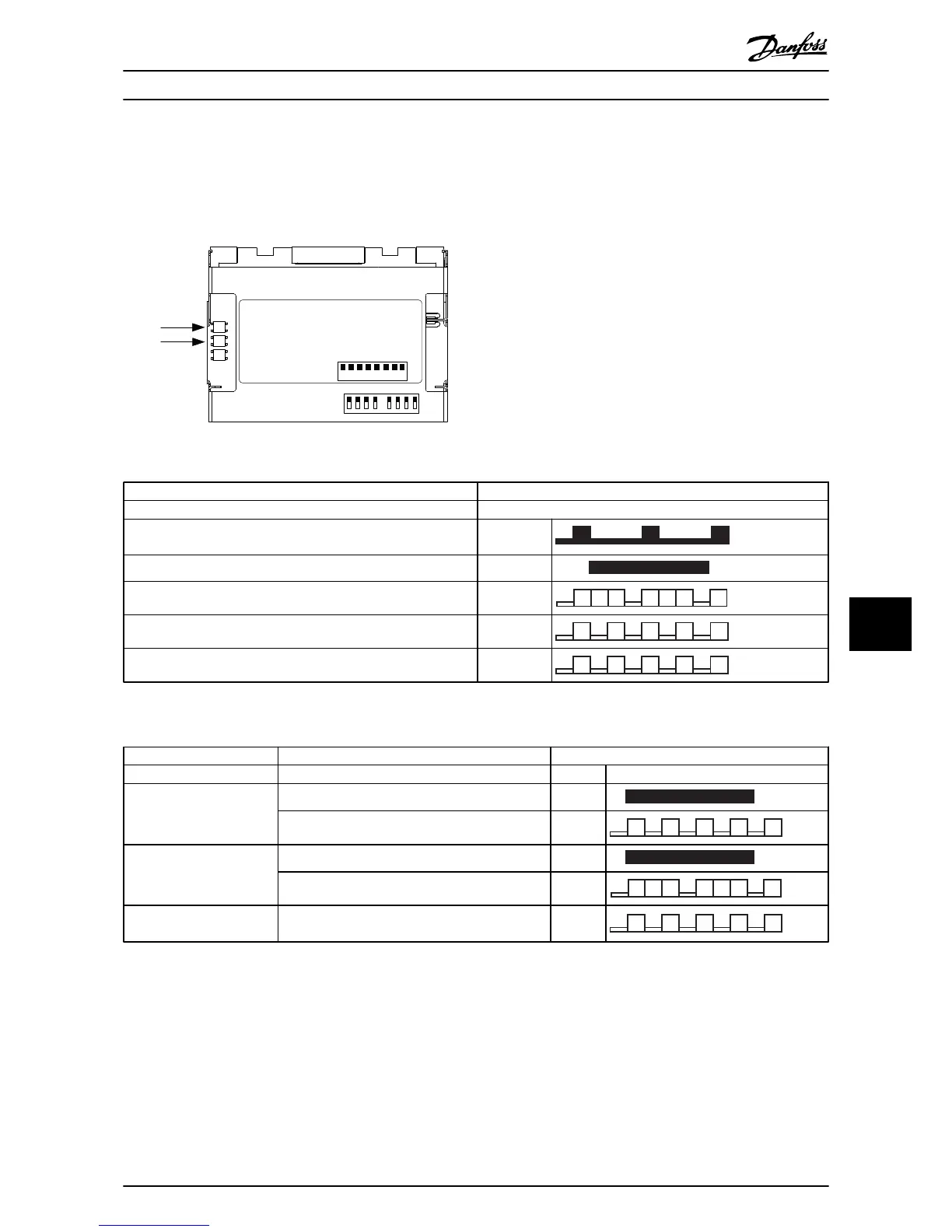

10.1 LED Status
130BD780.10
MS LED
NS LED’s
MCA 120
PROFINET
SW. ver. 3.00 (TM: 3:15)
MS
NS2
NS1
Ethernet Port 1 Ethernet Port 2
MAC: 00:1B:08:XX:XX:XX
Option A
130B1135
Host Name
8 7 6 5 4 3 2 1
Illustration 10.1 LED
Status Tri-colour LED
No IP Address assigned Off
No Communication to PROFINET module. Module is waiting for
configuration telegram from Controller.
Green:
IO AR established Green:
Supervisor AR established, No IO AR. Green:
▂███▂███▂█
Internal Error Red:
▂█▂█▂█▂█▂█
Wink
Yellow:
▂█▂█▂█▂█▂█
Table 10.1 MS: Module Status
Network Status
Phases Status Tri-colour LED
Power Off No Power or No Link on the corresponding port Off
Power On
IP Address Conflict Red:
Waiting for configuration Green:
▂█▂█▂█▂█▂█
Running
In Data Exchange Mode Green:
Wrong Configuration Red:
▂███▂███▂█
Data exchange
No increment in "In Octets" counter of
corresponding port in last 60 s
Yellow:
▂█▂█▂█▂█▂█
Table 10.2 Indication on Network Status LED
Troubleshooting Operating Instructions
MG90U302 Danfoss A/S © Rev. 2014-02-27 All rights reserved. 63
10 10
