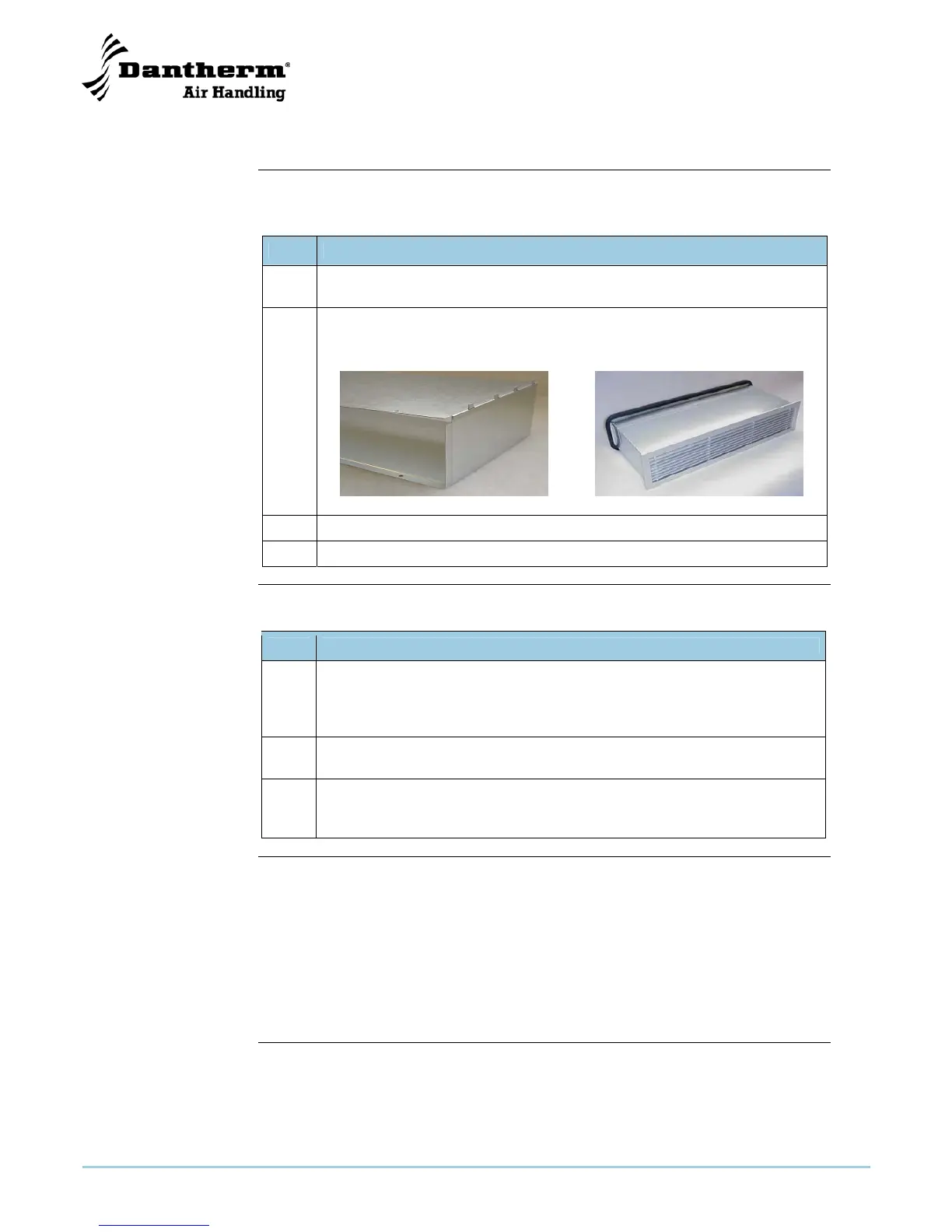

Mounting and installation instructions, continued
Mounting of the
duct kit
Please follow this procedure to mount the duct kit:
Step Action
1 Place the duct kit with the filter in the lower duct opening where the air from
the swimming pool room is taken into the unit
Shorten the center piece of the duct kit to the required length before assem-
bly.
This goes for wall thicknesses between 130 mm and 350 mm
2
Center piece of the duct kit, 235 mm
Duct kit, 350 mm
3 Mount the duct kit in the duct openings
4 Hang up the unit on the rail
Access to the
control
Please follow this procedure to get access to the control:
Step Action
1 Remove the screws (4 pcs.) on the front of the dehumidifier (i.e. opposite to
the unit’s duct openings) and open the dehumidifier
The screws may be removed by means of the enclosed Allen key with hexa-
gon head
2 Remove the screws on the front of the lit that is placed on top of the com-
pressor (the control is placed in that box)
3 Push the lid backwards against the back of the dehumidifier and pull it away
from the box
There is now access to the control
Condensate outlet The condensate outlet is located at the base of the dehumidifier. The unit has a drain
spigot intended for connection of a ½’’ flexible or fixed water hose.
It is important that the hose from the dehumidifier to the drainage has a fall of at least
2 % to make sure that the water runs away from the condensate tray.
