25
975676 • Version 2.8 • 19.01.2011
Mounting and installation instructions
Introduction This topic contains all necessary information to be able to mount the duct kit and the
dehumidifier correctly.
The electrical installation is described at the end of this section.
Measuring the
ducts
Please follow this procedure to establish the ducts:
Step Action
1 Cut out the stencil from the packaging and tape it onto the wall where you
want the unit to hang
2 Use the stencil to mark off the position of the ducts and the bar for suspen-
sion of the dehumidifier
You may also use the dimensional outlines on page 95 to make the mark-
ings
3 Establish the duct openings
4 Measure the depth of the ducts
5 Adjust and mount the ducts according to the Measuring in step 4, see also ”
Mounting of the duct kit”
Important The suggested minimum space between unit and ceiling and between unit and floor is
225 mm.
See the dimensional outlines on page 95.

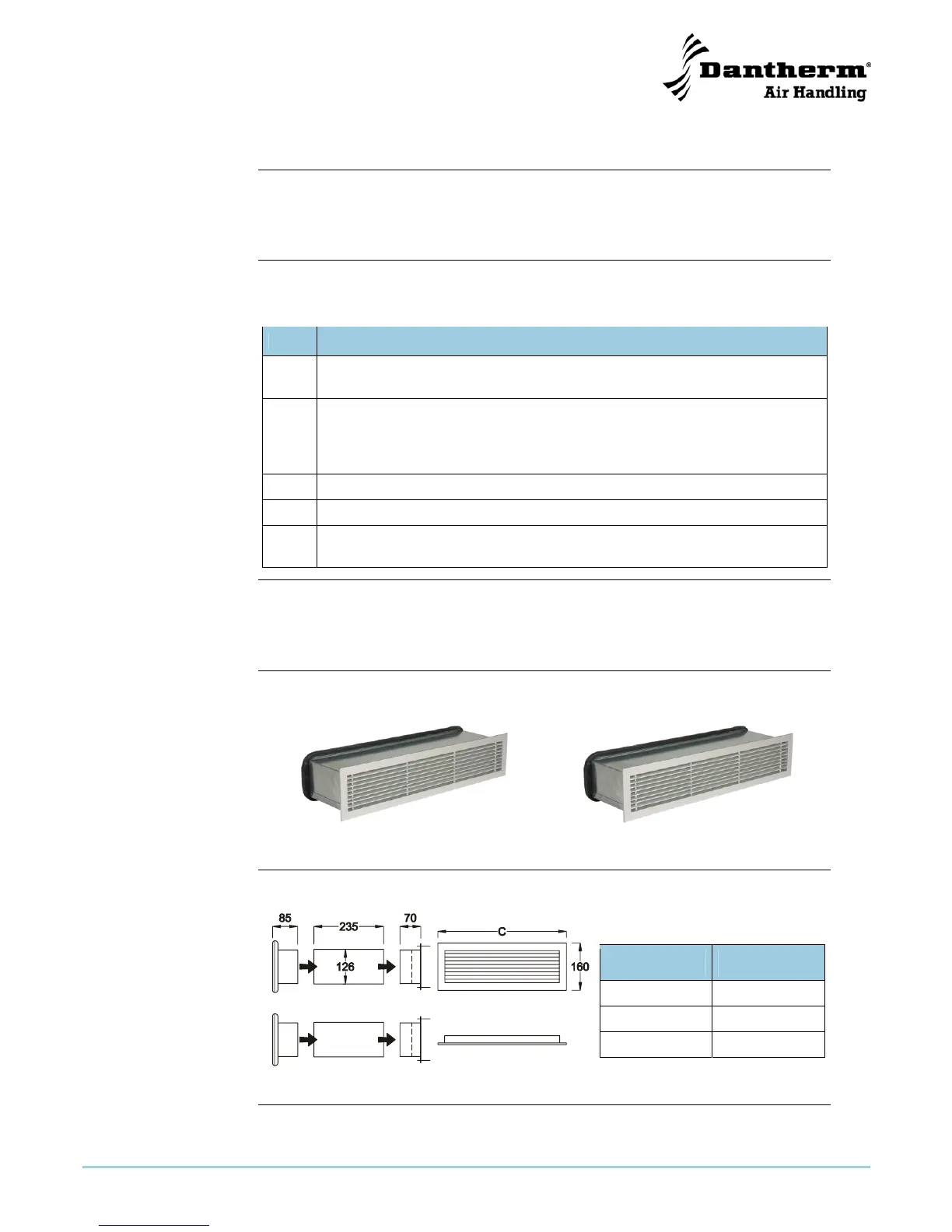

Duct kit
The Dantherm Air Handling duct kit is suitable for wall thicknesses from 70 to 350 mm
Duct kit
The duct kit includes the parts shown below:
The duct kit in-
cludes ...
Model C
CDP 35T 434 mm
CDP 45T 743 mm
CDP 65T 1284 mm
Continued overleaf
To Next Page
