DC-2300 User Manual v1.0
28

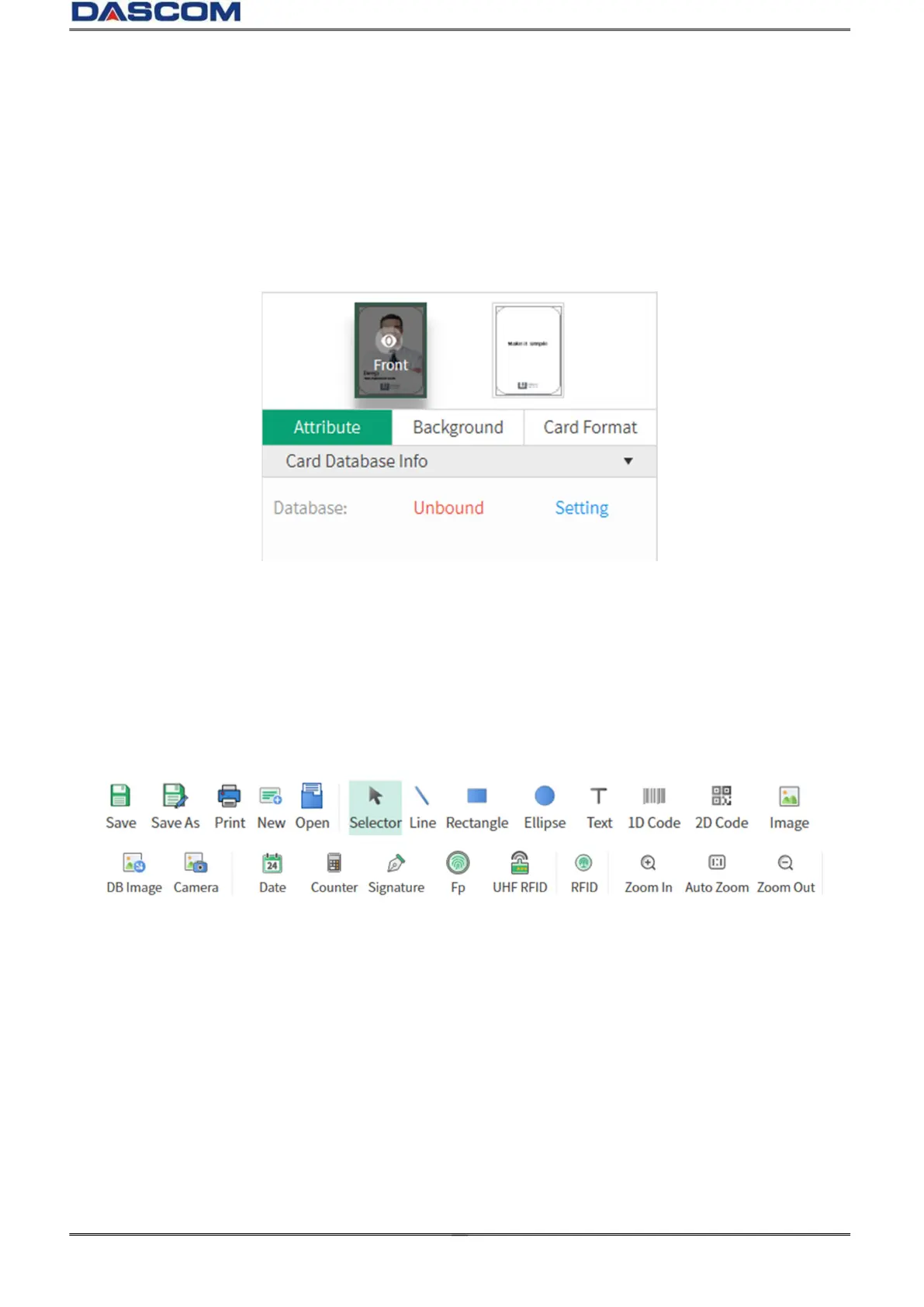

(3) On the right menu, you can see the items “Attribute”, “Background” and “Card Format”:
1) Choose “Attribute”, you can set the database.
2) Choose “Background”, you can change the background of the print content.
3) Choose “Card Format”, you can set the cards size,transverse/ longitudinal.
4) Click thumbnail of “Front” and “Back”, you can choose the different side to edit.
(4) The tool buttons above the working interface, as shown in the following figure, are divided
into two categories: "basic editing" and "Advanced tools". "Basic editing" includes line,
rectangle, ellipse, text, 1D code, 2D code and image. “Advanced tools” includes DB image,
camera date, counter, signature and so on. Each object has some attributes,such as
position,border,color,fill,rotate.You can choose them according to your need. You can select
the object you added, then adjust the position. You can also select the object you added, then
delete it.
