14
•

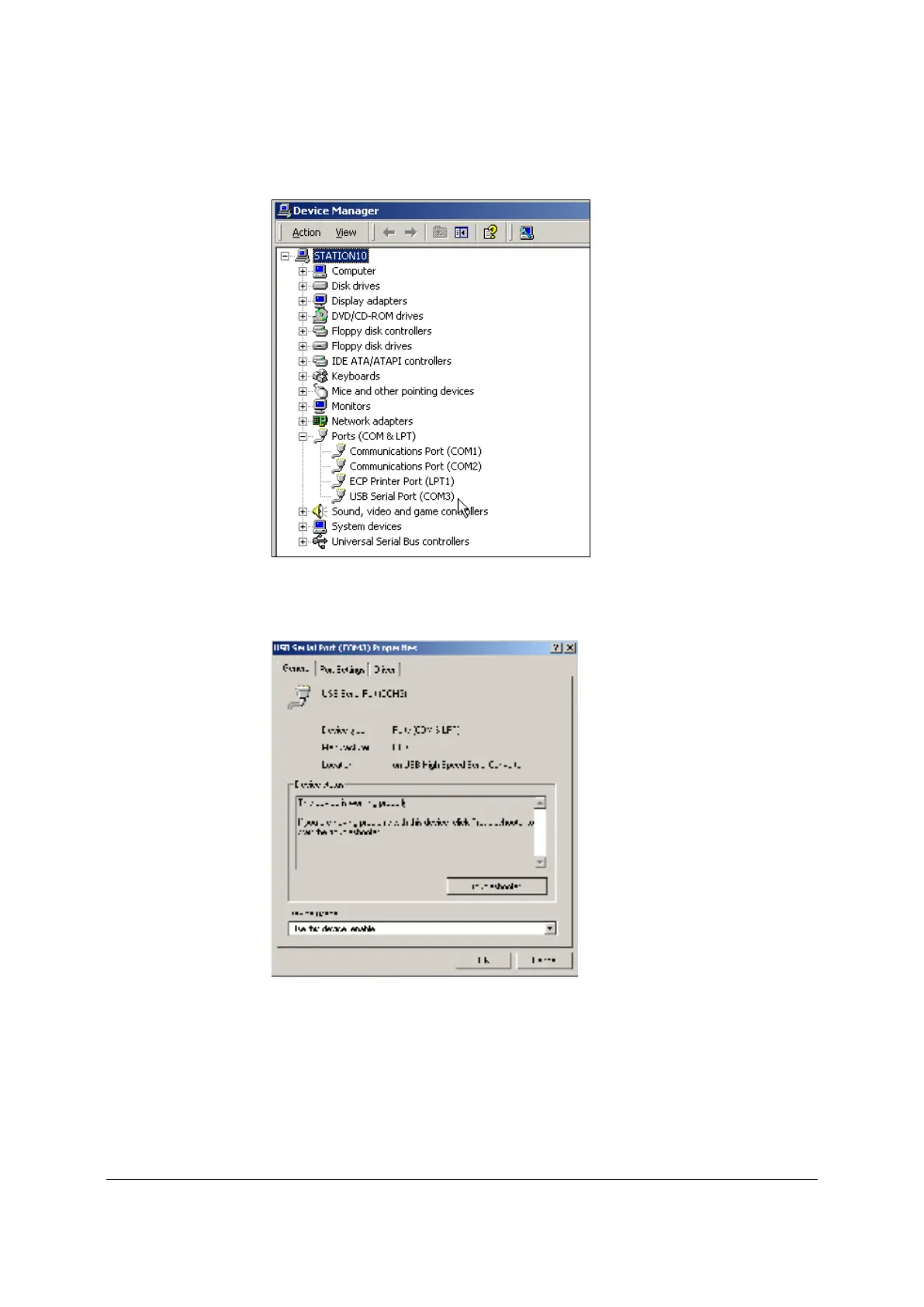

USB Cable Installation
Datacolor 650/600/400 User's Guide
5.
Click the
Device Manager
butt
on. The Device Manager
window displays.
6.
Go to the
Por
ts
heading. Click on
the plus (+) to
display the port select
ions.
7.
Click
USB Seri
al Port
. The USB Seri
al Port (CO
M3) Properties dialog box
displays.
17
19
Table of Contents
