Datacolor 650/600/400 User's Guide Optical Block Diagram • 43
Appendix

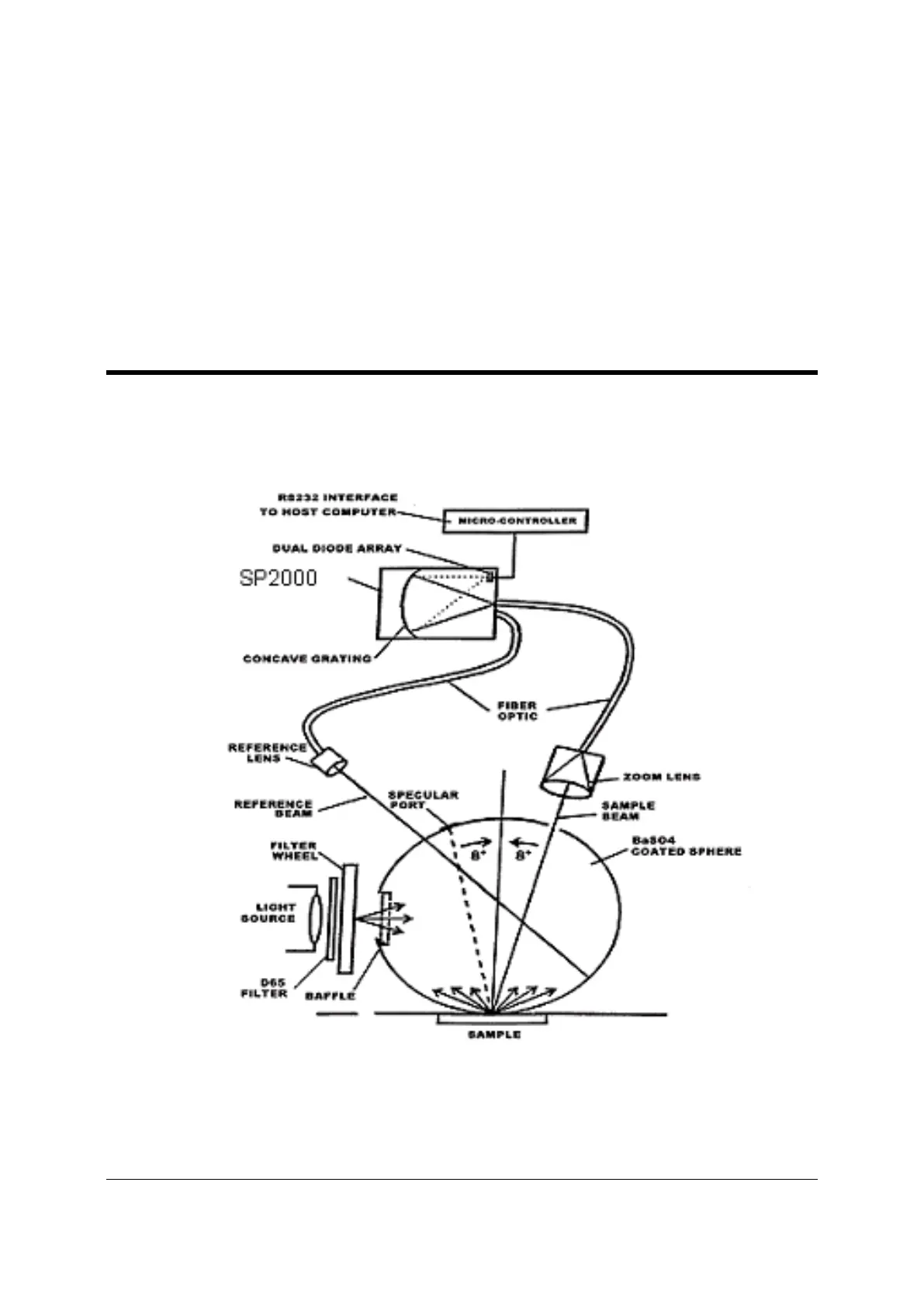

Optical Block Diagram
The same optical configuration is used for the Datacolor 650, 600 and 400:
