Datacolor 800, 850, 500, and 550 Series User’s Guide 11

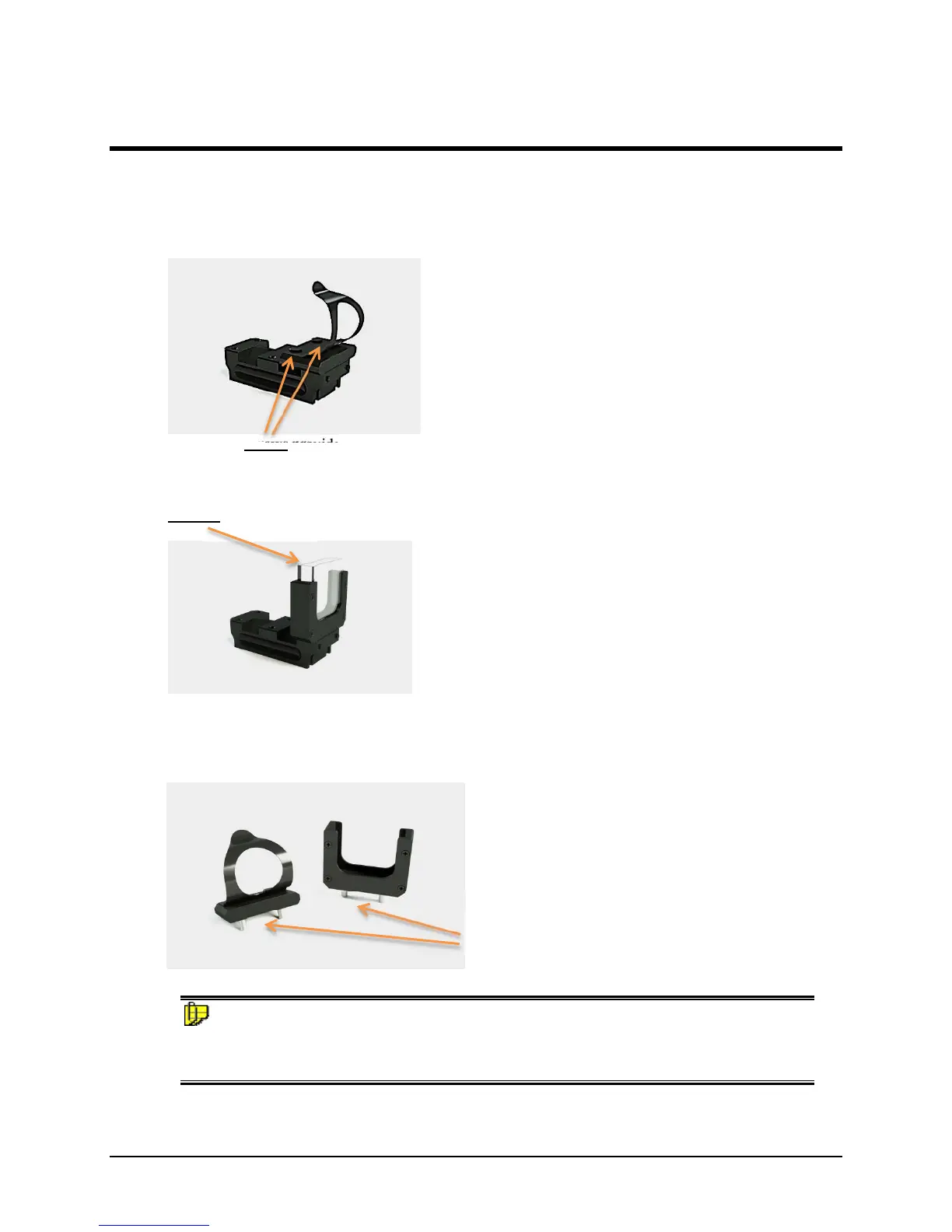

Transmission Sample Holders
Two sample holders are provided to accommodate various types of transparent samples.
Solid Sample Holder
Two thumb screws provide the ability to adapt
the holder to samples of varying thicknesses.
Cuvette and Cuvette Holder (Liquid Samples)
This holder is designed for use with a 50mm X
10mm optical glass cuvette.
These sample holders are mounted onto the transmission sample holder base via two dowels
protruding from the bottom of the holders.
NOTES
Loosen the thumbscrews on the solid sample holder to aid in the installation of the sample
holder. Make sure the sphere opening/lens opening is completely covered by the sample you
are going to measure. No special tools are required to install the sample holders.
Dowel Pins
