Datacolor 800 User Manual

Datacolor 800, 850, 500, and 550 Series User’s Guide  14

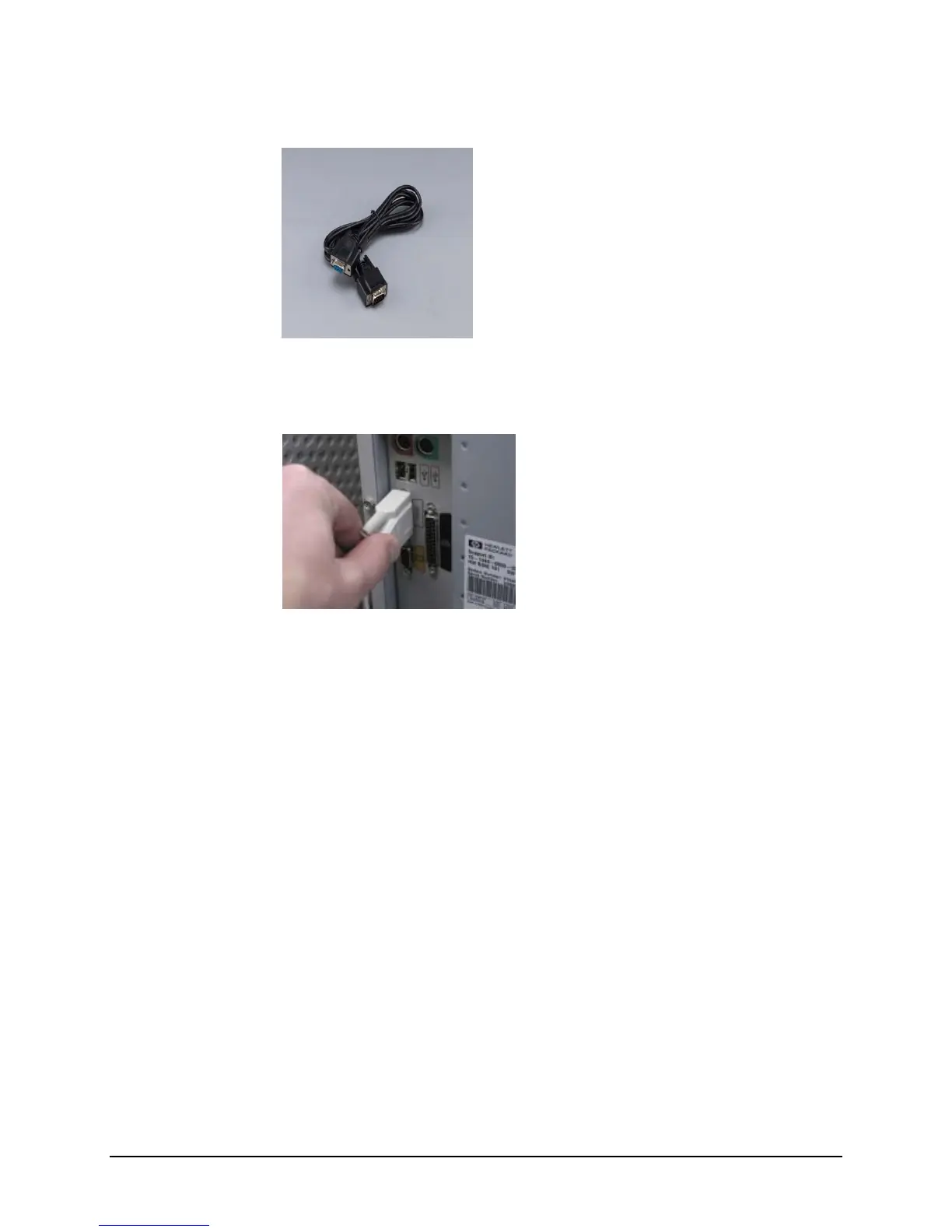

The serial cable is shown below:
1. Connect the 9-pin male connector on the serial cable to the RS-232C female
connector on the rear panel of the instrument.
2. Connect the female connector on the serial cable to a serial communications port
on the back of the computer.
3. If there is more than one serial port on the computer, make a note of the port
being used. You may need to enter this information into the program.
4. Tighten each connection securely to ensure proper signal.
See the Appendix for a description of the RS-232C connector pin assignments.

Datacolor 800 Specifications

General

Model	Datacolor 800
Category	Measuring Instruments
Type	Spectrophotometer
Measurement Range	0 to 200% reflectance
Light Source	Pulsed Xenon
Wavelength Interval	10 nm
Ports	USB, Ethernet
Wavelength Range	400 to 700 nm
Aperture Sizes	4 mm
Measurement Area	MAV: ~9 mm, SAV: ~4 mm
Operating Conditions	10° to 40° C (50° to 104° F)
