CBX800 INSTALLATION MANUAL
16
Host RS232 Interface
The RS232 interface can be used for connections to the host computer allowing transmission of code data.
The following pins are used for RS232 interface connection:
Pinout
Function
TX Transmit Data
RX Receive Data
RTS Request To Send
CTS Clear To Send
SGND Signal Ground
It is always advisable to use shielded cables. The overall maximum cable length must be less than 15 m (49.2 ft).
SGND RXD TXD
CTS RTS
USER INTERFACE
SGND TX RX
RTS CTS
CBX800

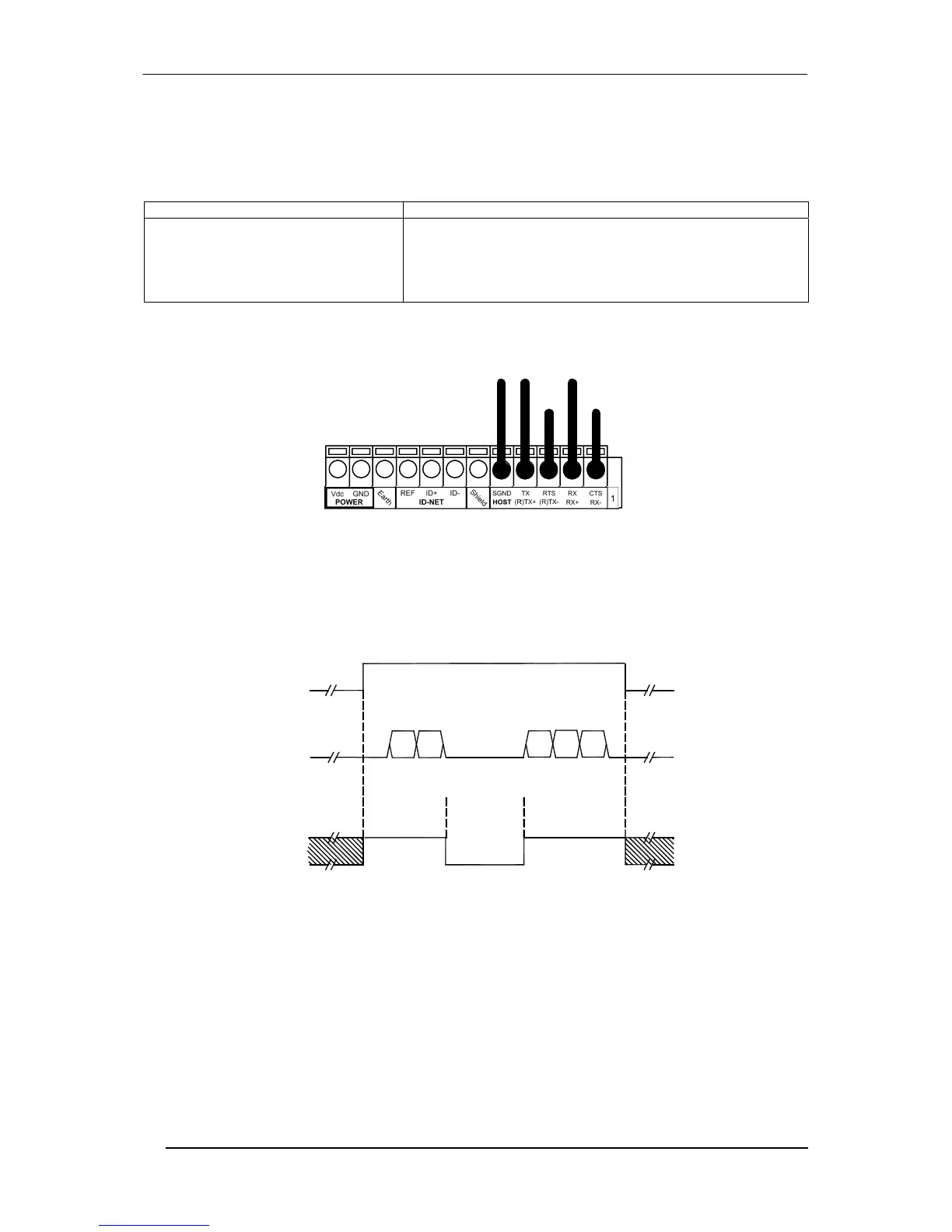

Figure 15 – RS232 Host Interface Connections Using Hardware Handshaking
The RTS and CTS signals control data transmission and synchronize the connected devices.
START
OF
TRANSMISSION
END
OF
TRANSMISSION
+ V
RTS
- V
+ V
TX DATA
- V
+ V
CTS
- V
DATA
TRANSMISSION
DATA
TRANSMISSION
C1
C2
C4
C3
C5
TRANSMISSION
STOPPED
ENABLED
DISABLED
ENABLED
IDLE
IDLE
Figure 16 - RS232 Control Signals
If the RTS/CTS handshaking protocol is enabled, the reading device activates the RTS output to indicate a
message is to be transmitted. The receiving unit activates the CTS input to enable the transmission.

Datalogic CBX800 Specifications

General

Product color	Black, Blue, Grey
LED indicators	Yes
Housing material	-
Protection features	Shock resistant, Vibration proof
International Protection (IP) code	IP65
Input voltage	10/30 V
Power source type	DC
Power consumption (typical)	2.5 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Type	Barcode module bar barcode readers
Scanner type	1D/2D
Connectivity technology	Wired
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	137 mm
Width	128 mm
Height	62 mm
Weight	360 g
