CBX800 INSTALLATION MANUAL
4
DESCRIPTION
The CBX800 is a Gateway connection box which can be used as an accessory to facilitate system connections
for installation and device replacement of several Datalogic family reading devices.
It allows connection of devices equipped with a standard RS232/RS485 communication interface to the most
common Fieldbus systems, by means of a complete range of optional modules, and to ID-NET™ high speed
communication network.
System cabling is made through spring clamp terminal blocks inside the CBX800 while the reading device is
connected to the CBX800 through a 25-pin connector on the housing.
Two 9-pin connectors placed inside the CBX800 facilitate connection to an external PC for data monitoring or for
configuring the CBX800 and the reading device.
Four embedded rotary switches allow easy manual Network Type and Addressing/Baud Rate selection.
CBX800 can also house several accessories which make the system highly flexible. These include:
 One of several Host Interface Modules - to interface the reader with the most popular Fieldbus network
types: Ethernet, Profibus; DeviceNet, etc., including IP65 protection versions.
 Mounting Adapters – to provide easy mounting to DIN rails and Bosch profiles.
PACKAGE CONTENTS
Verify that the CBX800 and all the parts supplied with the equipment are present and intact when opening the
packaging; the list of parts includes:
 CBX800 Gateway
 This Installation Manual
 Mounting screws and washers (2)
 CBX800 Configuration CD-ROM

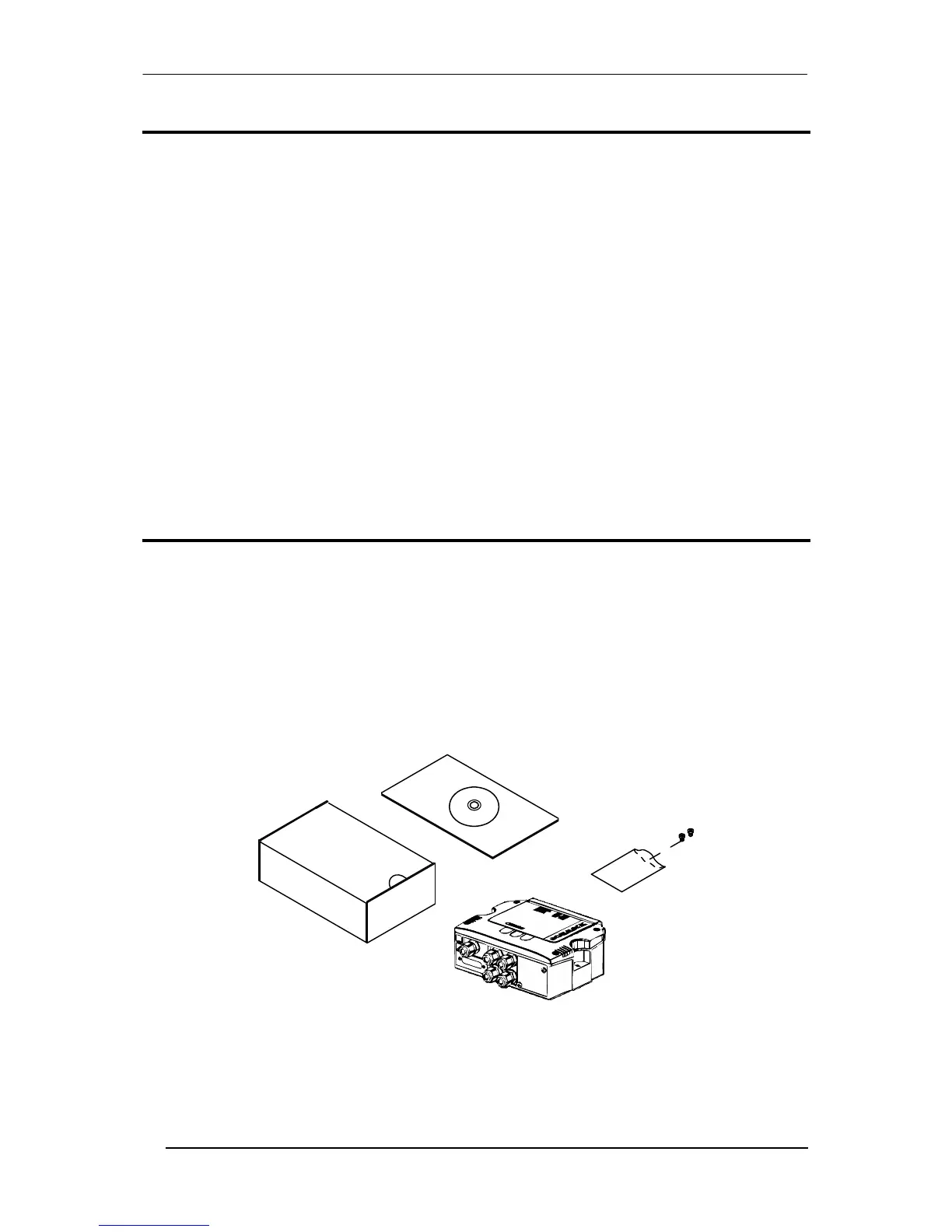

Figure 1 - Package Contents

Datalogic CBX800 Specifications

General

Product color	Black, Blue, Grey
LED indicators	Yes
Housing material	-
Protection features	Shock resistant, Vibration proof
International Protection (IP) code	IP65
Input voltage	10/30 V
Power source type	DC
Power consumption (typical)	2.5 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Type	Barcode module bar barcode readers
Scanner type	1D/2D
Connectivity technology	Wired
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	137 mm
Width	128 mm
Height	62 mm
Weight	360 g
