CBX800 INSTALLATION MANUAL
15
HOST INTERFACE
CAUTION
Do not connect to the Host Interface spring clamp terminals if using Host Interface Modules
(Fieldbus and non Fieldbus).

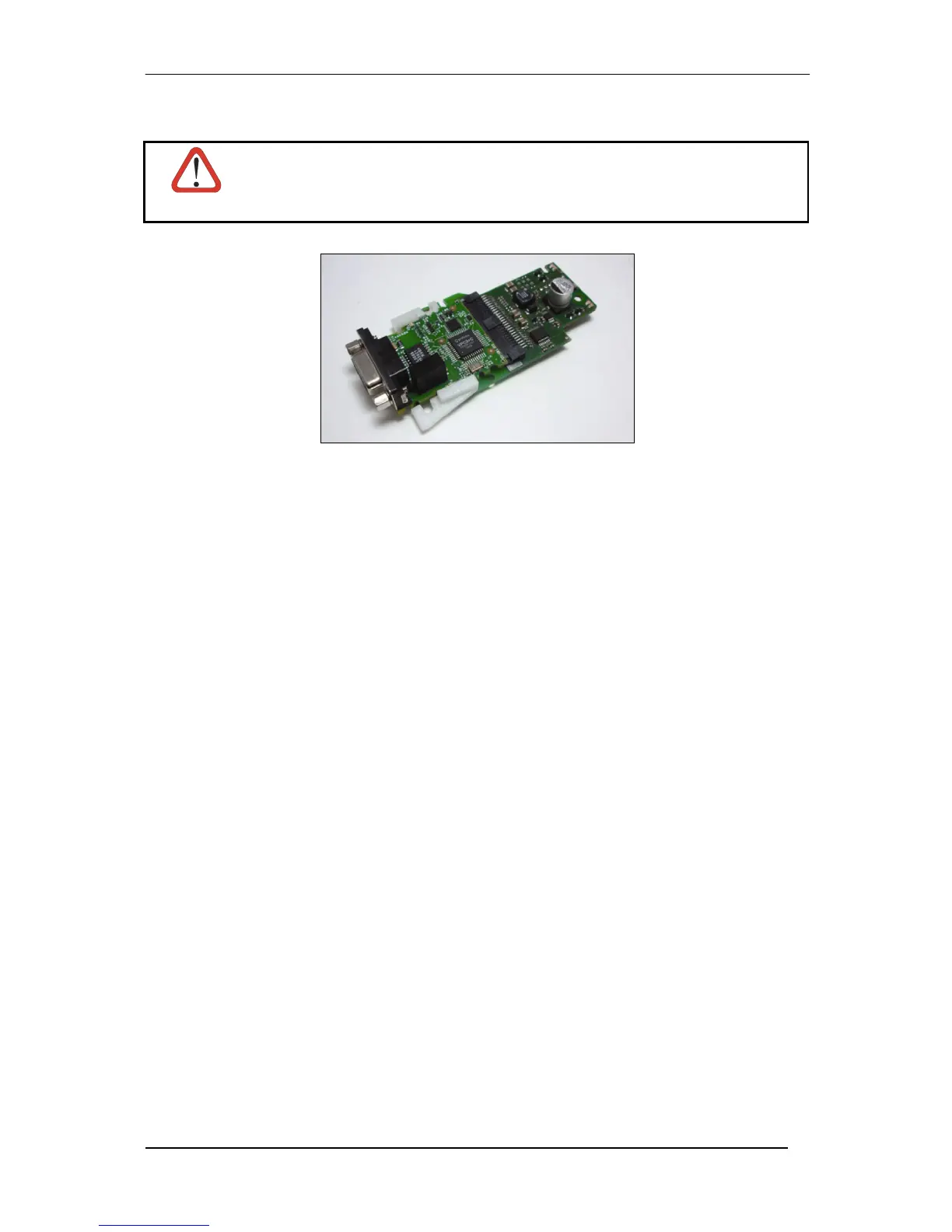

Figure 14 – Host Interface Module
The signals relative to the following Serial interface types are available on the CBX800 spring clamp terminal
blocks.
The Host serial interface type and its parameters (baud rate, data bits, etc.) can be defined by the user via
Genius™ software. The RS485 half duplex is automatically set whenever MUX32 communication protocol
is enabled. For more details refer to the "Communication Settings" section in the Genius™ Help On Line.
Details regarding the connections and use of the interfaces are given in the next paragraphs.

Datalogic CBX800 Specifications

General

Product color	Black, Blue, Grey
LED indicators	Yes
Housing material	-
Protection features	Shock resistant, Vibration proof
International Protection (IP) code	IP65
Input voltage	10/30 V
Power source type	DC
Power consumption (typical)	2.5 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Type	Barcode module bar barcode readers
Scanner type	1D/2D
Connectivity technology	Wired
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	137 mm
Width	128 mm
Height	62 mm
Weight	360 g
