AUXILIARY INTERFACE
All CBX800s have an RS232 auxiliary interface available on the 9-pin connector below, which can be linked to
another host computer or an external system. This interface is mainly used for CBX800 configuration through
Genius™, the multilanguage software tool. Diagnostics and program downloading can be performed from this
interface.
Connections can be made to a PC or Laptop using a straight through cable or a USB-RS232 converter.
5 1
69

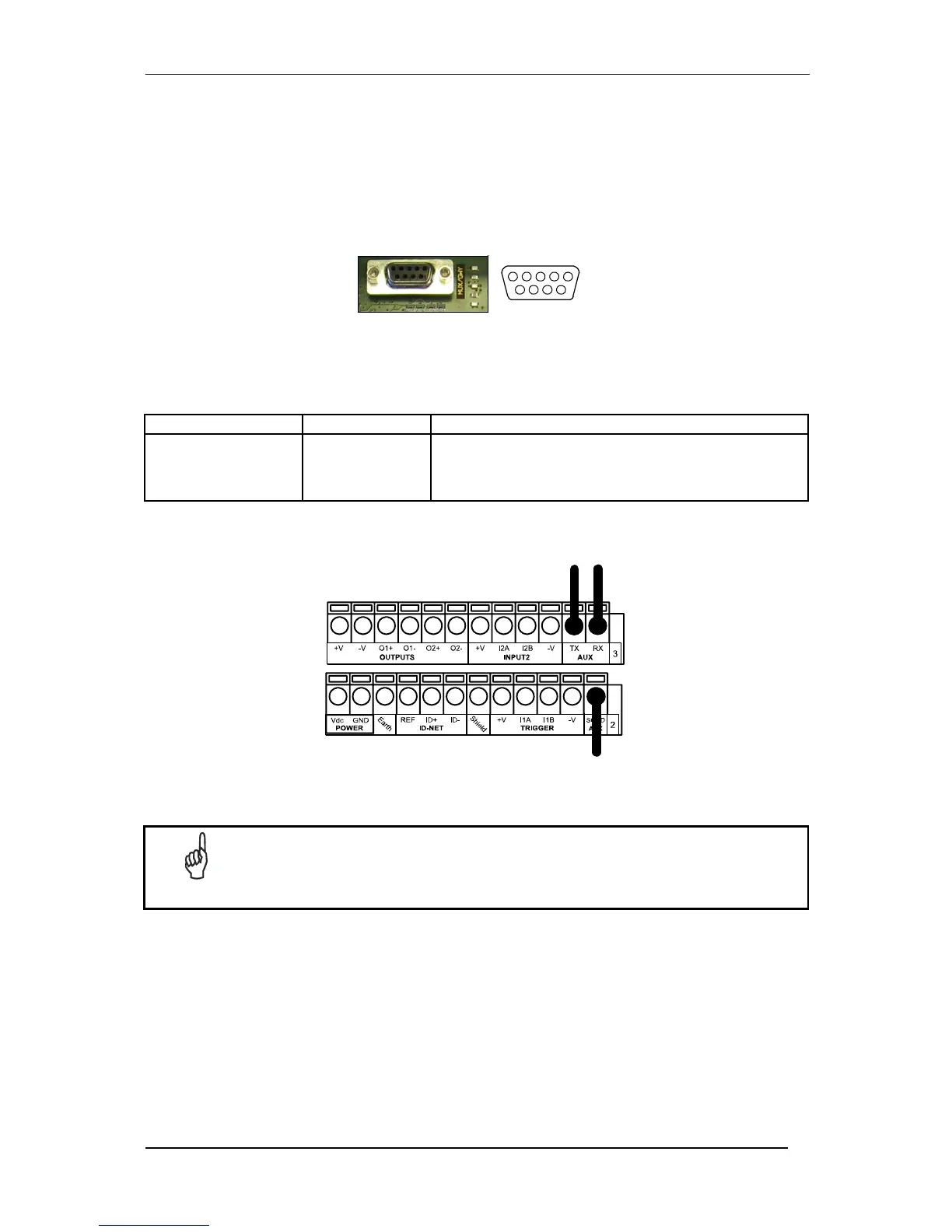

Figure 20 - 9-pin D-Sub Female Connector
With reference to the 9-pin connector of Figure 20, the following pins are used to connect the RS232 auxiliary
interface:
Pin Name Function
2 TX
Auxiliary Interface Receive Data
3 RX
Auxiliary Interface Transmit Data
5 SGND
Signal Ground
1, 4, 6, 7, 8, 9 N.C.
RX TX
Reference
USER INTERFACE
Figure 21 - RS232 Auxiliary Interface Connections
NOTE
Do not connect the Aux Interface to the CBX spring clamp connectors and the 9-pin
connector simultaneously.

Datalogic CBX800 Specifications

General

Product color	Black, Blue, Grey
LED indicators	Yes
Housing material	-
Protection features	Shock resistant, Vibration proof
International Protection (IP) code	IP65
Input voltage	10/30 V
Power source type	DC
Power consumption (typical)	2.5 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Type	Barcode module bar barcode readers
Scanner type	1D/2D
Connectivity technology	Wired
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	137 mm
Width	128 mm
Height	62 mm
Weight	360 g
