CBX800 INSTALLATION MANUAL
27
INDICATOR LEDS
green
yellow
green
yellow
green
blue/red
yellow
green
yellow
green

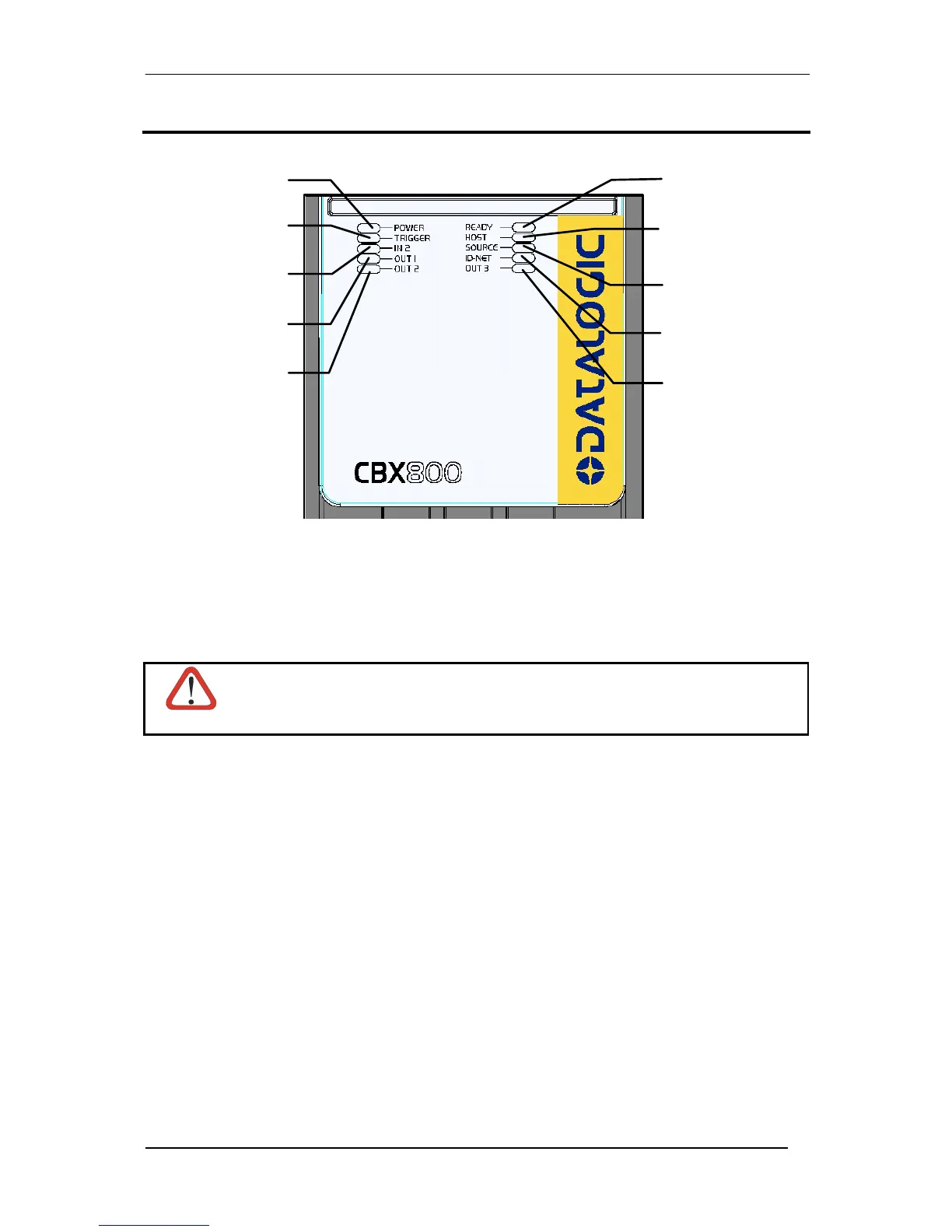

Figure 37 – Indicator LEDs
There are ten Indicator LEDs which signal power, communication, and I/O activity and are visible from the
CBX800 outside cover.
The Power LED is blue when power is correctly applied to the CBX800 and the power switch is turned on.
This LED is red if power polarity is incorrect. In this case the connected reading device is protected.
CAUTION
If external I/O devices are powered through CBX800 (connected to +V/-V), they are not
protected from polarity inversion.
The Ready LED is on after the power-up or reset sequence is complete.
The Host, Source, and ID-NET LEDs are active when communicating on the respective interface (fast blinking).
The remaining I/O LEDs are active when the respective I/O is active depending on the software configuration
setting.

Datalogic CBX800 Specifications

General

Product color	Black, Blue, Grey
LED indicators	Yes
Housing material	-
Protection features	Shock resistant, Vibration proof
International Protection (IP) code	IP65
Input voltage	10/30 V
Power source type	DC
Power consumption (typical)	2.5 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	0 - 90 %
Type	Barcode module bar barcode readers
Scanner type	1D/2D
Connectivity technology	Wired
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	137 mm
Width	128 mm
Height	62 mm
Weight	360 g
