RAPID CONFIGURATION
1
STEP 6 – TEST MODE
Use a code suitable to your application to test the system. Alternatively, you can use the
Datalogic Test Chart (Code 128).
1. Enter the Test mode function by holding the X-PRESS™ push button pressed until the
TEST LED is on.
2. Release the button to enter the Test mode function.
Once entered, the Bar-Graph on the five LEDs is activated and if the scanner starts
reading barcodes the Bar-Graph shows the Good Read Rate. In case of no read
condition, only the STATUS LED is on and blinks.
green
green
yellow
yellow
red
READY
GOOD
RIGGER
COM
STATUS
SETUP
LEARN
EST

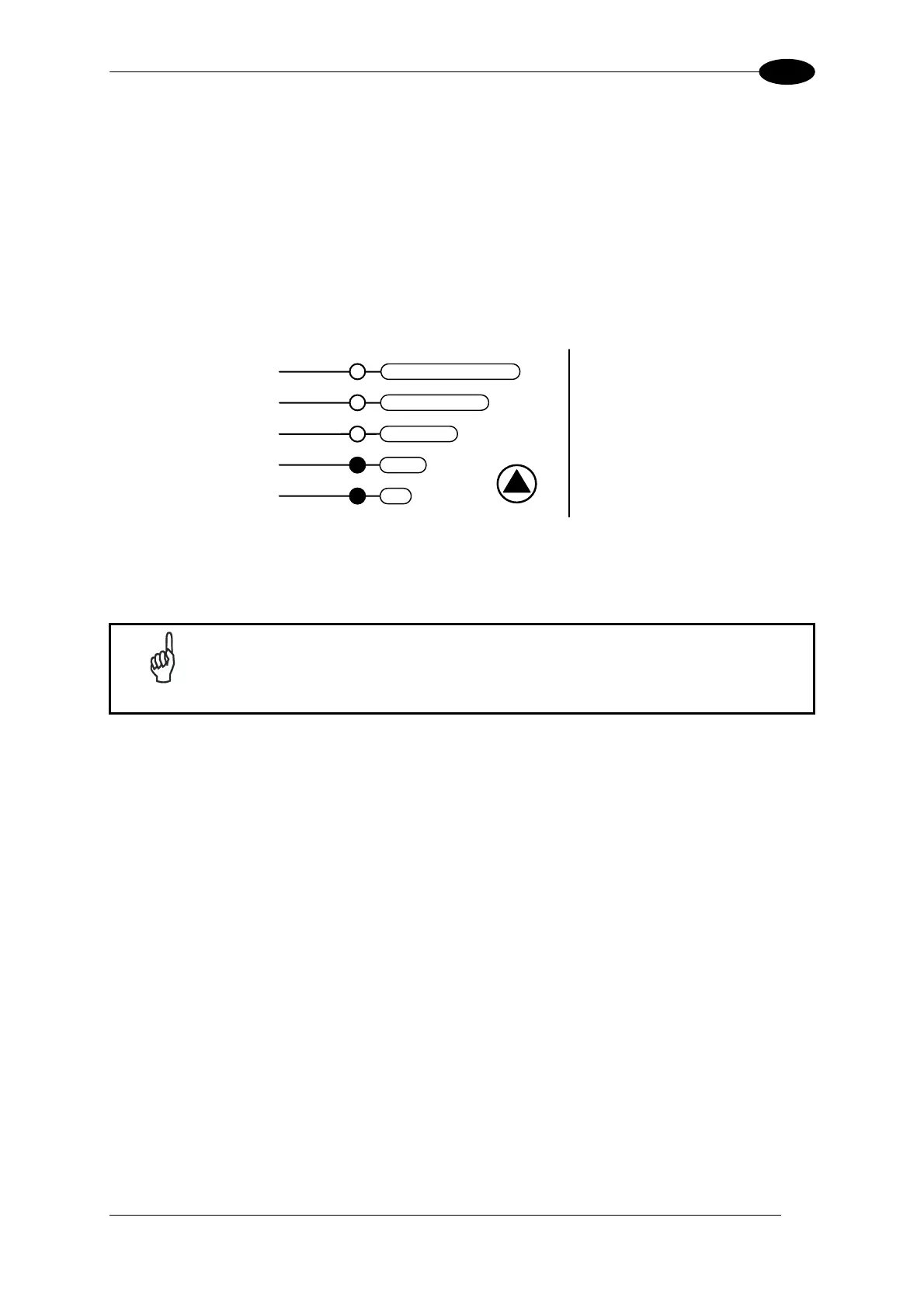

Figure 10 – X-PRESS™ Interface: Test Mode Function
3. To exit the Test Mode, press the X-PRESS™ push button once.
NOTE
By default, the Test Mode exits automatically after two minutes.
15
