INTRODUCTION
2
2.3.2 X-PRESS™ Functions
Quick access to the following functions is provided by
an easy procedure using the push button:
1 – Press the button (the STATUS LED will give a
visual feedback).
2 – Hold the button until the specific function LED is
on (TEST, LEARN or SETUP).
3 – Release the button to enter the specific function.
READY
GOOD
T
RIGGER
COM
STATUS
SETUP
LEARN
T
EST

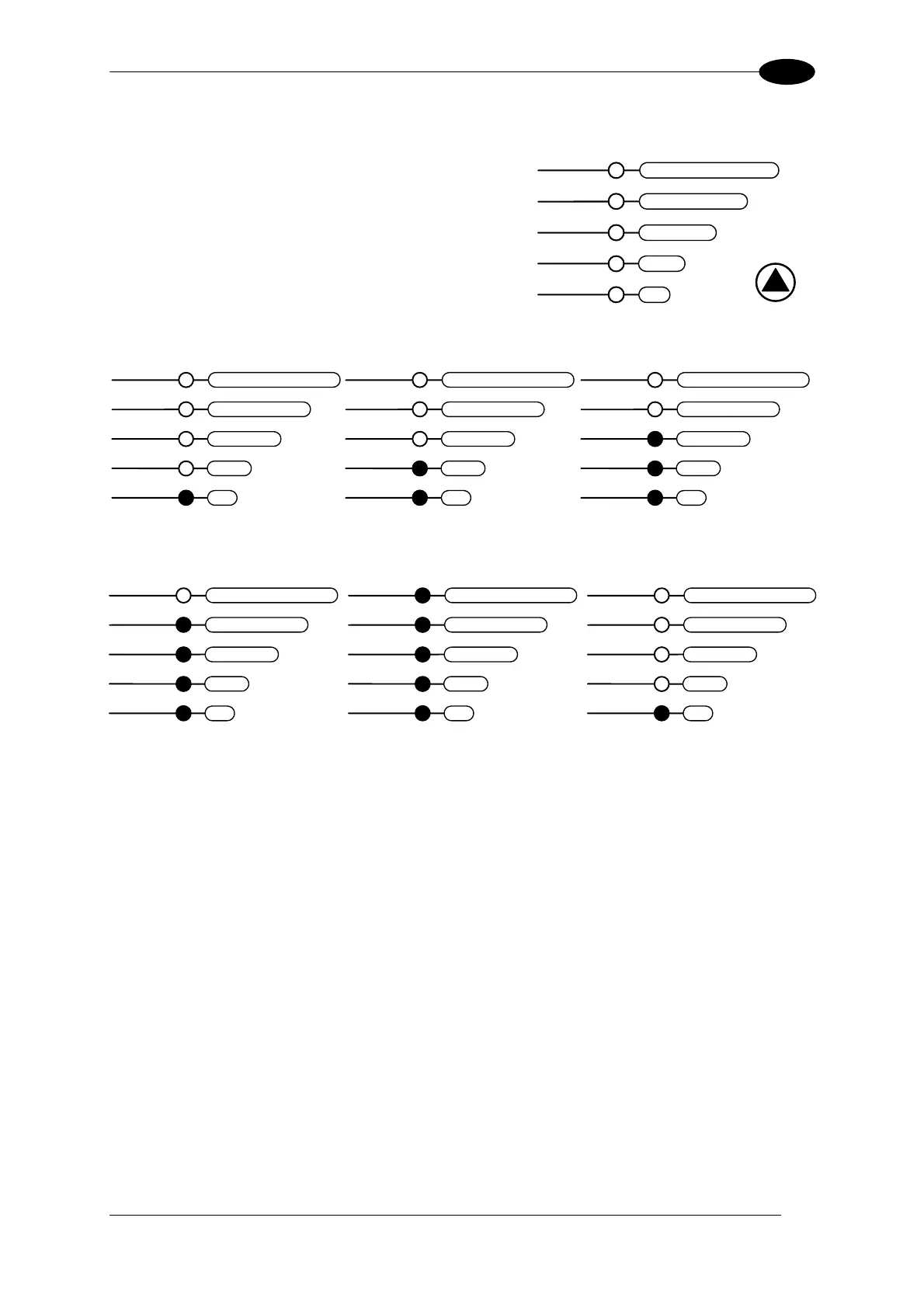

Once button is pressed, the cycle of LEDs activation is as follows:
READY
GOOD
T
RIGGER
COM
STATUS
SETUP
LEARN
T
EST
READY
GOOD
T
RIGGER
COM
STATUS
SETUP
LEARN
T
EST
READY
GOOD
T
RIGGER
COM
STATUS
SETUP
LEARN
T
EST

Release button to
Exit

Release button to
enter Test Mode

Release button to
enter AutoLearn
READY
GOOD
T
RIGGER
COM
STATUS
SETUP
LEARN
T
EST
READY
GOOD
T
RIGGER
COM
STATUS
SETUP
LEARN
T
EST
READY
GOOD
T
RIGGER
COM
STATUS
SETUP
LEARN
T
EST

Release button to
enter AutoSetup

Release button to
enter Focus Lock/Unlock
 (cycle)
Release button to
Exit
Test Mode Function
Once entered, the Bar-Graph on the five LEDs is activated and if the scanner starts reading
barcodes the Bar-Graph shows the Good Read Rate. In case of no read condition, only the
STATUS LED is on and blinks.
To exit the Test Mode, press the X-PRESS™ push button once.
