CBX ELECTRICAL CONNECTIONS
4
OUTPUT CONNECTIONS USING DS4800 POWER
Power to Output
Output device Signal
Output device
Reference
Output Device

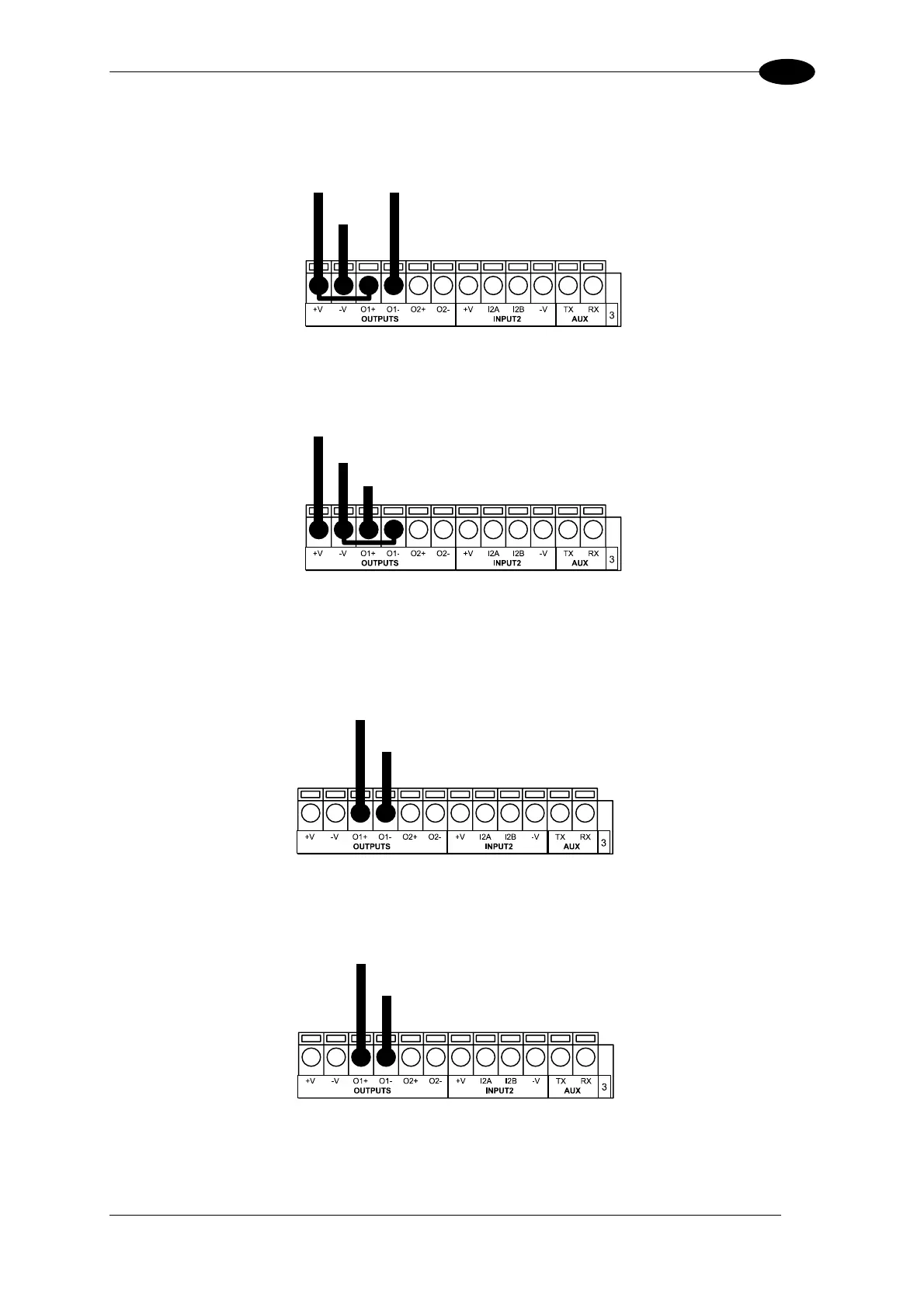

Figure 40 - Open Emitter Output Using DS4800 Power
Power to
Output device
Output device
Reference
Output Device
Output
Signal
Figure 41 - Open Collector Output Using DS4800 Power
OUTPUT CONNECTIONS USING EXTERNAL POWER
Pulled up to External
Output Device Power
Output
Signal
Output Device
Figure 42 - Open Emitter Output Using External Power
Pulled down to External
Output Device Reference
Output
Signal
Output Device
Figure 43 - Open Collector Output Using External Power
V
CE
max = 30 Vdc
I max = 40 mA continuous
49
