1 FALCON™ X3+
32
4
4.2 WINDOWS CE TOUCH SCREEN CALIBRATION
In Windows CE, at the very first Falcon X3+ startup, following a clean boot to restore
the registry to default values, the mobile computer startup (see par. 4.1) is preceded
by the touch screen calibration screen. The touch screen calibration will also appear
when the mobile computer is hard reset (cold boot), but the user may press Esc to
exit from the calibration.
The user must calibrate the touch screen (see par. 4.6.7)

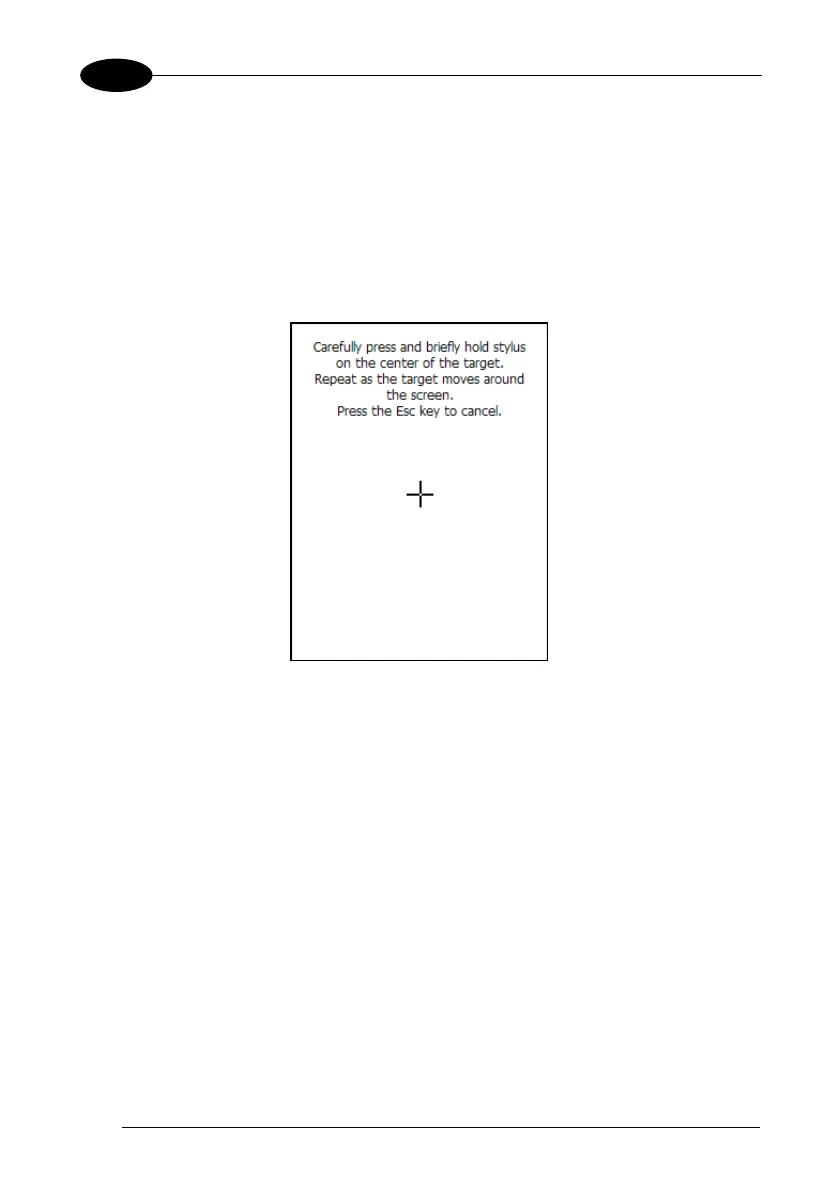

Touch Screen Calibration Screen

Datalogic falcon x3+ Specifications

General

Display diagonal	3.5 \
Display resolution	640 x 480 pixels
Display number of colors	65536 colors
Flash memory	1 GB
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Processor family	PXA 310
Built-in processor	PXA310
Processor frequency	0.806 GHz
Processor manufacturer	Marvell
GPS (satellite)	No
Operating system installed	Windows Embedded Handheld 6.5
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.1+EDR
Rear camera resolution (numeric)	3.1 MP
USB 2.0 ports quantity	1
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Battery capacity	5200 mAh
RFID reader	-
Product color	Black
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128), Intelligent Mail, PLANET, POSTNET, RM4SCC / KIX, U.P.C.
International Protection (IP) code	IP65
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code

Weight and Dimensions

Depth	168 mm
Width	88 mm
Height	225 mm
Weight	674 g
