Datalogic falcon x3+ User Manual

USE AND FUNCTIONING
91
4
Removing a Password
To remove a password:
1. Enter blanks in both “Password” fields.
2. Select/tap “Set Password”.

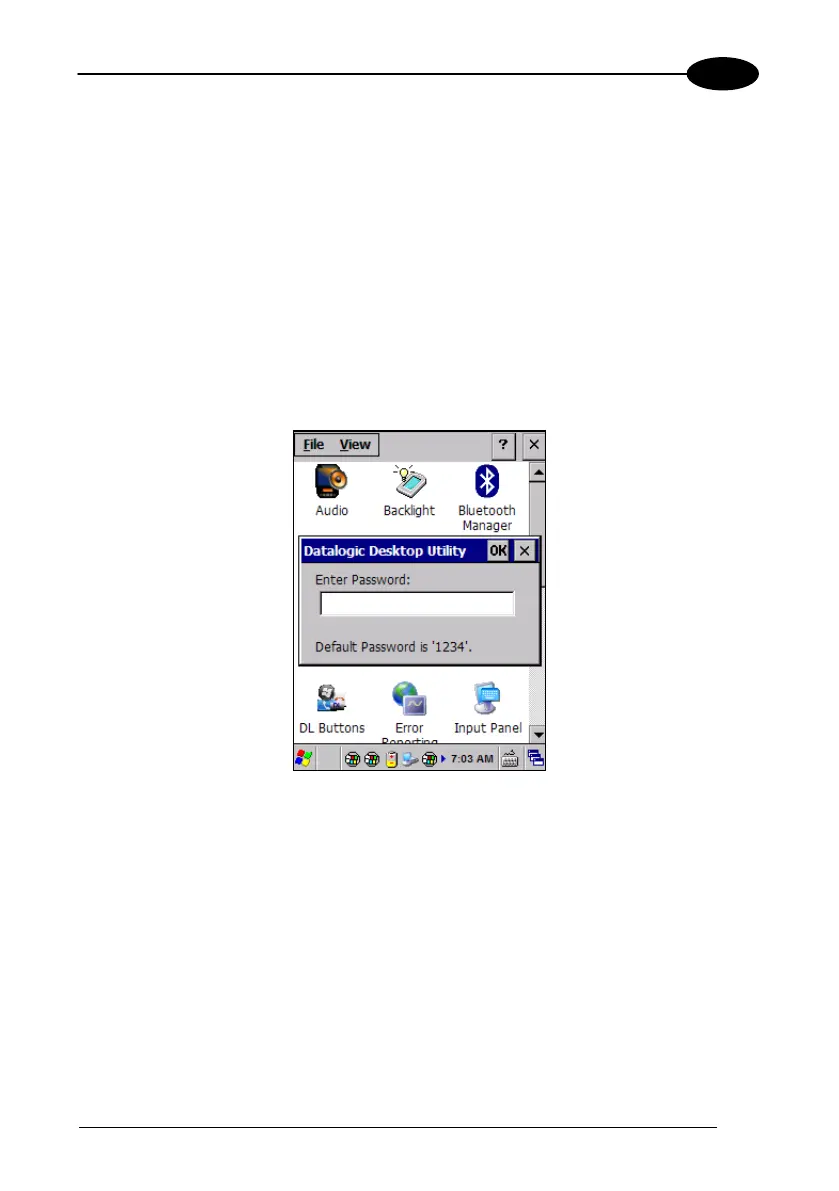

Password Request Dialog Box
Once the password is set, the next time you open the “Datalogic Desktop Utility”, the
DDU Password dialog box opens.
This dialog box will only open if a password was defined.
1. Type in your password using either the keypad on the unit, or using the stylus on
the soft input panel (SIP).
If you enter an incorrect password, the system will prompt you to input the
correct one.
2. Select/tap “OK” to verify the password. Or tap “X” to cancel.

Datalogic falcon x3+ Specifications

General

Display diagonal	3.5 \
Display resolution	640 x 480 pixels
Display number of colors	65536 colors
Flash memory	1 GB
Internal memory	0.256 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash), MicroSDHC
Processor family	PXA 310
Built-in processor	PXA310
Processor frequency	0.806 GHz
Processor manufacturer	Marvell
GPS (satellite)	No
Operating system installed	Windows Embedded Handheld 6.5
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.1+EDR
Rear camera resolution (numeric)	3.1 MP
USB 2.0 ports quantity	1
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Battery capacity	5200 mAh
RFID reader	-
Product color	Black
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128), Intelligent Mail, PLANET, POSTNET, RM4SCC / KIX, U.P.C.
International Protection (IP) code	IP65
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code

Weight and Dimensions

Depth	168 mm
Width	88 mm
Height	225 mm
Weight	674 g
