1 FALCON™ X3+
4.3.2 Imager Data Capture
The Falcon X3+ Imager captures a picture of the entire bar code. The omni-
directional scanning does not require that the operator orient the bar code to align
with the scan pattern.
To read a 1D or 2D code, simply point the Falcon X3+ Imager model onto the code
and press the SCAN Key or the pistol trigger.
The Falcon X3+ Imager uses an intelligent aiming system pattern, similar to those on
cameras, indicating the field of view, which should be positioned over the code:

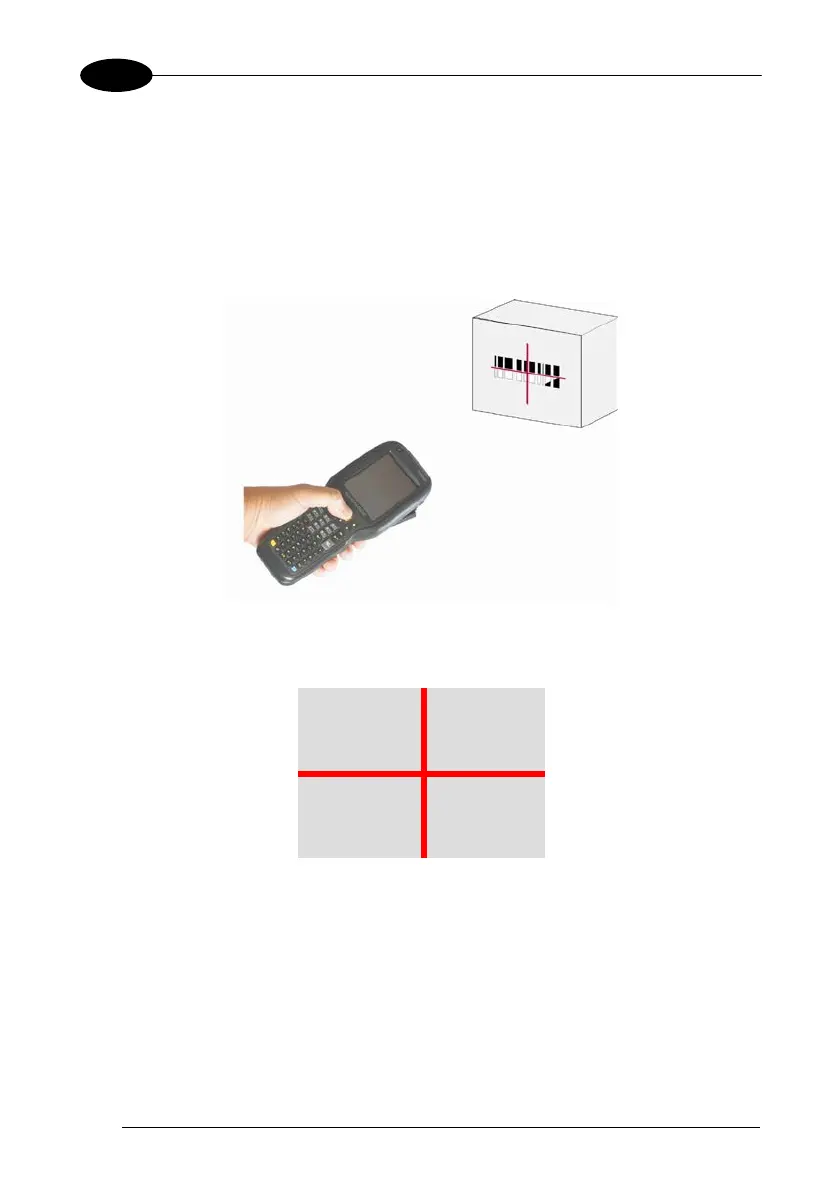

Aiming System
If the aiming system pattern is centered over the entire symbology as shown in the
following figure, either wait for the timeout or release the Scan key or the trigger to
capture the image.
A red beam illuminates the code, which is captured and decoded. You will get a good
read.
