Datalogic Gryphon GBT4400 User Manual

Charging the Batteries
Quick Reference Guide 17
Replacing the Batteries

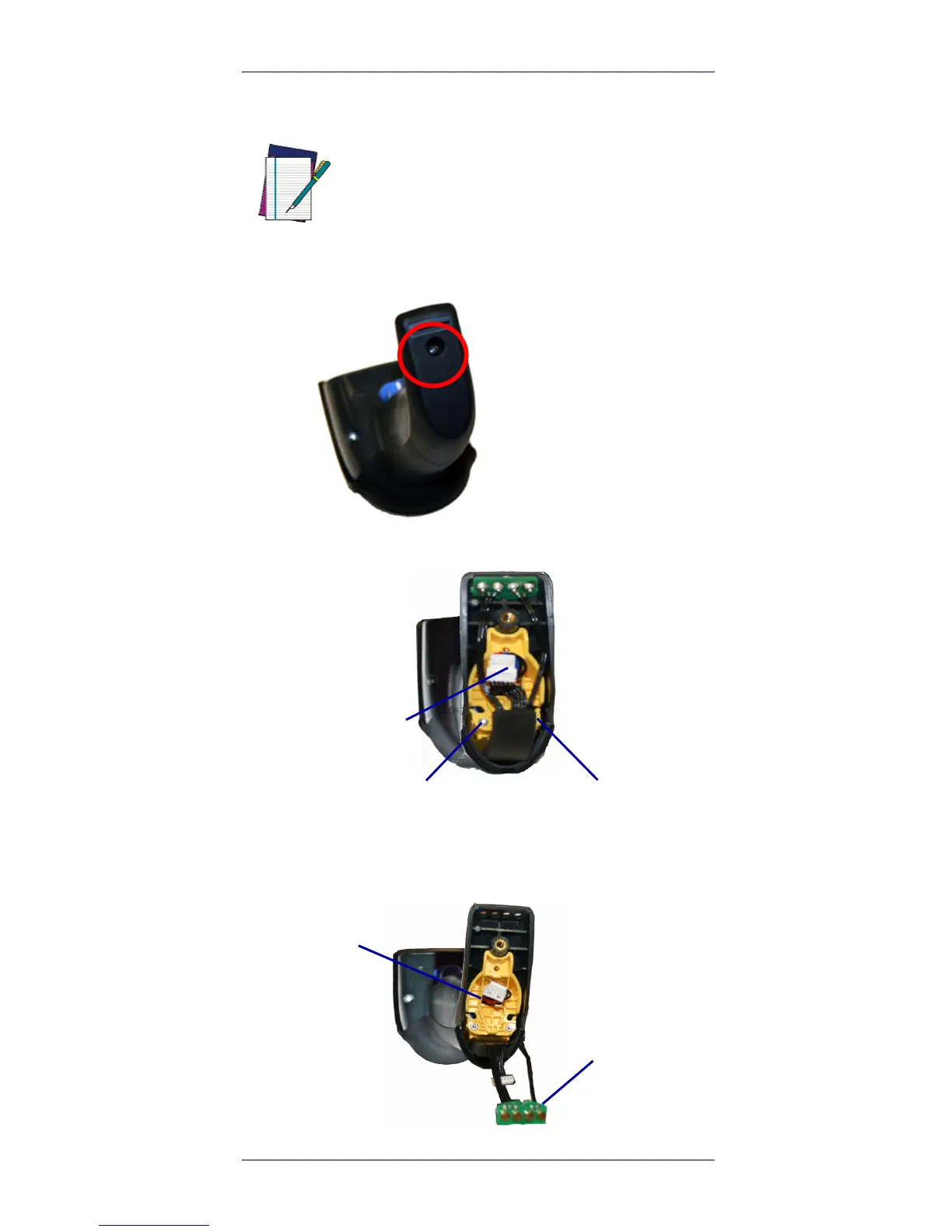

Use the following procedure to change the reader’s battery:
1. With a screwdriver, unscrew the battery cover screw.
2. Unplug the white connector, and remove the two
screws securing the battery holder.
3. Carefully lift out the gold contacts circuit, and remove
the battery holder cap while letting the white connec-
tor pass through the hole in the battery holder (as
shown below).
NOTE
Before proceeding, read “Battery Safety” on the
preceding pages. Datalogic recommends annual
replacement of rechargeable battery packs to
ensure maximum performance.
Connector
Screw
Screw
Pass-through
hole
Gold
contacts
circuit

Datalogic Gryphon GBT4400 Specifications

General

Connectivity	Bluetooth
IP Rating	IP52
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-20 to 70 °C / -4 to 158 °F
Dimensions	18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Scanner Type	2D Imager
Battery	Lithium-Ion
Drop Resistance	1.8 m (6 ft) to concrete
Light Source	Red LED
Image Sensor	CMOS
Decode Capabilities	1D, 2D, Postal Codes, Stacked Codes
Scan Rate	60 frames/sec
Interface	USB, RS-232, Keyboard Wedge
Power Supply	5 VDC +/- 10%
Humidity	5 to 95% non-condensing
Drop Specification	1.8 m (6 ft) to concrete
