Datalogic Gryphon GBT4400 User Manual

Positioning the Base Station
Quick Reference Guide 3
Positioning the Base Station
The base station/charger may be set up in desk application to
hold the reader in three different positions, either a horizontal
or standing or vertical position, in order to provide the most
comfortable use depending on the needs.

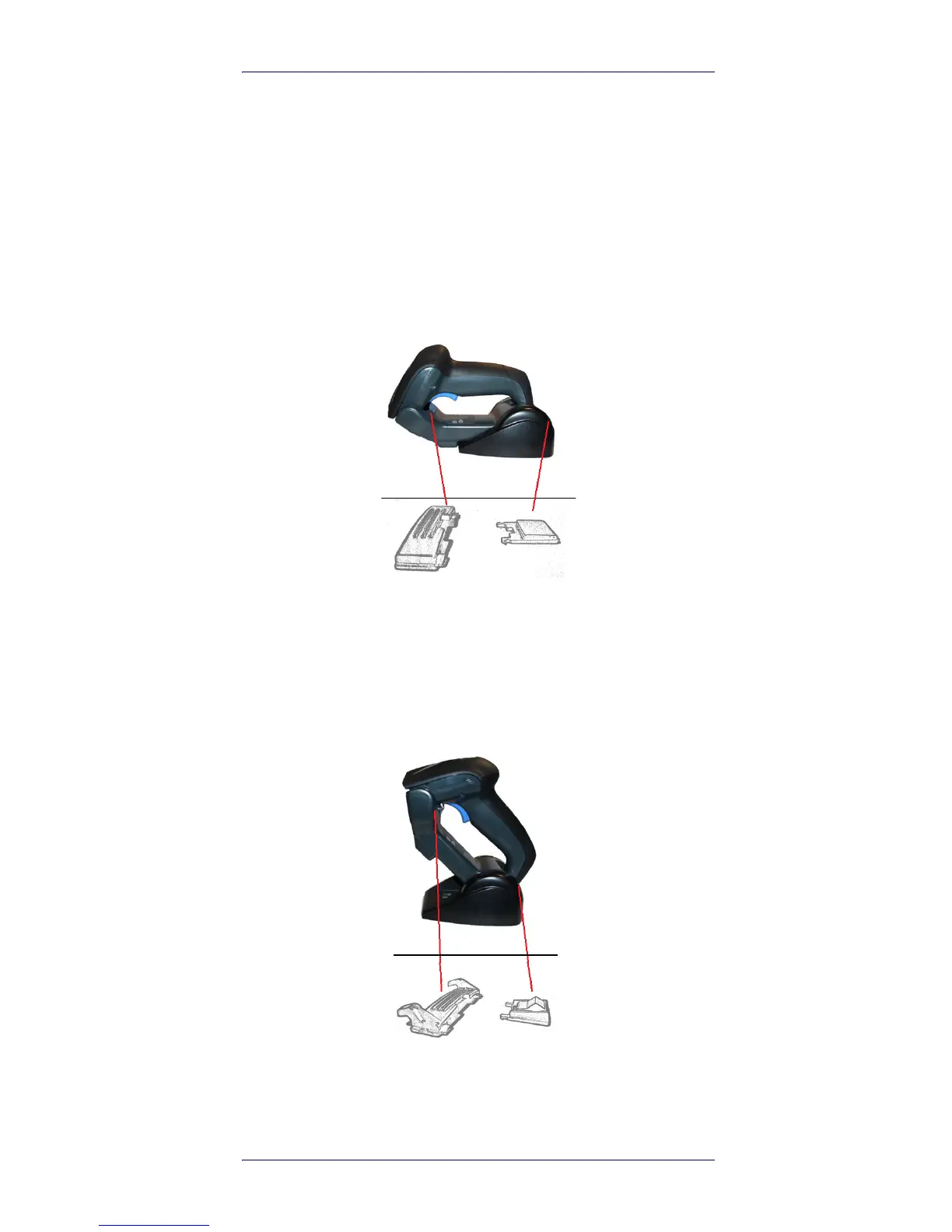

Base Station Positions and related clips to be used
Figure 1- Horizontal Position
This position is preferred, unless a different specific position-
ing is required, for its outmost ease of insertion as well as the
minimum effort and attention required to customer when
docking the scanner.
Figure 2- Standing Position
This position is preferred if the scanner is to be used in stand
mode and not needed to be often removed from base station.

Datalogic Gryphon GBT4400 Specifications

General

Connectivity	Bluetooth
IP Rating	IP52
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-20 to 70 °C / -4 to 158 °F
Dimensions	18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Scanner Type	2D Imager
Battery	Lithium-Ion
Drop Resistance	1.8 m (6 ft) to concrete
Light Source	Red LED
Image Sensor	CMOS
Decode Capabilities	1D, 2D, Postal Codes, Stacked Codes
Scan Rate	60 frames/sec
Interface	USB, RS-232, Keyboard Wedge
Power Supply	5 VDC +/- 10%
Humidity	5 to 95% non-condensing
Drop Specification	1.8 m (6 ft) to concrete
