Setting Up the Reader
Quick Reference Guide 5
Mounting Bracket
The GFS4400 can be mounted onto a stationary surface using a
bracket as shown below. Just attach to the bottom of the reader
using the provided screws, as shown in the two figures below. For
specific size information, see "GFS4400 Dimensions" on page 25.

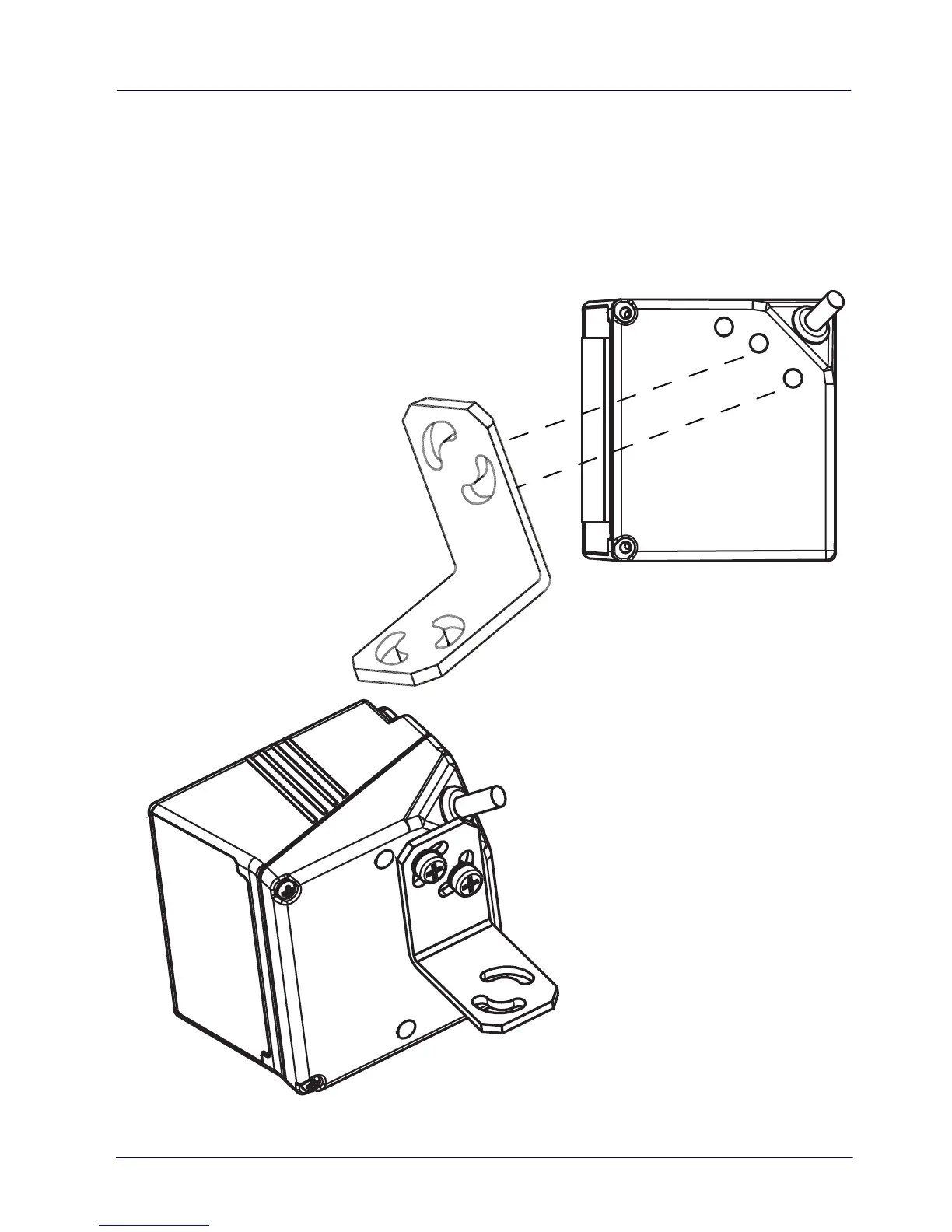

Mounting the
Bracket
Bracket Attached
