Interface Related Features
3-20 Magellan
®
1400i
RS-232 Interface Features — cont.
ACK Character
NAK Character
START / END

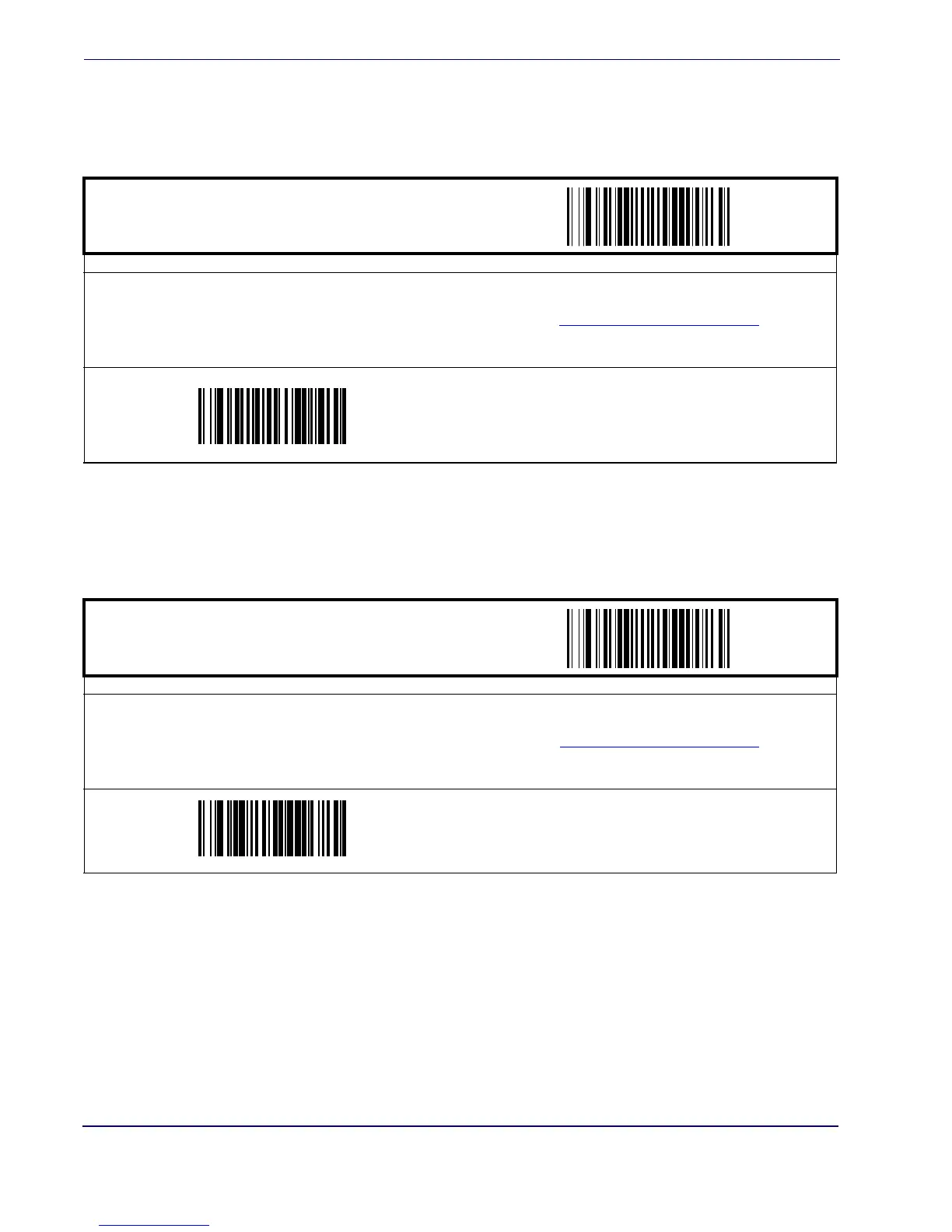

PROGRAMMING BAR CODES
Sets the ACK character from the set of ASCII characters or any decimal value from 000 to 255. Pad entries of less than three digits
with zeros, as in “005”. To configure this feature, scan the “START/END” bar code above to place the unit in Programming Mode,
then the “Set ACK Character,” followed by the digits from the Alphanumeric table in
Appendix C, Alpha-Numeric Pad representing
your desired character. Exit programming mode by again scanning the “START/END” bar code above.
DEFAULT SETTING FOR THIS FEATURE: 006 (ACK)
Set ACK Character
START / END
PROGRAMMING BAR CODES
Sets the NAK character from the set of ASCII characters or any decimal value from 000 to 255. Pad entries of less than three digits
with zeros, as in “005”. To configure this feature, scan the “START/END” bar code above to place the unit in Programming Mode,
then the “Set NAK Character,” followed by the digits from the Alphanumeric table in
Appendix C, Alpha-Numeric Pad representing
your desired character. Exit programming mode by again scanning the “START/END” bar code above.
DEFAULT SETTING FOR THIS FEATURE: 021 (!)
Set NAK Character
