Datalogic Magellan 2300HS Product Reference Guide

Programming
5-84 Magellan
TM
2200VS and 2300HS
RS-232 ACK NAK Retry Count
This feature sets the number of times for the scanner to retry a label trans-
mission under a retry condition.
To set the RS-232 ACK NAK Retry Count:
1. Scan the SWITCH bar code.
2. Scan the bar code,
SET RS-232 ACK NAK RETRY COUNT below.
You’ll need to cover any unused bar codes on this and the facing
page to ensure that the scanner reads only the bar code you intend
to scan.
3. Scan the appropriate digits from the keypad in
Appendix C that rep-
resent the desired number. The selectable range is 0-255 resets. Pad
all single and double digit numbers with leading zeroes to yield a
three-digit entry (000-255).
4. The scanner will automatically exit Programming Mode when the
appropriate amount of digits have been scanned.

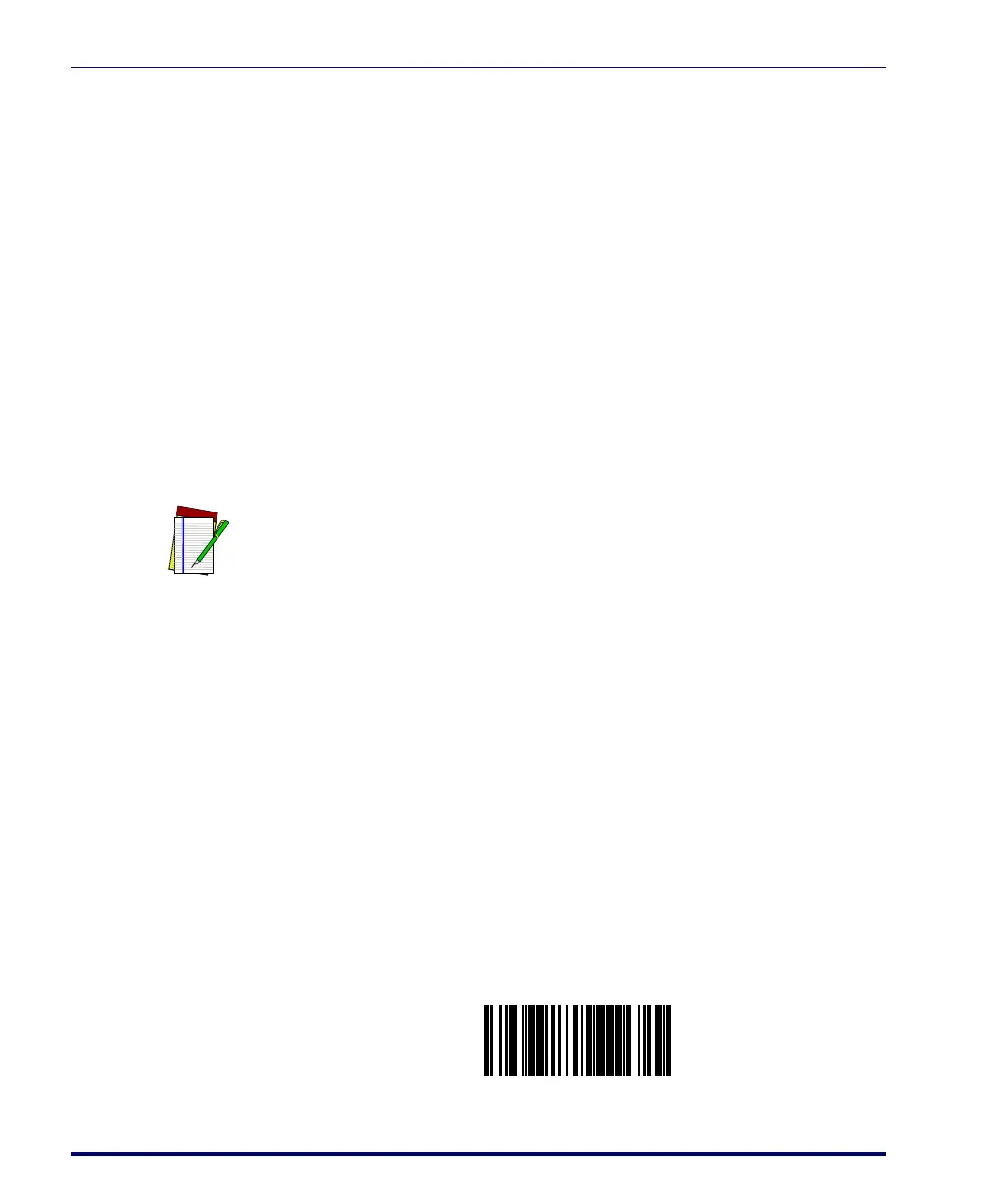

SET RS-232 ACK NAK RETRY COUNT
NOTE
A setting of 255 specifies “retry forever.”

Datalogic Magellan 2300HS Specifications

General

Scanner type	1D
Decoding standards	GS1 DataBar
Input voltage	90 - 265 V
Power requirements	47-63 Hz
Power consumption (standby)	2.5 W
Dimensions (WxDxH)	152 x 152 x 86 mm
Certification	RoHS
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	1100 g
