Datalogic Magellan 2300HS Product Reference Guide

Product Reference Guide A-1
Appendix A
LED/Beeper Indications & Controls
Figure A-1 shows the operator’s controls and indicators for both models.
The descriptions following identify the use or function of each compo-
nent.

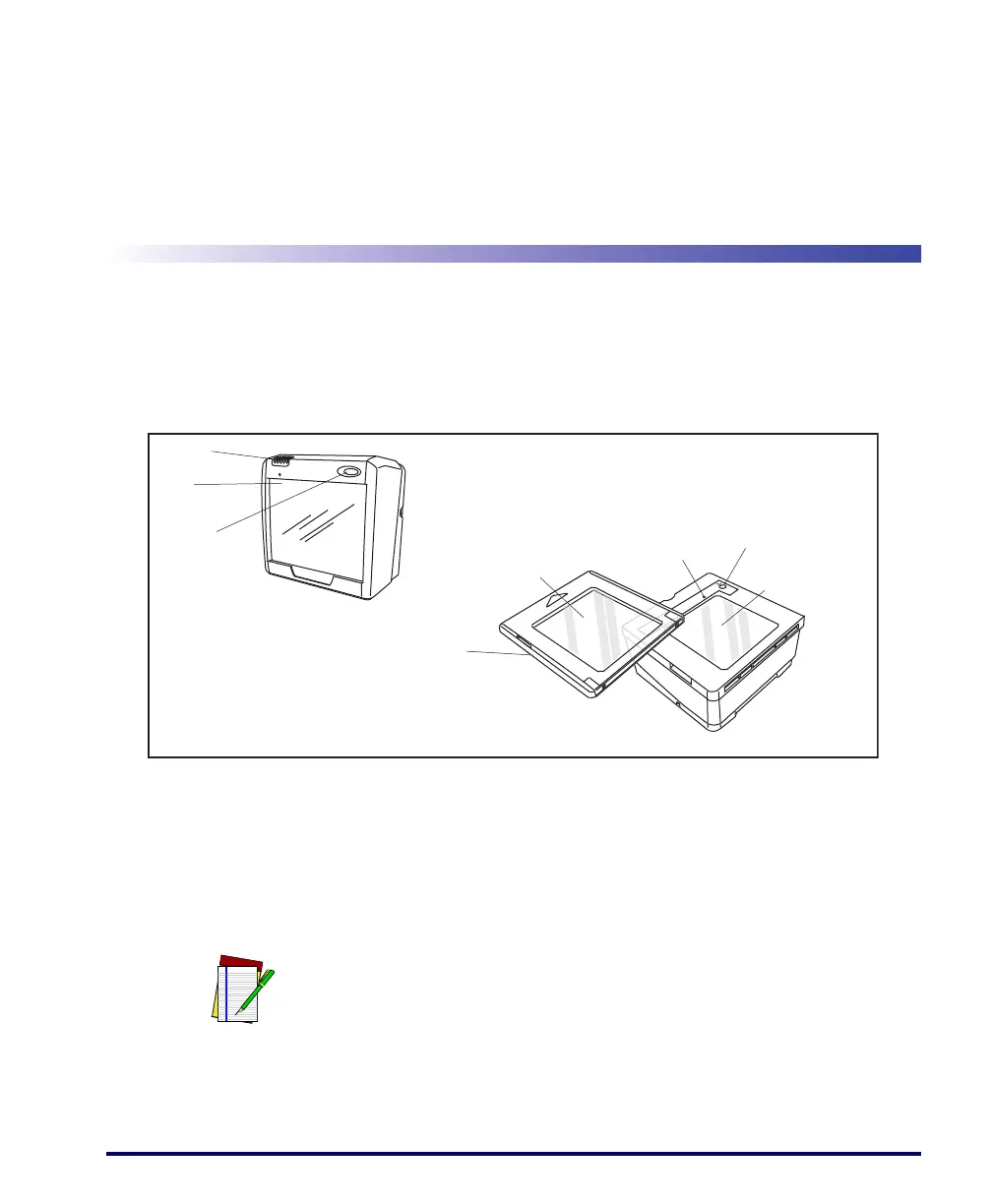

Figure A-1. Scanner Controls and Indicators
Volume/Tone Push Button
The Volume/Tone Push Button also performs multiple functions depend-
ing upon the duration of time it is pressed:
Speaker
Scan
Window
U
pp
er Sca
n
Win
dow
Lower
S
ca
n
Win
dow
Indicator
LED plus
Volume/Tone
Push Button
Volume/Tone
P
us
h B
u
tt
on
In
d
i
ca
t
o
r LE
D
Model 2200VS
Model 2
300
H
S
To
p
Cove
r
NOTE
Volume changes made using the Volume/Tone Push Button are lost
when the scanner is powered-down and are reset to the configured set-
ting. If you wish to permanently change the volume, use the special
programming labels in the Product Reference Guide.

Datalogic Magellan 2300HS Specifications

General

Scanner type	1D
Decoding standards	GS1 DataBar
Input voltage	90 - 265 V
Power requirements	47-63 Hz
Power consumption (standby)	2.5 W
Dimensions (WxDxH)	152 x 152 x 86 mm
Certification	RoHS
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	1100 g
