Installation: Model 2200VS
Product Reference Guide 2-5

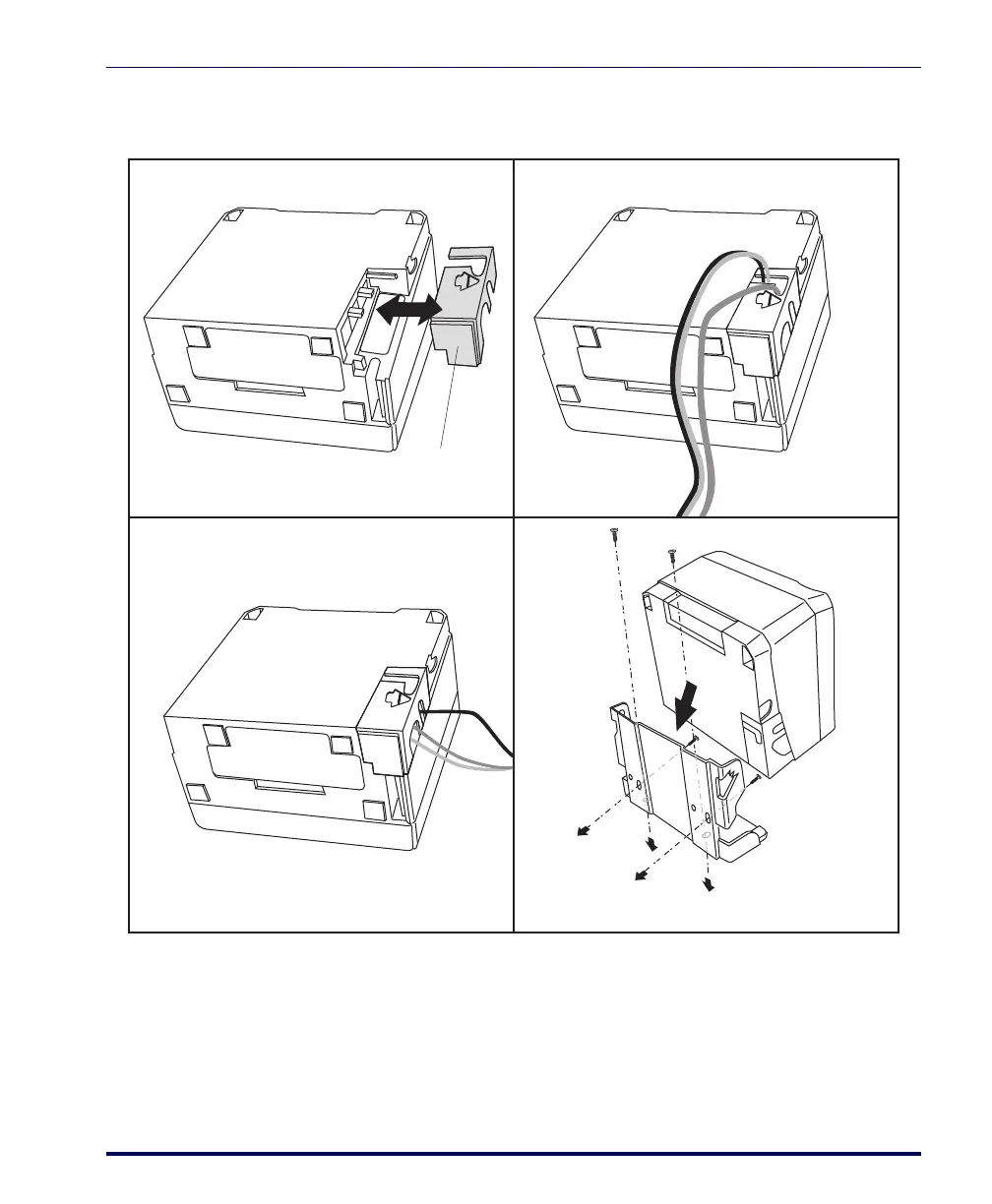

Figure 2-2. Magellan
®
2200VS Installation
ab
c
d
Connector Cover
Route cables for countertop mount
Route cables for wall mount
To Countertop
To Wall
