Datalogic Magellan 2300HS Product Reference Guide

Flowcharts
Product Reference Guide 4-5

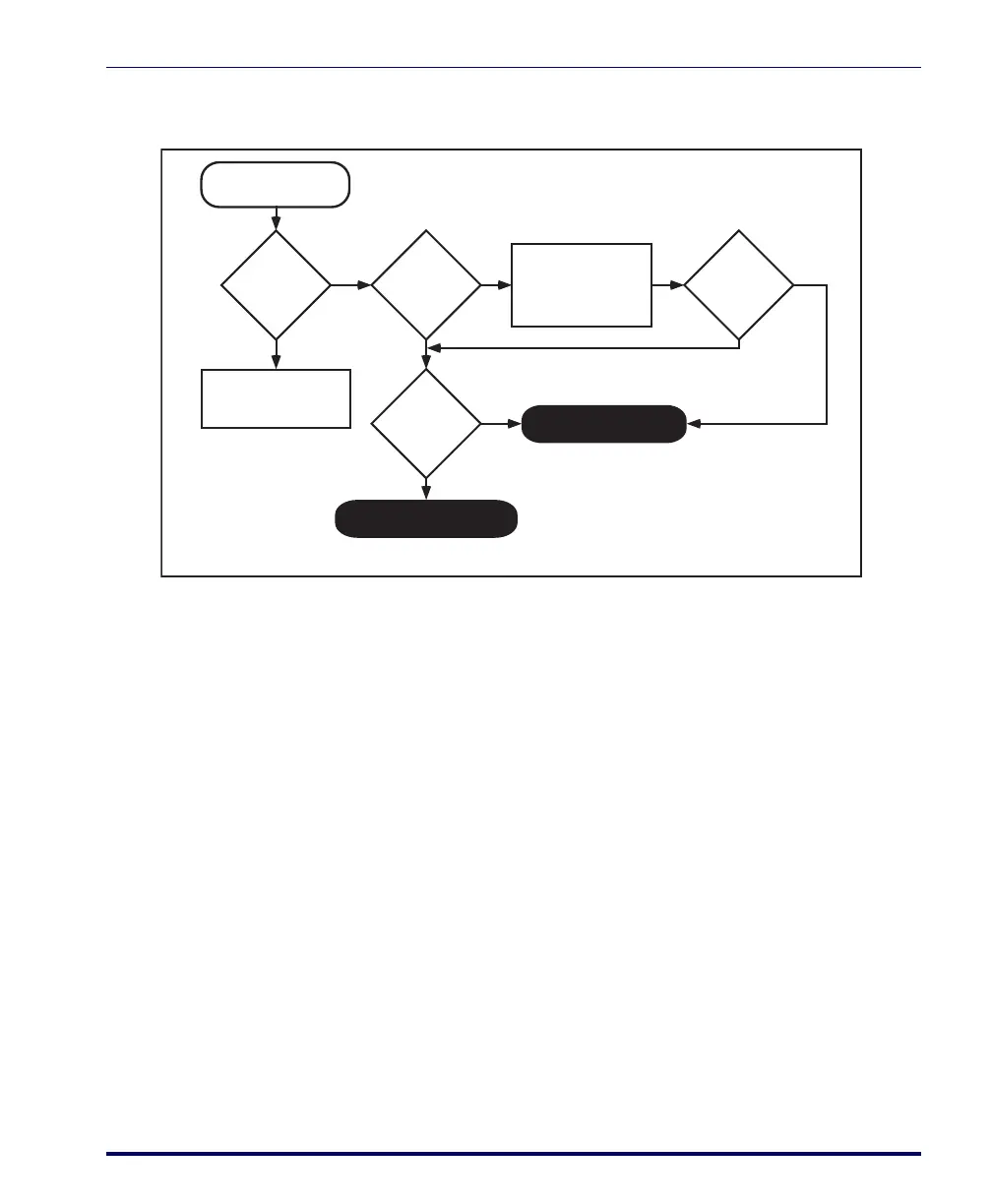

Figure 4-2. Problem Isolation: Selftest
Figure 4-3. Problem Isolation: Poor/No Reading
Call Tech Support
NO
YES
Error
Beeps
?
Unit passes Selftest
YES
NO
Is the
LED
blinking in
error
?
YES YES
NO
NO
Is the
error code
1
?
Is the
error code
1
?
SELFTEST
START
No interface selected
(Null Interface).
Select an interface.
Scan the Factory
Defaults bar code in
Section 6 to enable the
default configuration
file. Restart the unit.

Datalogic Magellan 2300HS Specifications

General

Scanner type	1D
Decoding standards	GS1 DataBar
Input voltage	90 - 265 V
Power requirements	47-63 Hz
Power consumption (standby)	2.5 W
Dimensions (WxDxH)	152 x 152 x 86 mm
Certification	RoHS
Product color	Gray
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Weight	1100 g
