PROGRAMMING STRINGS
13
3
HOST DEVICE
<ESC> CHR1 CHR2 DATA
(Set parameter 1)
.
.
.
<ESC> I A #
(End of Programming Sequence)
<ESC> K <CR><LF> or
<ESC> W 1 <CR><LF>
<ESC> CHR1 CHR2 DATA
(Set parameter 2)
<ESC> I A #
(End of Programming Sequence)
<ESC> K <CR><LF> or
<ESC W 1 <CR><LF>
.
.
.

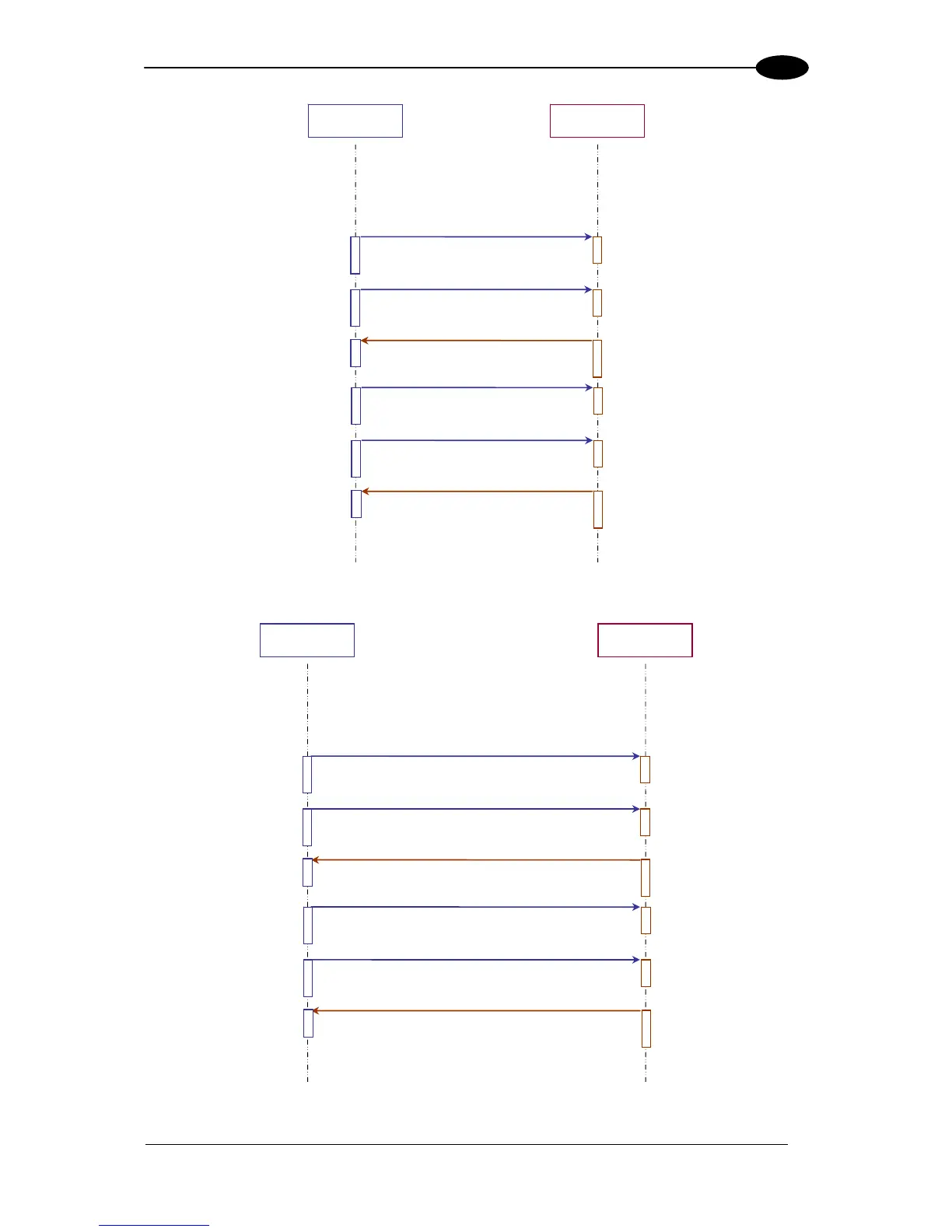

Figure 2 – Two-Parameter Programming Session
HOST DEVICE
<ESC> CHR1 CHR2
(Get parameter 1)
.
.
.
<ESC> I D #
(End of Get Sequence)
<ESC> CHR1 CHR2 DATA <ESC> I A # or
<ESC> W 1 <CR><LF>
<ESC> CHR1 CHR2
(Get parameter 2)
<ESC> I D #
(End of Get Sequence)
<ESC> CHR1 CHR2 DATA <ESC> I A # or
<ESC W 1 <CR><LF>
.
.
.
Figure 3 – Two-Parameter Get Session
