TYPICAL LAYOUTS
85
6

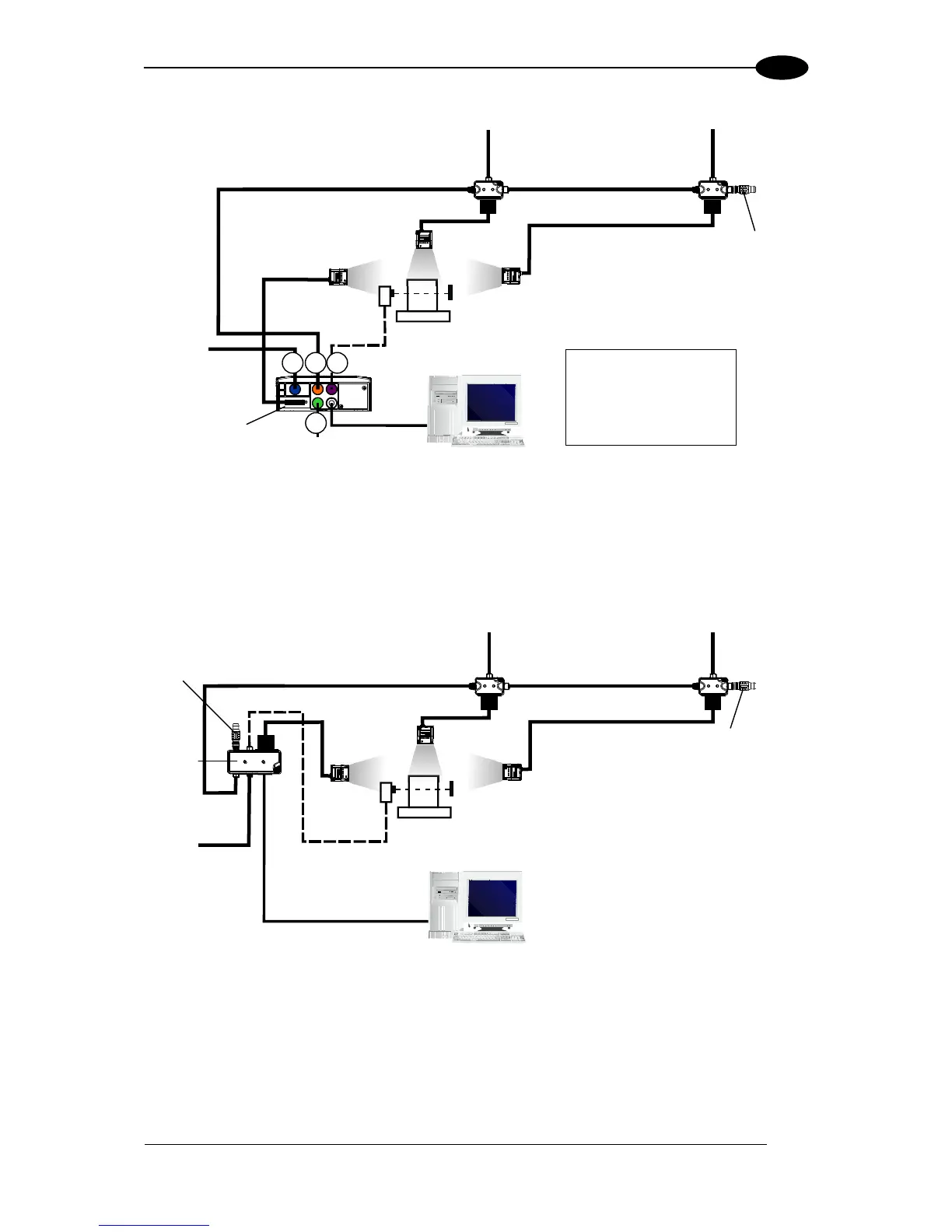

Figure 94 - ID-NET™ M/S Synchronized Layout
Matrix 210™ Master with CBX500 + Matrix 210™ Slaves with QL150
Figure 95 - ID-NET™ M/S Synchronized Layout with QL300 Serial Interface to Host
Host
QL150
PS
Power
Main Interface
CBL-1490
ID-NET
Terminator
The ID-NET network must be terminated
inserting an ID-NET terminator into the
QL300 (Master) and into the last QL in
the network.
Slave Nodes
CBL-1480-xx
CAB-PW-EXT
CBL-1480-xx
Aux
QL300
Master
QL150
ID-NET™
Aux
CBL-1496
ID-NET
Terminator
Host
QL150
3
1
4
PS
Power
CBX500
CBL-1490
ID-NET
Terminator
The ID-NET network must be terminated through
the internal switch of the CBX500 and inserting an
ID-NET terminator into the last QL in the network.
Slave Nodes
5
CBL-1480-xx
CAB-PW-EXT
CBL-1480-xx
 BA600 ID-NET™ Out
 BA400 Ext. Power
 BA500 Trigger
 BA300 Service
QL150
Master
CAB-AUX03
CAB-AUX03
Main
ID-NET™
CAB-AUX03
