1.4.2 Height of the detection zone
The controlled height is the height protected by the safety light curtain.

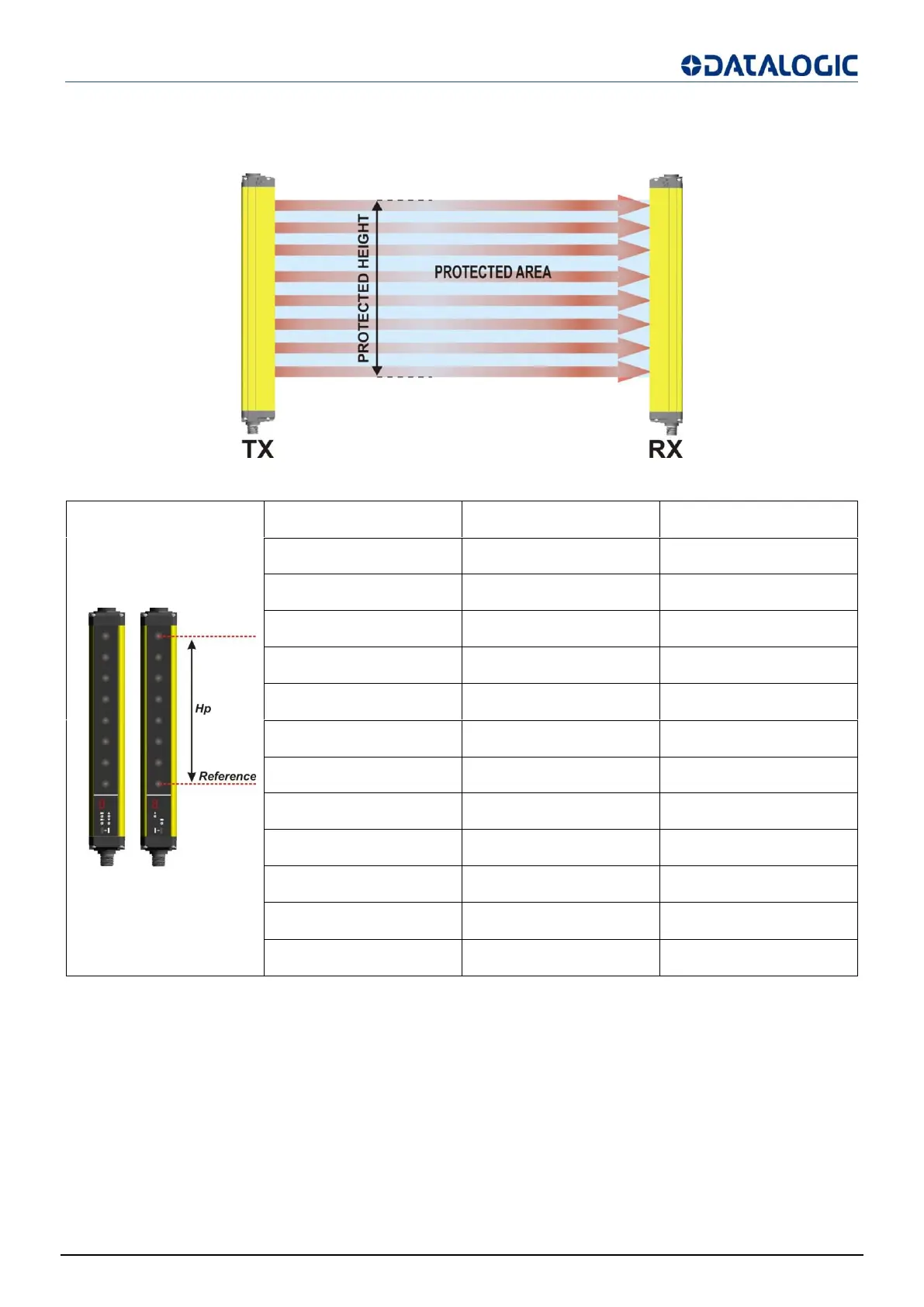

Fig 2 - Detection Zone
Model 14mm
Model 30mm
Controlled height
Hp (mm)
SG4-14-015-OO-E/X
SG4-30-015-OO-E/X
150
SG4-14-030-OO-E/X
SG4-30-030-OO-E/X
300
SG4-14-045-OO-E/X
SG4-30-045-OO-E/X
450
SG4-14-060-OO-E/X
SG4-30-060-OO-E/X
600
SG4-14-075-OO-E/X
SG4-30-075-OO-E/X
750
SG4-14-090-OO-E/X
SG4-30-090-OO-E/X
900
SG4-14-105-OO-E/X
SG4-30-105-OO-E/X
1050
SG4-14-120-OO-E/X
SG4-30-120-OO-E/X
1200
SG4-14-135-OO-E/X
SG4-30-135-OO-E/X
1350
SG4-14-150-OO-E/X
SG4-30-150-OO-E/X
1500
SG4-14-165-OO-E/X
SG4-30-165-OO-E/X
1650
SG4-14-180-OO-E/X
SG4-30-180-OO-E/X
1800
