15.13 (SE-SR2) SAFETY RELAY
MODEL
DESCRIPTION
CODE
SE-SR2
Type 4 safety relay - 3 NQ 1 NC
95ACC6170

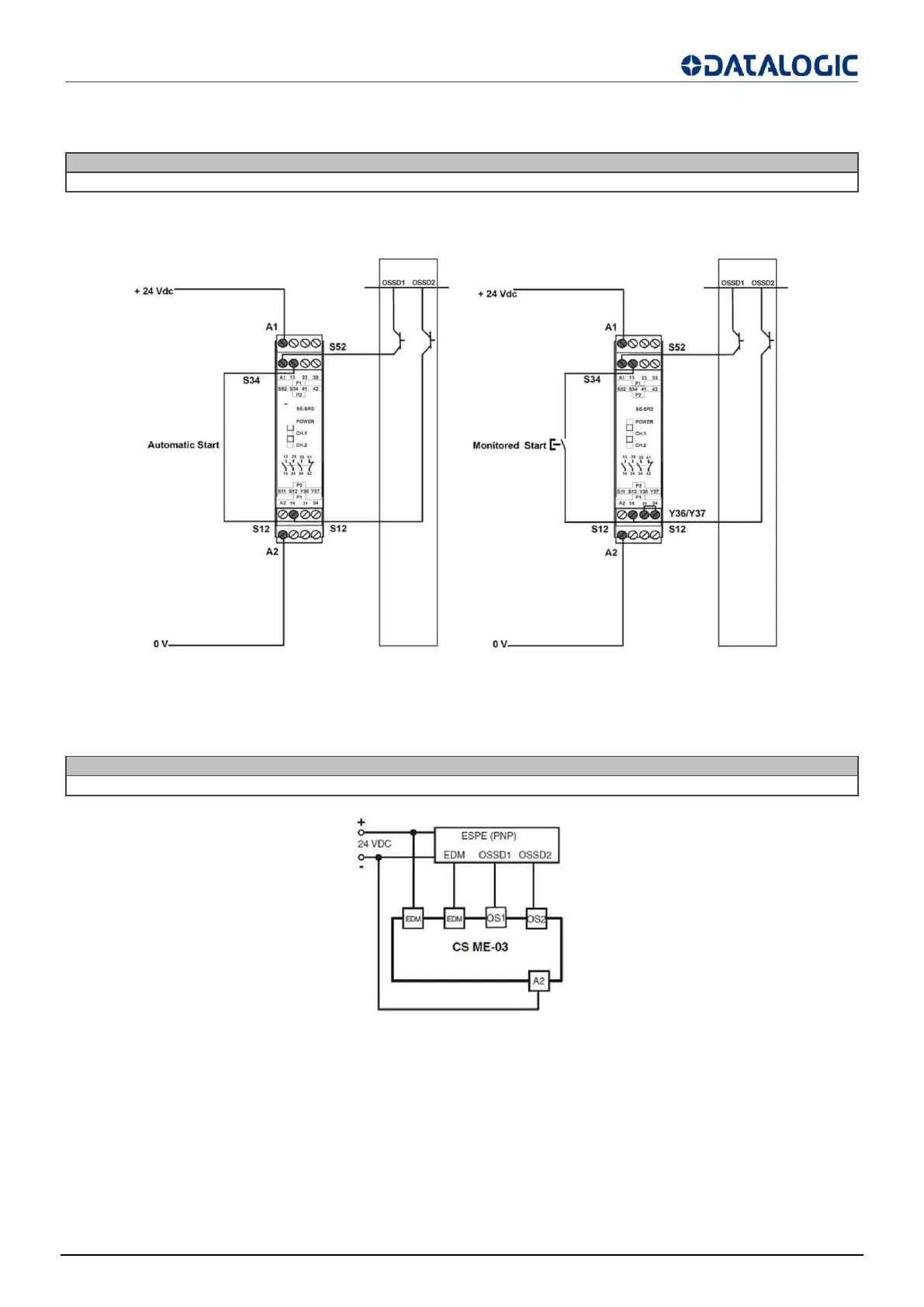

The drawing show the connection between the safety light curtain and the Type 4 safety relay of the SE-SR2 series
operating in the automatic Restart mode.
Fig 70 - Safety relay
15.14 (CSME-03VU24-Y14) EDM RELAY BOX
MODEL
DESCRIPTION
CODE
CSME-03VU24-Y14
EDM Relay
95ASE1270
Fig 71 - EDM Relay
