13 OVERALL DIMENSIONS

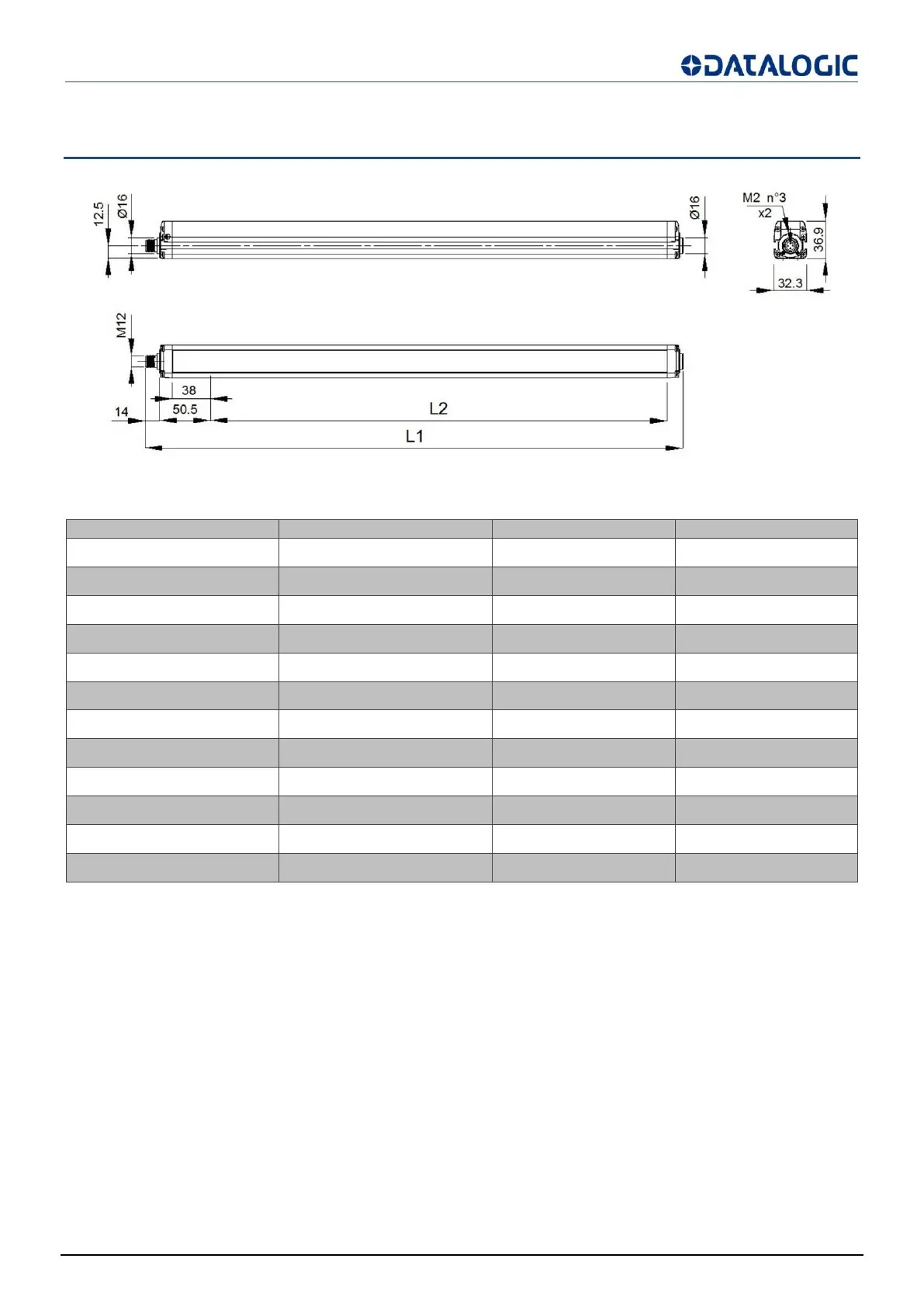

Fig 42 - Dimensions (mm)
MODEL 14mm
MODEL 30mm
L1 (mm)
L2 (mm)
SG4-14-015-OO-E/X
SG4-30-015-OO-E/X
233.3
153.3
SG4-14-030-OO-E/X
SG4-30-030-OO-E/X
383.2
303.2
SG4-14-045-OO-E/X
SG4-30-045-OO-E/X
533.2
453.3
SG4-14-060-OO-E/X
SG4-30-060-OO-E/X
683.2
603.2
SG4-14-075-OO-E/X
SG4-30-075-OO-E/X
833.2
753.3
SG4-14-090-OO-E/X
SG4-30-090-OO-E/X
983.2
903.2
SG4-14-105-OO-E/X
SG4-30-105-OO-E/X
1133.2
1053.2
SG4-14-120-OO-E/X
SG4-30-120-OO-E/X
1283.3
1203.3
SG4-14-135-OO-E/X
SG4-30-135-OO-E/X
1433.2
1353.2
SG4-14-150-OO-E/X
SG4-30-150-OO-E/X
1583.3
1503.3
SG4-14-165-OO-E/X
SG4-30-165-OO-E/X
1733.3
1653.3
SG4-14-180-OO-E/X
SG4-30-180-OO-E/X
1883.3
1803.3
