SG4 BASE
62/74

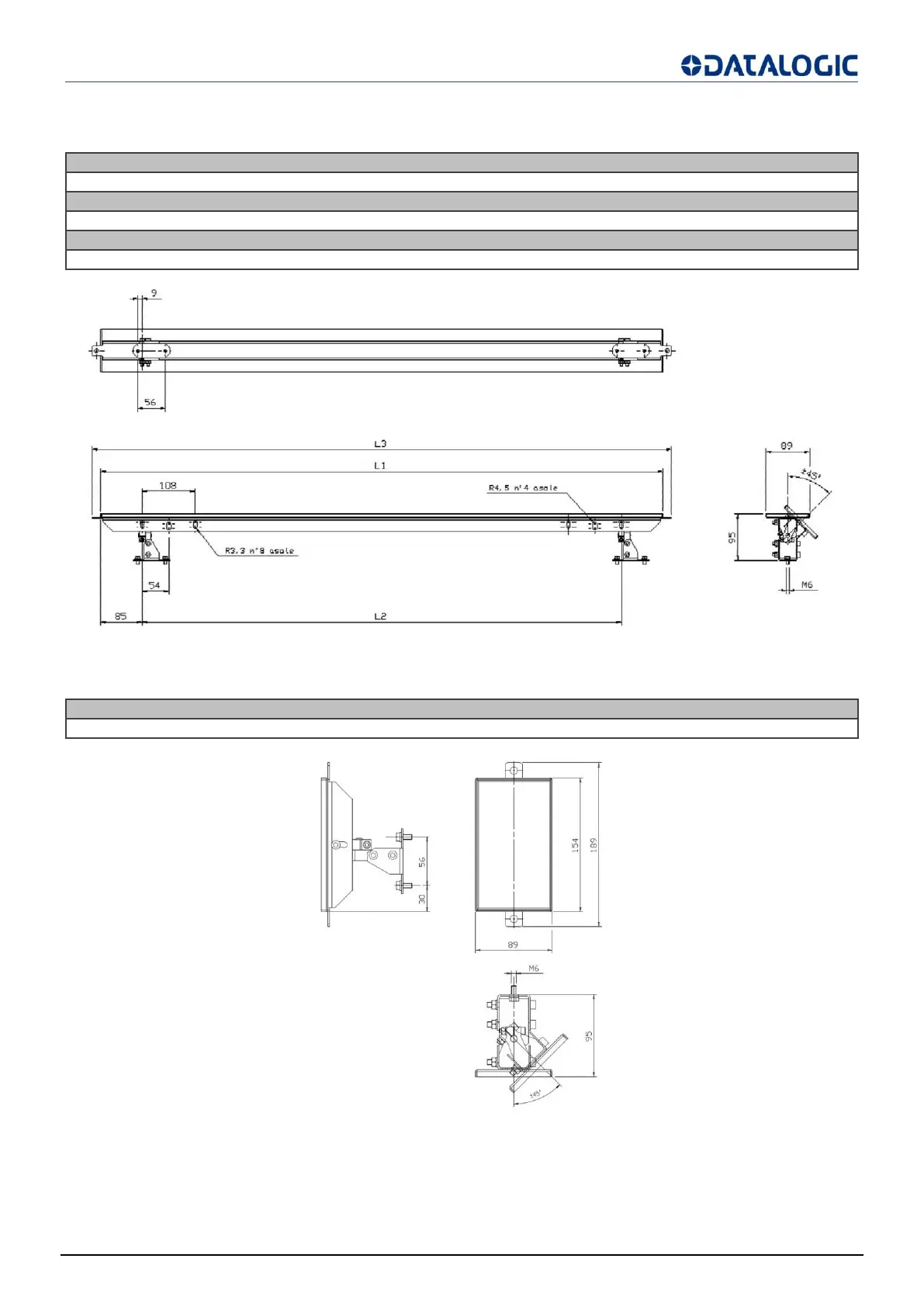

15.7 (SG-DM) DEVIATING MIRRORS
MODEL
DESCRIPTION
L1 (mm)
L2 (mm)
L3 (mm)
CODE
SG-DM 600
Deviating mirror version 600 mm
545
376
580
95ASE1680
SG-DM 900
Deviating mirror version 900 mm
845
676
880
95ASE1690
SG-DM 1200
Deviating mirror version 1200 mm
1145
976
1180
95ASE1700
SG-DM 1650
Deviating mirror version 1650 mm
1595
1426
1630
95ASE1710
SG-DM 1900
Deviating mirror version 1900 mm
1845
1676
1880
95ASE1720
Fig 60 - Dimensions ( mm)
The image includes the mirror SG-DM and a mounting kit ST-DM.
MODEL
DESCRIPTION
CODE
SG-DM 150
Deviating mirror version 150 mm
95ASE1670
Fig 61 - SG-DM 150 Dimensions (mm)
The image includes the mirror SG-DM and a mounting kit ST-DM.
