SG4 BASE
29/74

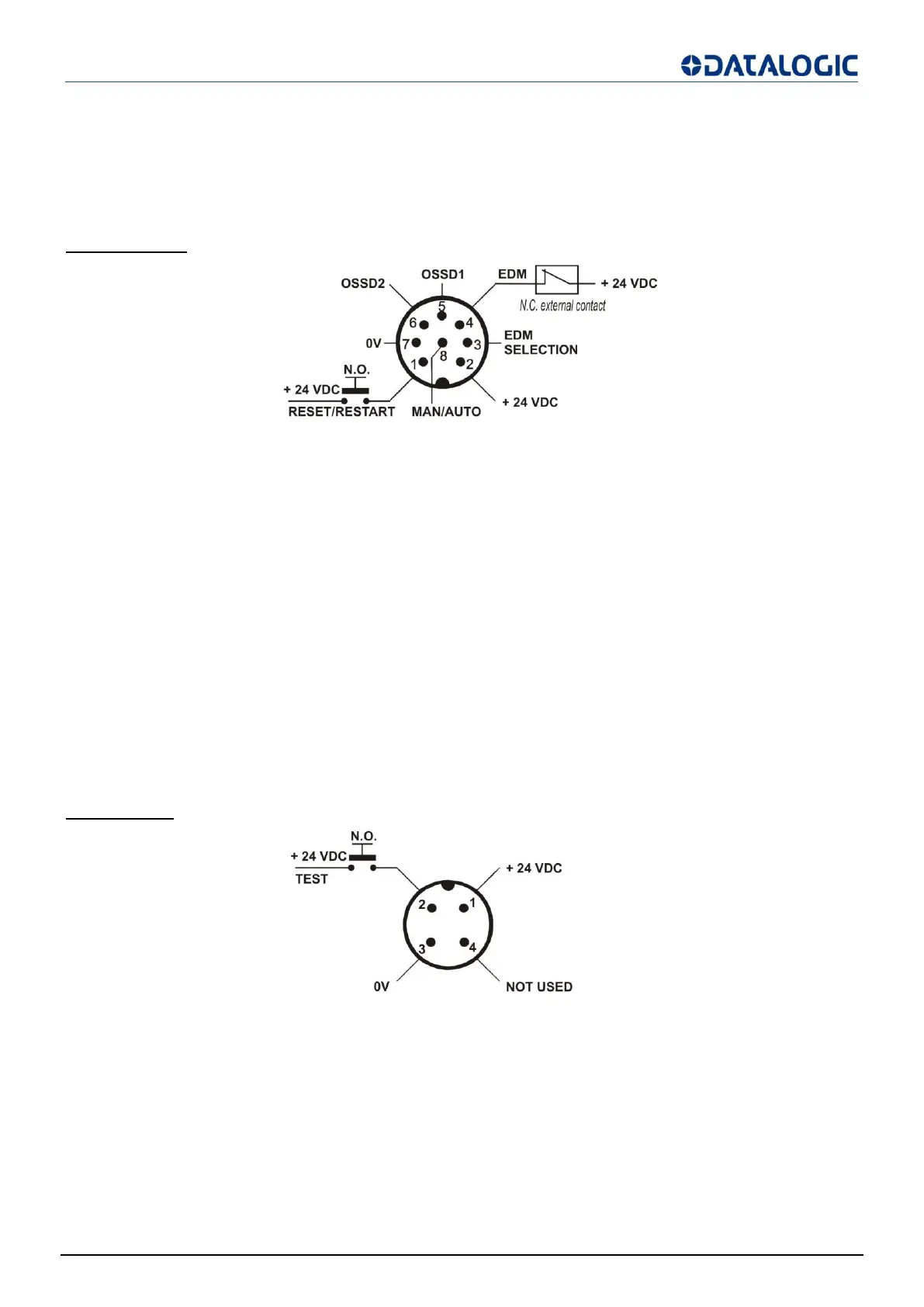

4.1.2 MODELS SG4-xx-xxx-OO-E
All electrical connections to the emitting and receiving units are made through a male M12 connector, located on
the lower part of the two units.
For receiver a M12 8-pole connector is used, while for emitter a M12 4-pole connector is used.
RECEIVER (RX):
Fig 27 - Receiver
1 =
white
= RESET/RESTART (*)
2 =
brown
= +24 VDC
3 =
green
= EDM SELECTION
4 =
yellow
= EDM
5 =
grey
= OSSD1
6 =
pink
= OSSD2
7 =
blue
= 0 V
8 =
red
= MANUAL/AUTOMATIC RESTART
(*) automatic RESTART --> RESET function
manual RESTART --> RESET / RESTART function
To set manual restart, connect Pin 8 (MAN/AUTO) with Pin 6 (OSSD2).
To set automatic restart, connect Pin 8 (MAN/AUTO) with Pin 5 (OSSD1).
To deactivate EDM function, connect Rx Pin 3 to 24VDC on Receiver.
EMITTER (TX):
Fig 28 - Emitter
1 =
brown
= +24 VDC
2 =
white
= TEST
3 =
blue
= 0 V
4 =
black
= NOT USED
