Datalogic SG4-30-015-OO-E User Manual

SG4 BASE
65/74

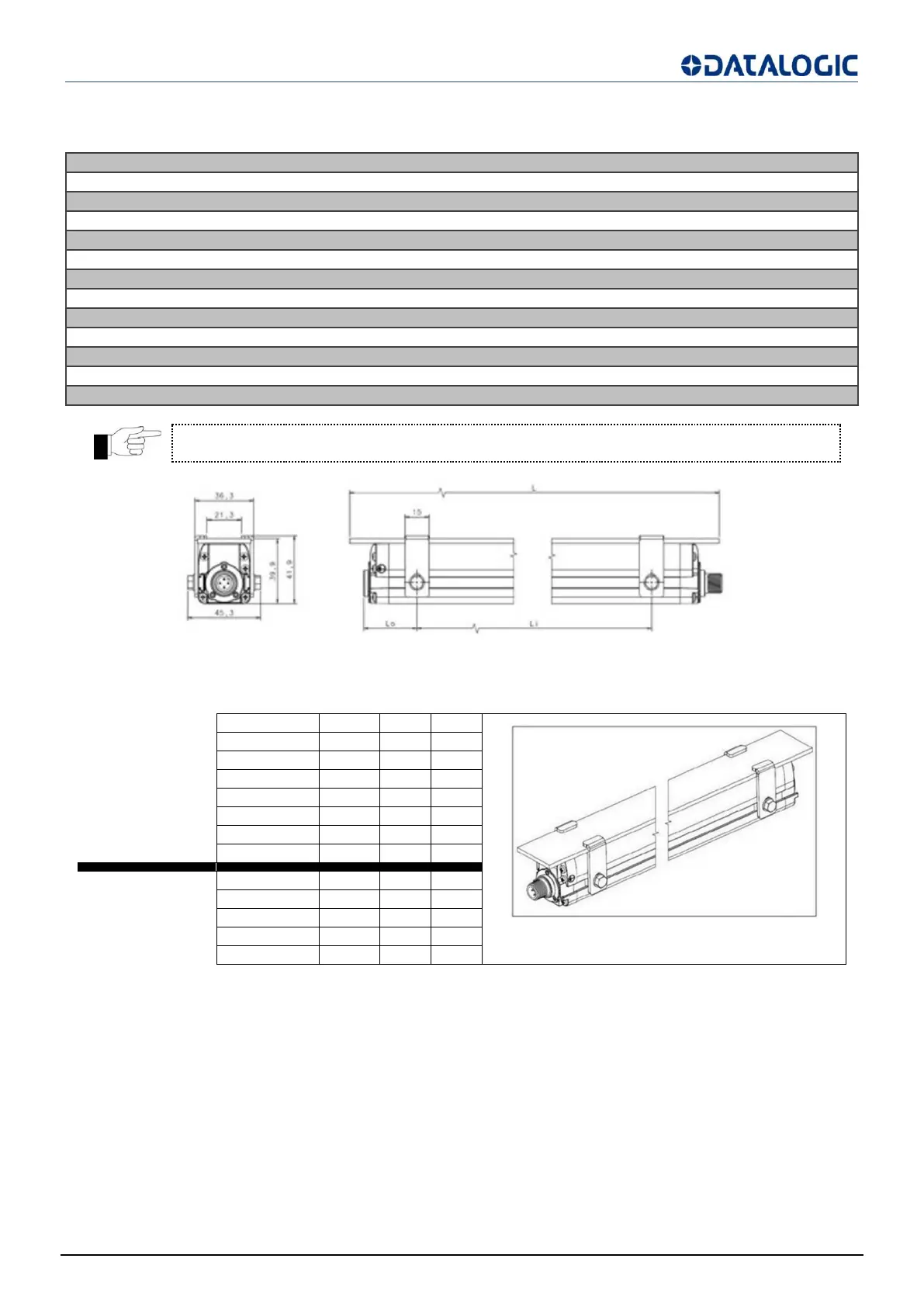

15.9 (SG-LS) PMMA LENS SHIELD
MODEL
DESCRIPTION
CODE
SG-LS 150
Lens shield H=150 mm (5 pcs)
95ASE1450
SG-LS 300
Lens shield H=300 mm (5 pcs)
95ASE1460
SG-LS 450
Lens shield H=450 mm (5 pcs)
95ASE1460
SG-LS 600
Lens shield H=600 mm (5 pcs)
95ASE1470
SG-LS 750
Lens shield H=750 mm (5 pcs)
95ASE1480
SG-LS 900
Lens shield H=900 mm (5 pcs)
95ASE1490
SG-LS 1050
Lens shield H=1050 mm (5 pcs)
95ASE1500
SG-LS 1200
Lens shield H=1200 mm (5 pcs)
95ASE1510
SG-LS 1350
Lens shield H=1350 mm (5 pcs)
95ASE1520
SG-LS 1500
Lens shield H=1500 mm (5 pcs)
95ASE1530
SG-LS 1650
Lens shield H=1650 mm (5 pcs)
95ASE1540
SG-LS 1800
Lens shield H=1800mm (5 pcs)
95ASE1560
Fig 66 - Dimensions (mm)
MODEL
L
Li
Lo
Fig 67 – Mounting kit
n°
2+2
bracket
015
245
160
30
030
392
345
45
045
540
400
60
060
686
520
75
075
832
590
115
090
980
640
175
105
1126
740
200
n°
3+3
bracket
120
1274
445
200
135
1422
520
200
150
1568
595
200
165
1715
670
200
180
1860
745
200
Each package contains what is necessary to protect a single unit (TX or RX ).
To protect both TX and RX , two pieces of the same code are needed.
