SG4 BASE
20/74
for ESPE Type 4 EAA = 5° (α = ± 2.5°)

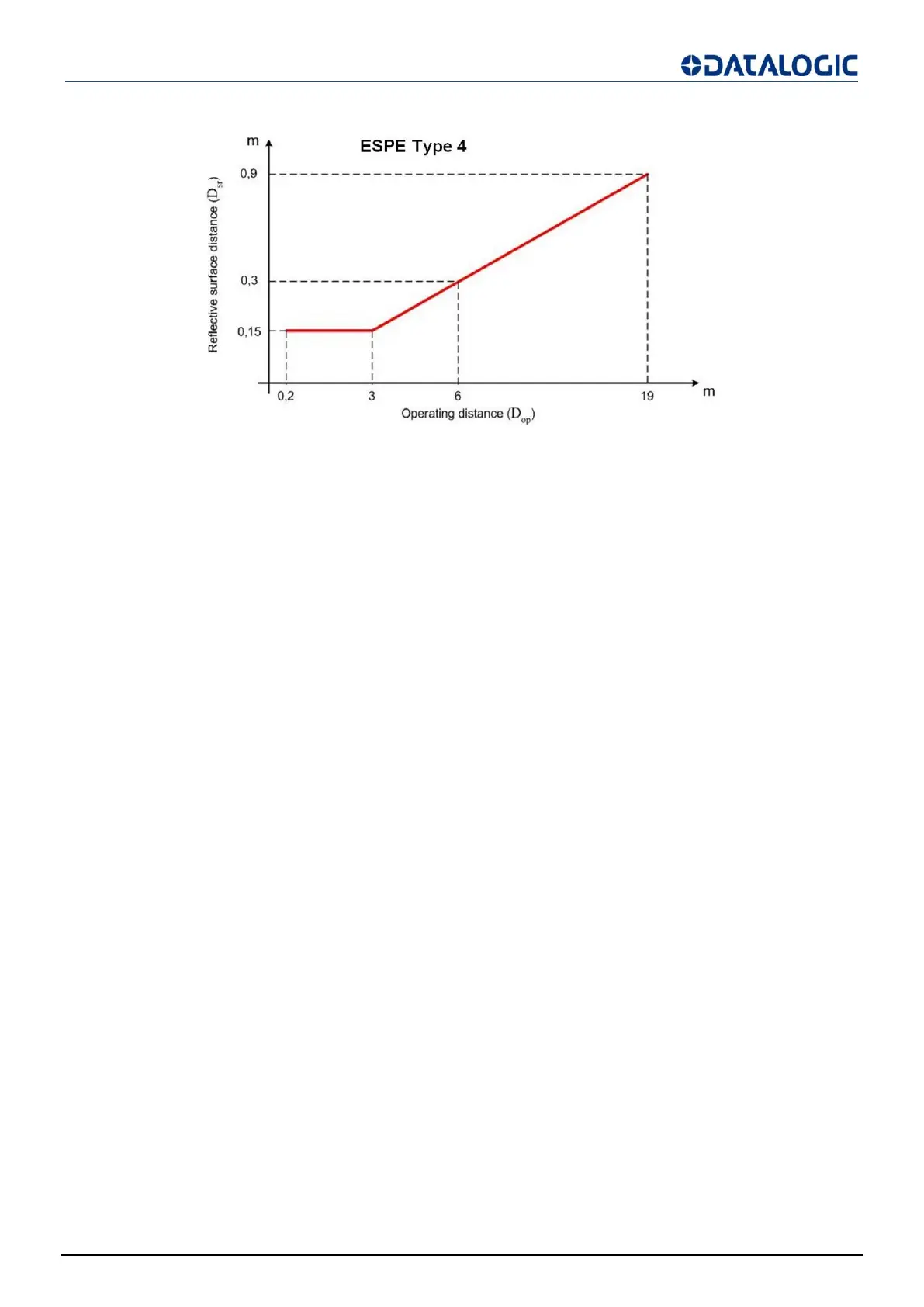

Fig 14 - Minimum distance from reflective surface
The formula to get Dsr is the following:
For ESPE Type 4:
Dsr (m) = 0.13 for operating distance < 3 m
Dsr (m) = 0.5 x operating distance (m) x tg 2a for operating distance >= 3 m
