Getting Started
User’s Manual
45

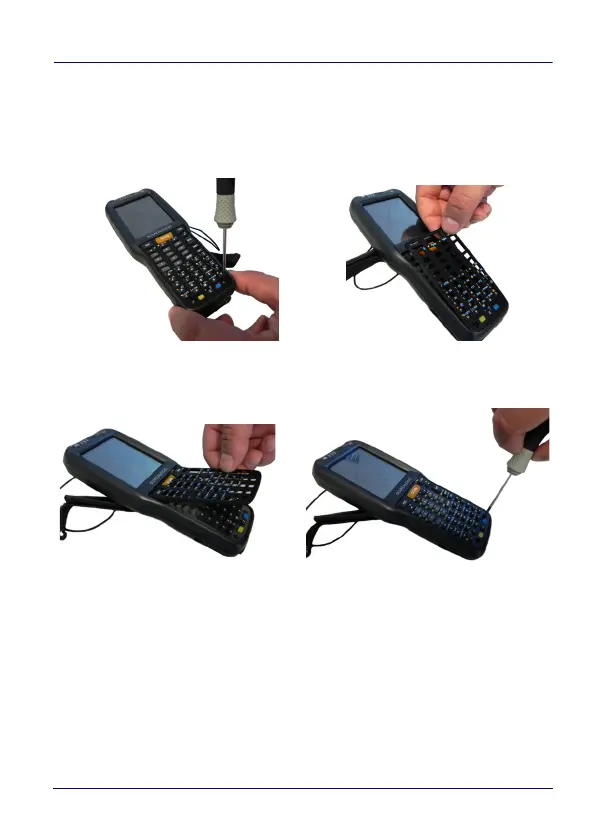

Insert the Terminal Emulation Overlay
To insert the te
rminal emulatio
n overlay, proceed as follows:
1.
Remove the overlay using a torx
*
screwdriver:
2.
Insert the terminal emulation ov
erlay (first the
upper side). Fi
x
the overlay with the
screwdriver:
*
Always use a torx screwdriver to prevent screw damage.
52
54
Table of Contents
Default Chapter
3
Table of Contents
3
Introduction
9
Conventions
9
Product Presentation
10
Available Models
11
Americas Models
11
Europe and Row Models
14
Out of the Box
17
General View
18
Front View
18
Back View
19
Top View
20
Bottom View
20
Accessories
21
Battery
25
Install the Battery
25
Charge the Battery
26
Charge with USB
26
Charge with the Single Slot Dock
27
Replace the Battery
29
SD Card
35
Install the Microsd Card
35
Getting Started
37
Power on
37
Desktop Window
38
Taskbar
39
Using the Stylus Pen
40
WEC7 Touch Screen Calibration
41
Keyboards
43
Full-Alphanumeric Keyboard (50 Keys)
43
Alphanumeric Keyboard (38 Keys)
45
Numeric Keyboard (28 Keys)
47
Functional Keyboard (28 Keys)
50
Insert the Terminal Emulation Overlay
53
Resetting the Terminal
54
Warm Boot
54
Clean Boot
55
LED Indicators
56
Settings
57
Control Panel
57
Data Capture Configuration
58
General Decoding Properties
59
Symbology Settings
66
Decoding Settings
68
WCU (Wireless Configuration Utility)
69
Create a New Profile
70
Edit a Profile
75
Delete a Profile
75
Connect to a Profile
76
Disconnect from a Profile
76
Browse Nearby Wireless Networks
77
Audio Settings
79
Audio
79
Volume & Sounds
80
Bluetooth® Manager Device Setup
81
Enable Bluetooth
81
Connect to Other Bluetooth® Devices
83
Configure or Unpair Bluetooth® Devices
87
Persistent Registry
88
Datalogic Applications
91
DL Buttons
91
Add a New Button
93
Triggers
94
Application Switcher
95
Desktop Configuration Utility (DXU)
96
How DXU Works
97
Installation
98
Controls
99
Simplified Deploy
105
Tasks
117
Configuring Surelock and Surefox
143
Command Line DXU Execution
146
Datalogic Desktop Utility
147
Administrative Options (Admin Tab)
148
Locked Web Browser Options (Lockedweb Tab)
152
Status Icons Options (Status Tab)
157
Windows Controls (Win Tab)
158
Appselector Options (Appselect Tab)
160
App Selector (Application Selector)
163
Locked Web Browser
164
Locked Web Browser Special Metatags
166
General Metatag Comments
166
PAL and PAL Communicator
171
Autostart
172
Installing CAB Files
172
How Autostart Uses Wceload
173
Interactive CAB Install
174
Autostart.ini
175
Tools
181
Windows Embedded Compact 7 SDK
181
Prerequisites
181
Data Capture
183
Imager 1D Data Capture
183
Imager 2D Data Capture
186
Connections
189
Windows Mobile® Device Center
189
USB Connection
191
USB Direct Connection
191
USB Handylink™ Connection
192
USB Dock Connection
193
Connection to USB Peripherals
194
RS232 Connection
196
RS232 Dock Connection
196
WLAN Connection
197
WPAN Connection
198
Wireless and Radio Frequencies Warnings
200
Technical Features
203
Technical Data
203
Decode Distances
208
Skorpio X4 Imager 1D Linear CCD
208
Skorpio X4 Imager 2D
209
Test Codes
211
Maintenance
219
Cleaning the Device
219
Dock Contacts Cleaning Procedure
219
Ergonomic Recommendations
222
Safety and Regulatory Information
223
General Safety Rules
223
Power Supply
224
Laser Safety
225
LED Class
233
Marking and European Economic Area (EEA)
233
Simplified EU Declaration of Conformity
234
Statement of Compliance
234
Information for the User
236
FCC/IC Labeling
237
FCC Compliance
237
ISED Compliance
239
Radiofrequency Radiation Exposure Information
241
Radio Technologies and Frequency Bands
242
Europe
242
US and Canada
243
WEEE Compliance
244
Reference Documentation
247
Support through the Website
247
Technical Support through Email or Phone
247
Warranty Terms and Conditions
247
Glossary
249
