Connections
188 Skorpio™ X4

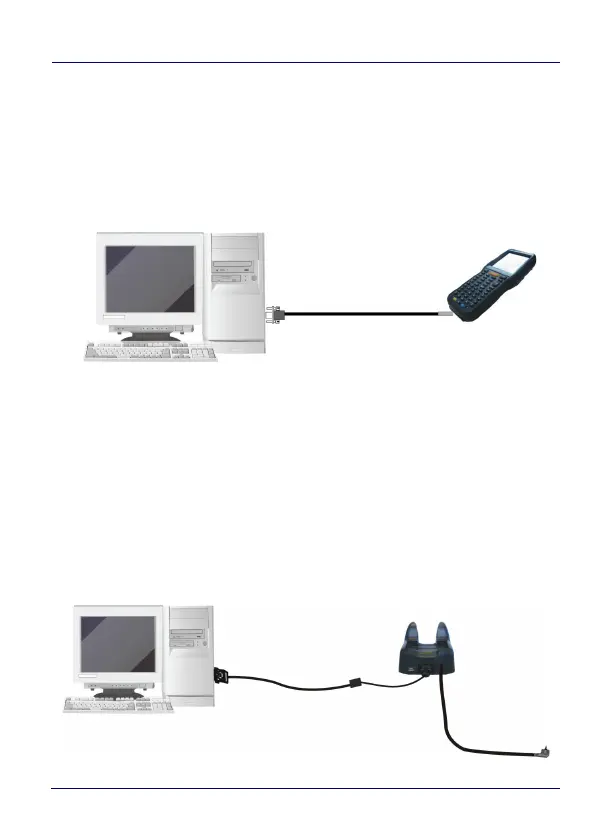

RS232 Connection
You can use the Datalogic 94A051972 cable to directly connect the
Skorpio X4 to a host computer to transfer data through the RS232
interface.
RS232 Dock Connection
The Single Slot Dock can be connected to the Host by means of a
standard null modem cable such as Datalogic 94A051020 CAB-427
for 9-pin connections.
Once the host computer has been turned on, insert the Skorpio X4
mobile computer into the cradle.
Host Computer
Skorpio X4
94A051972 HandyLink
Micro RS232 Client Cable
Host Computer
Skorpio X4 Single Slot Dock
94A051020 CAB-427
RS232 Null Modem Cable
Power
Supply
