68 H-Class
Diagnostics (continued)
Menu Item Details
TEST GPIO
Tests the Applicator Interface Card’s GPIO function,
where:
MONITOR GPIO INPUT
SOP FEED PAUSE REPRT
1 1 1 1
i1 i2 i3 i4 i5 i6
1 0 1 1 1 1
Displays input signal logic values for Start of Print
(SOP), Feed, Pause, Reprint, and six unassigned input
lines. (The values given here are examples only.)
;
Unconnected lines may display a zero or one.
TEST GPIO OUTPUT
EP RL SR MO RO DR OF
1 0 1 1 1 1 1
o1 o2 o3 o4 o5 o6
1 0 1 1 1 1
Displays output signal logic values for End of Print
(EP), Ribbon Low (RL), Service Required (SR), Media
Out (MO), Ribbon Out (RO), Data Ready (DR), Option
Fault (OF), and six unassigned output lines. (The
values given here are examples only.)
;
To change an output signal, cursor over the
displayed state to select and then toggle it, except
Data Ready which cannot be toggled.

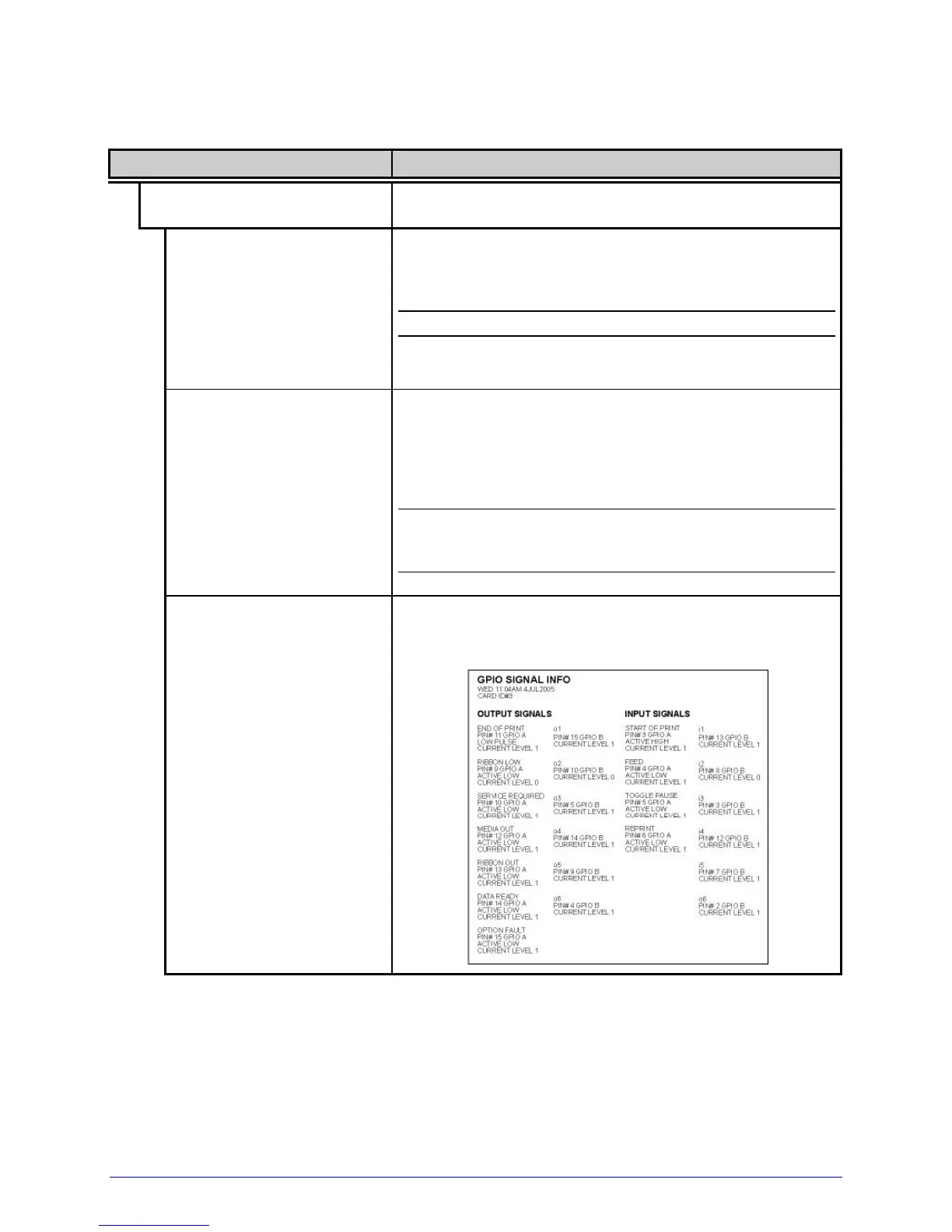

PRINT SIGNAL INFO
Prints a reference label (see sample below) containing
GPIO signal names, pin and port assignments,
programmed settings, and current signal states.
