5.4.2 Printhead Pressure Adjustment
Printhead Pressure Adjustment should only be performed after attempting to improve print
quality through the use of other print quality controls (see Section 7.4).
A. With media loaded, download your label format (or use a Test Menu format) then begin
printing a small batch of labels.

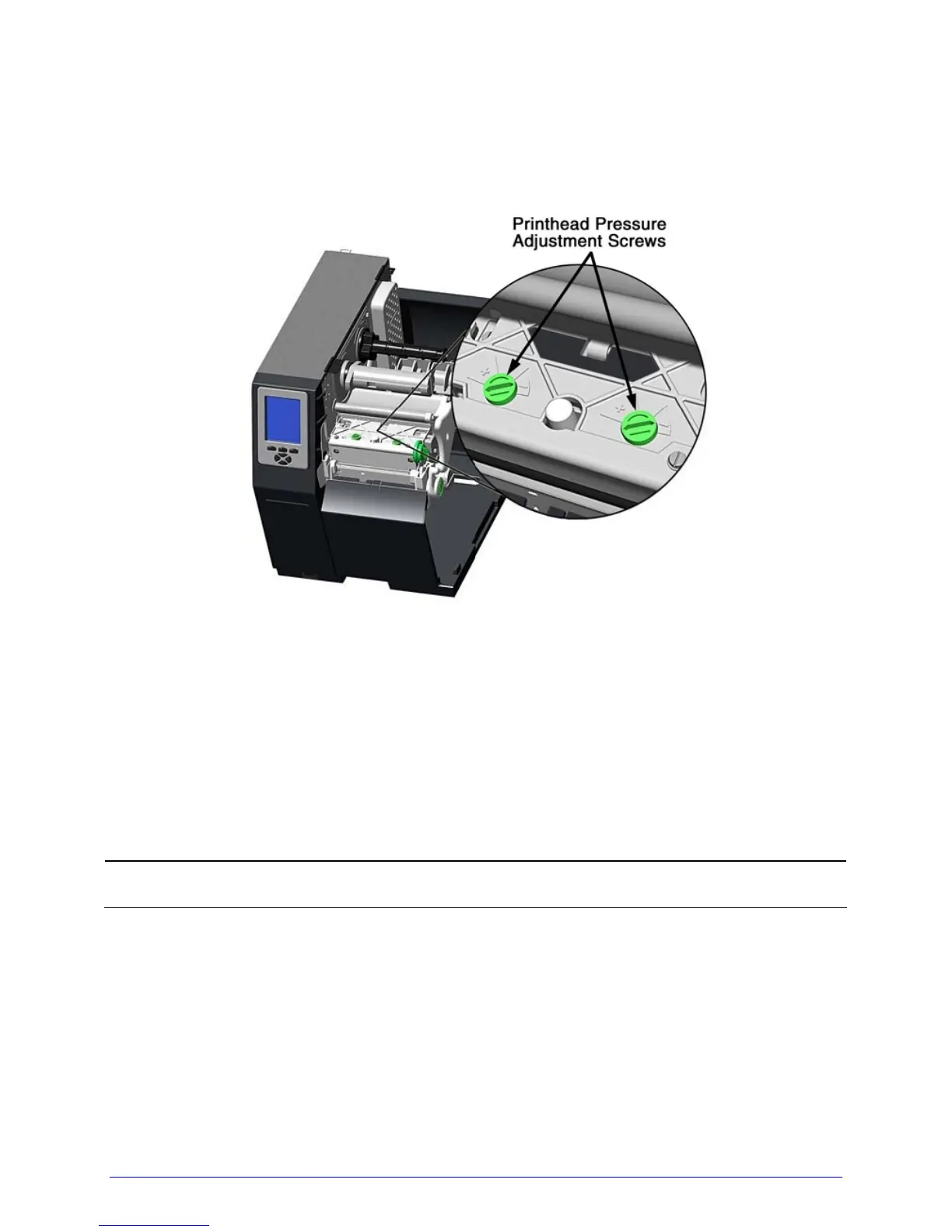

B. While observing the printed output, turn each Pressure Adjustment Screw (use a small
coin or screwdriver) by the same amount until the image is complete, with even
contrast:
• Counterclockwise (+) to increase applied pressure, or;
• Clockwise (-) to decrease applied pressure.
;
Ensure that each arrow points in the same direction.
