Datamax H-4212X

H-Class 13
3
Setting up the Printer
3.1 Media Loading
Load media according to its type and source, after performing these prerequisites:
A. Raise the cover.

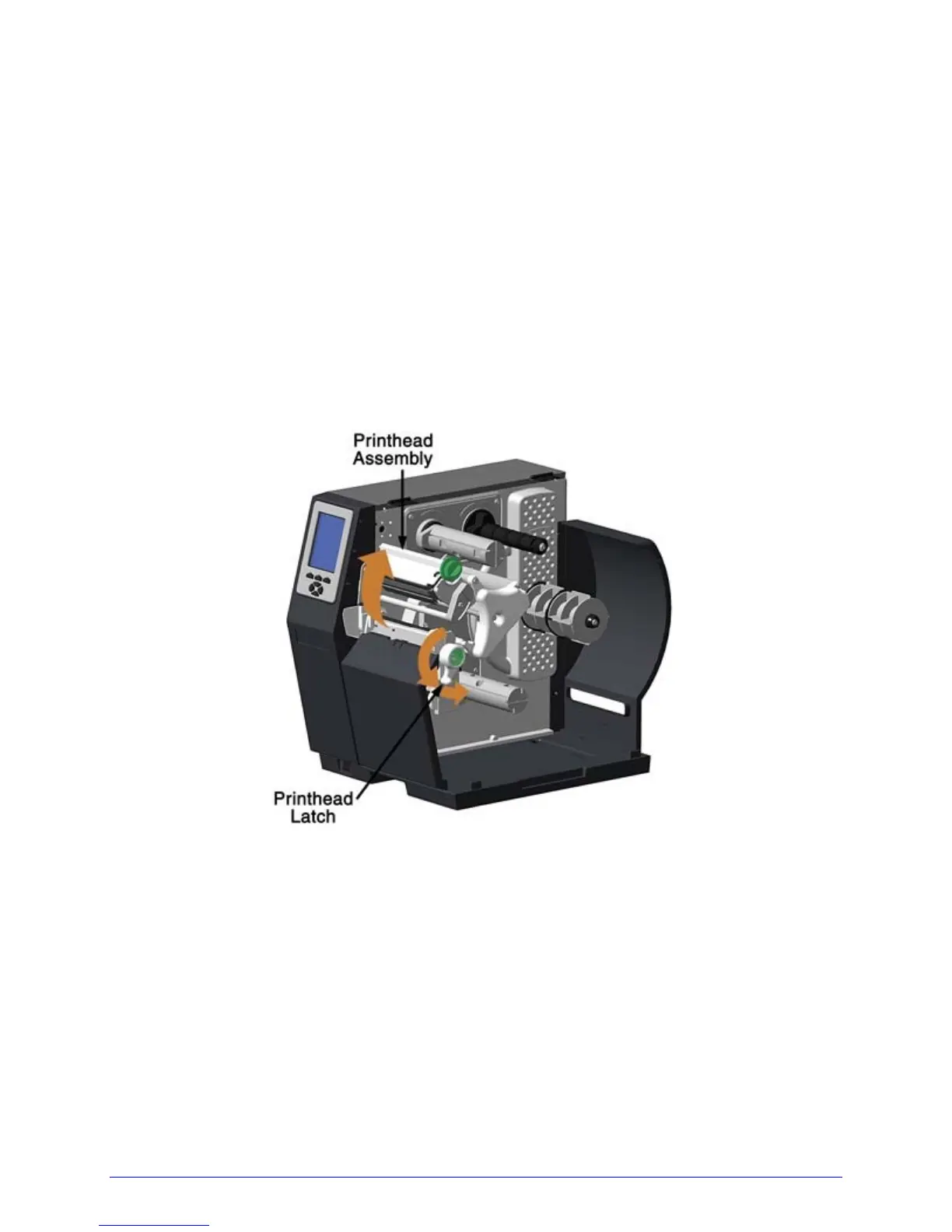

B. Rotate the Printhead Latch counterclockwise then raise the Printhead Assembly.
